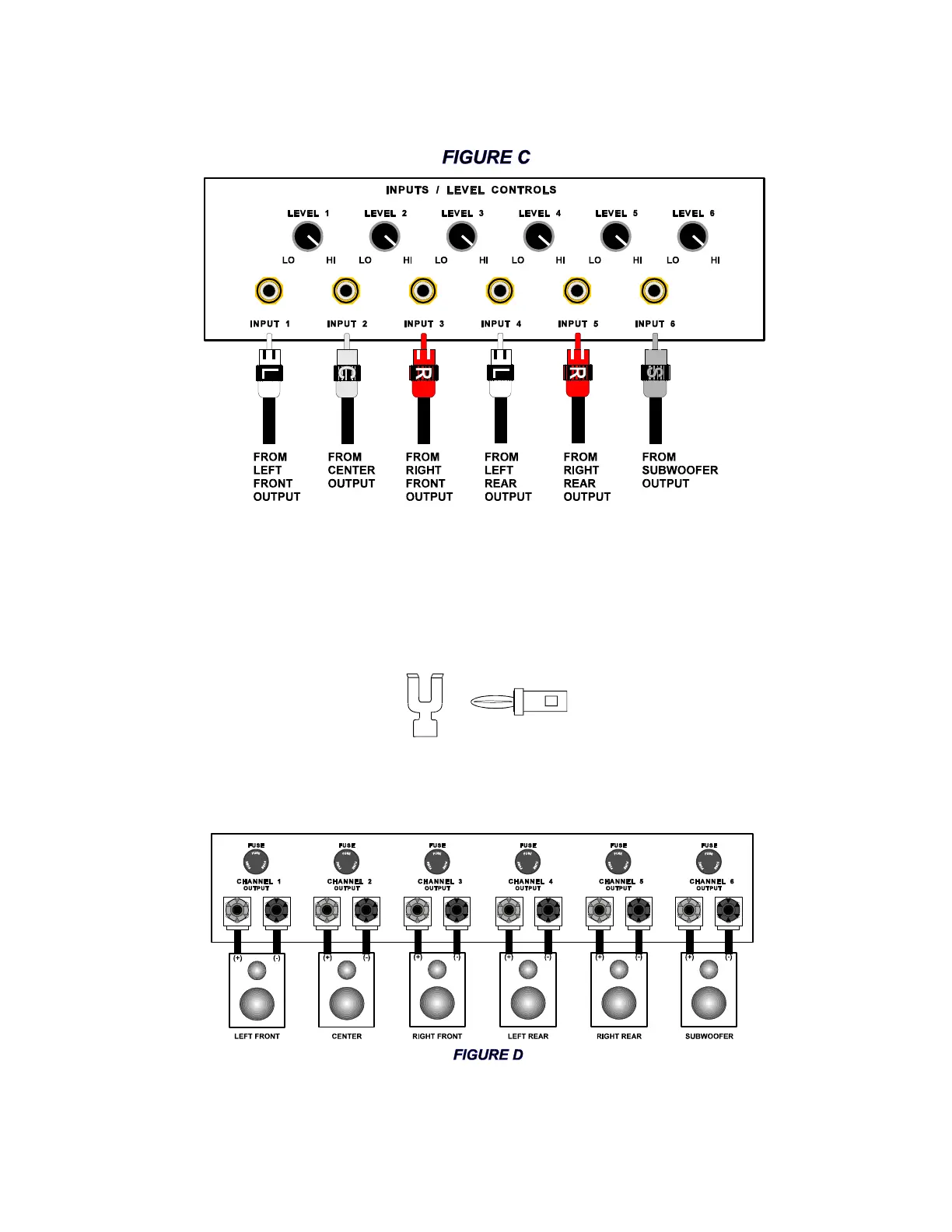

Here is a typical preamplifier to amplifier setup:
Outputs
Five way binding posts are provided. One pair for each channel. They are designed to
accept a banana-type plug or spade lug connector (shown below) and are color coded for
easy identification. The positive (+) post should always be connected to the speakers (+)
jack. The negative (-) post should always be connected to the speakers (-) jack.
Spade connector Banana jack
Here is a typical amplifier output setup:
Page 6 P/N 13007 Rev.0004
