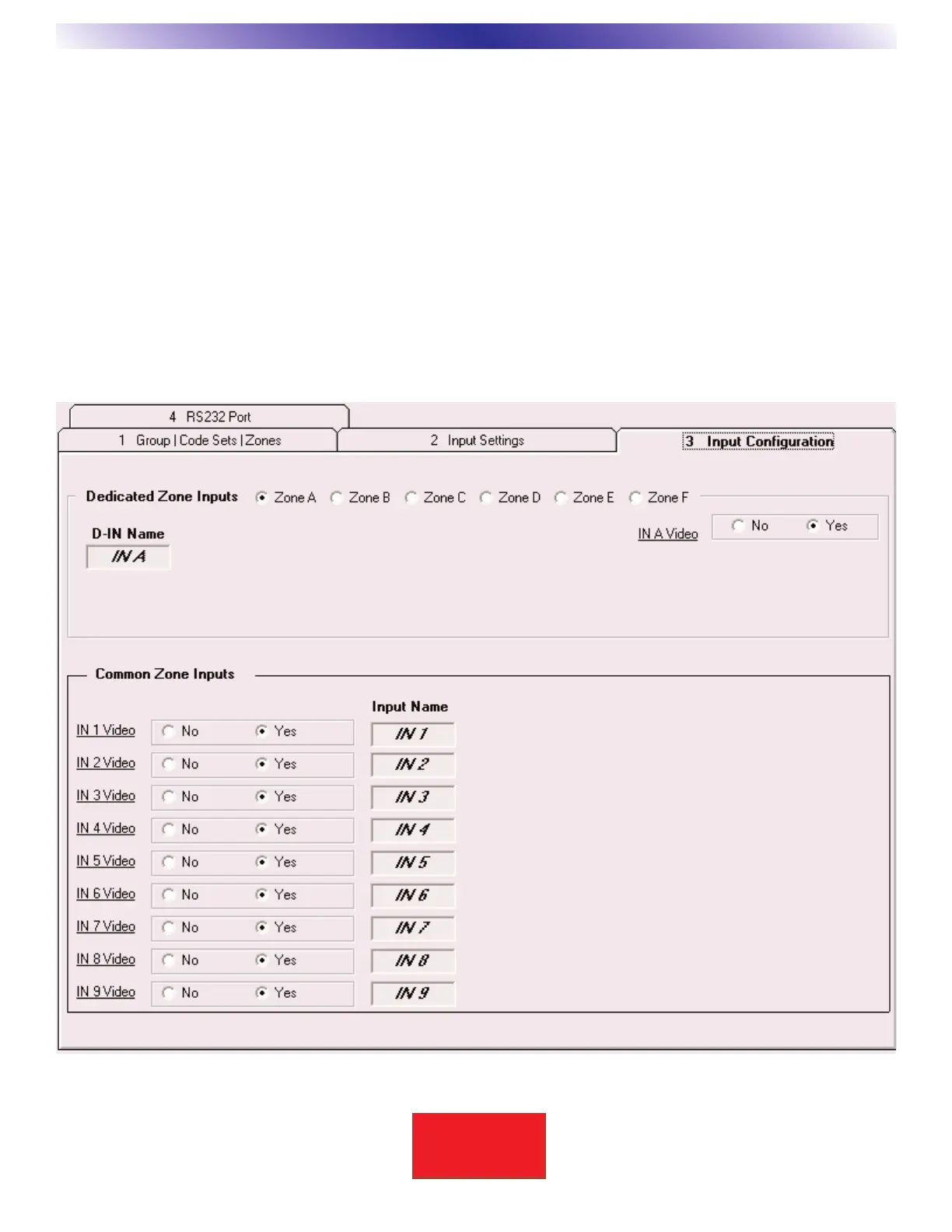

BKcSuite Input Configuration Setup
1. Dedicated Zone Input:
Hardware Zones A - F have a dedicated video input source. Each dedicated video input is available for use in
the system when it is set to Yes. All dedicated video inputs are set to Yes in a default configuration.
Set to No when there is no video source to be connected to this zone’s dedicated input.
2. Common Zone Inputs:
Hardware Zones A - F have have nine common video input sources. Each video input is available for use in the
system when it is set to Yes. All common video inputs are set to Yes in a default configuration.
The HD6 will use the last selected video when the video input is set to No.
