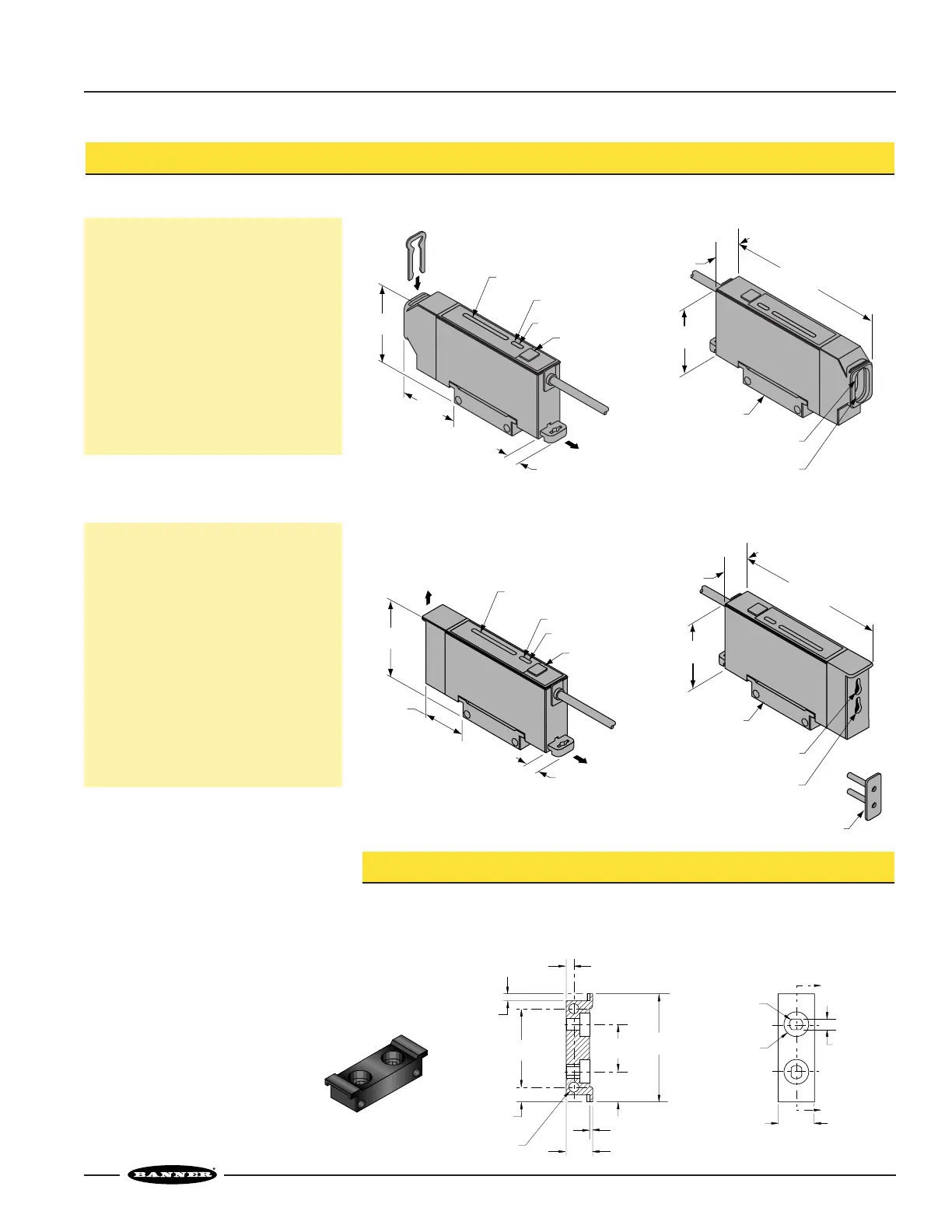

D12 Expert Dimensions
D12 Expert Series – Glass Fiber Optic Models
20.2 mm
(0.79")
35.5 mm
(1.40")
Fiber-retaining Clip
(Supplied with Sensor)
7-Segment Display
Output Indicator
Power Indicator
Push Button
Pull to Relase
Bracket
5.0 mm
(0.20")
Glass Fiber Receiver Port
Glass Fiber Emitter Port
Mounting Bracket
(Included)
12.0 mm
(0.47")
30.0 mm
(1.18")
64.4 mm
(2.52")
D12 Expert Series – Plastic Fiber Optic Models
20.2 mm
(0.79")
35.5 mm
(1.40")
Fiber Gripper –
Slide Up
to Install or
Release Fibers
7-Segment Display
Output Indicator
Power Indicator
Push Button
Pull to Relase
Bracket
5.0 mm
(0.20")
Plastic Fiber Receiver Port
Plastic Fiber Emitter Port
Mounting Bracket
(Included)
Small Fiber
Adapter
12.0 mm
(0.47")
30.0 mm
(1.18")
64.4 mm
(2.52")
Plastic Fiber Installation:
A. Cut fiber ends per instructions
included with the fibers. Slide the
fiber gripper up (open). (For .010"
or .020" dia. fibers, insert the small
fiber adaptor into the ports as far as
it will go.)
B. Insert the prepared plastic fiber
sensor ends gently into the ports as
far as they will go.
C. Slide the fiber gripper back down to
lock.
Glass Fiber Installation:
A. Slide the sensor ends of the fiber(s)
into the D12 Expert fiber ports as far
as they will go.
B. Push firmly on the fiber ends to
compress the o-rings (supplied with
the fibers) and to align the grooves
in the fiber ends with the slot above
the emitter port. Slide the retaining
clip into the slot and press the clip
until it snaps into the grooves.
Mounting Bracket
D12E Sensors mount directly to a standard 35mm DIN rail, or may be through-hole
mounted using the supplied mounting bracket and M3 x 0.5 hardware.
Section A-A
A
A
2.5 mm
(0.10")
2.3 mm
(0.09")
24.5 mm
(1.00")
4.8 mm
(0.19")
ø 3.25 mm (2)
(0.128")
8.6 mm
(0.34")
11.9 mm
(0.47")
0.94 mm
(0.037")
3.45 mm (2)
(0.136")
15.2 mm
(0.60")
35.0 mm
(1.38")
9.9 mm
(0.39")
ø 4.45 mm (2)
(0.175")
ø 7.9 mm x 3.0 mm
deep (2)
(0.31" x 0.12")
