Banner Q45 - Apply Power to Wireless Q45 Sensors; Bind Wireless Q45 Sensors to Gateway; Verify Radio Communication; Test Wireless Q45 Sensor Operation

2

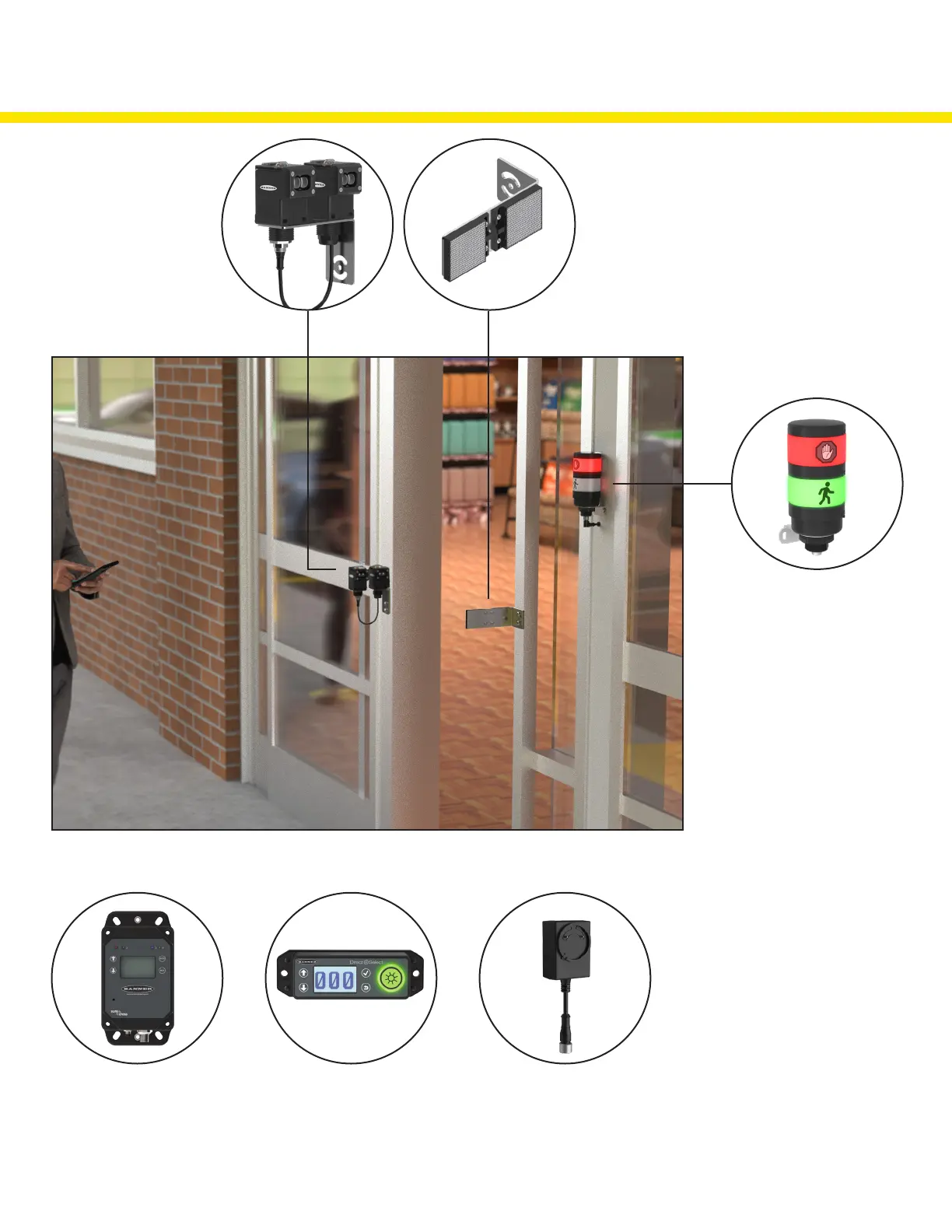

Kit Contents
Not Included
1/4”-20 mounting fasteners
TL70 Wireless Indicator
includes bracket and power
supply
Q45 Sensor Pair
includes AA batteries
DXM Controller
Not Shown – mounted inside building
Direct Select Operator Interface
includes C battery
Power Supply
Reflector Pair
pre-mounted on bracket
Tools Needed
Tape measure
Phillips screwdriver
