Banner Q45 Setup Guide

6

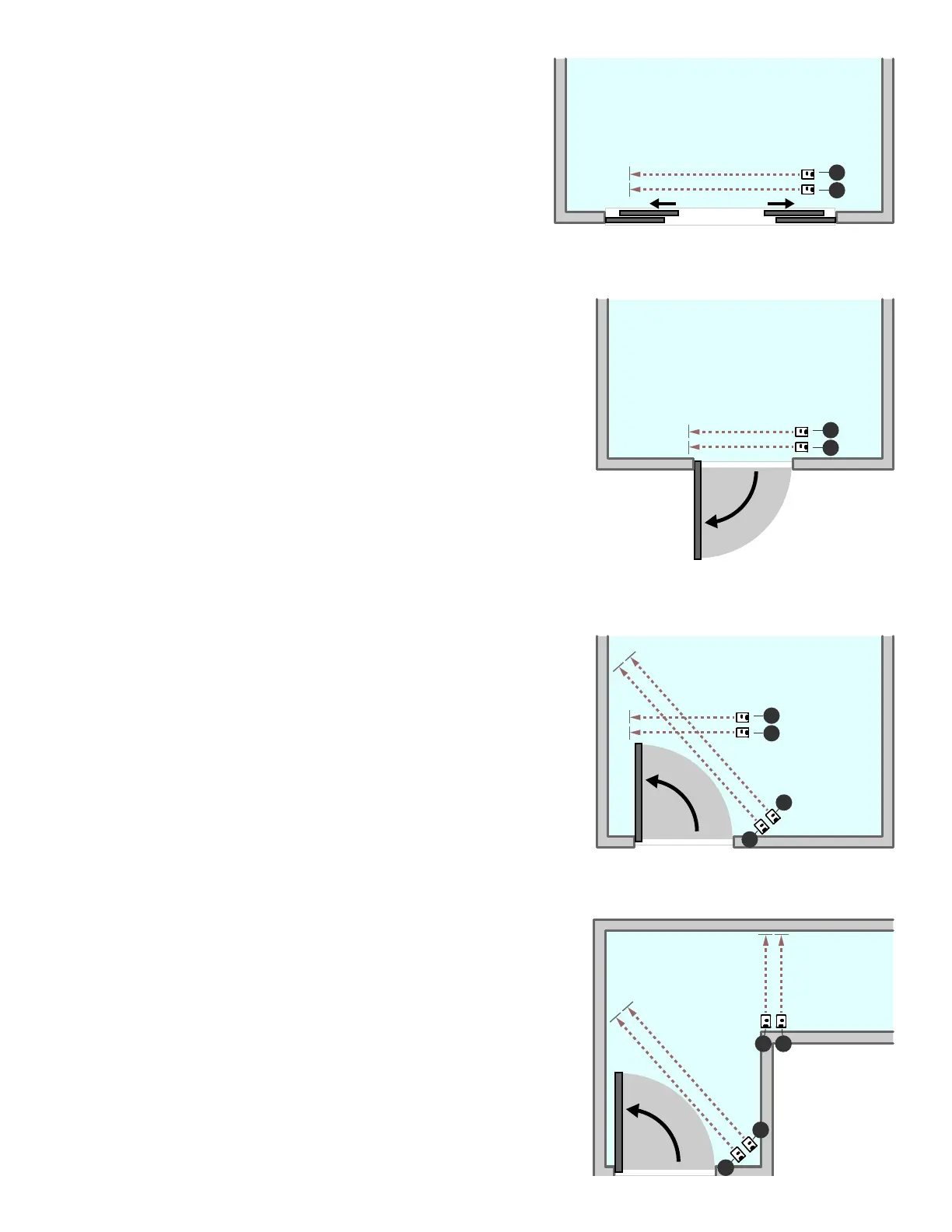

L-type Doors
For occupancy monitoring in areas with an L-type door configuration, Banner
recommends mounting the devices on the inside of the door so that the door does
not activate the sensors when it is opened.
Two mounting options are shown: I and II. Mounting I is preferred to keep the sensors
and reflectors from obstructing the area. Mounting II is possible when no other
mounting is available.
Avoid mounting the sensors in areas where people will stand and block the sensors.
Outward Opening Doors
For occupancy monitoring in areas with outward opening doors, Banner recommends
mounting the devices on the inside of the door as close as possible to the door.
Avoid mounting the sensors in areas where people will stand and block the sensors.
Inward Opening Doors
For occupancy monitoring in areas with inward opening doors, Banner recommends
mounting the devices on the inside of the door, far enough from the door that the
door does not trip the sensor pair when opening.
Two mounting options are shown: I and II. Mounting I is preferred to keep the sensors
and reflectors from obstructing the area. Mounting II is possible when no other
mounting options are available.
Avoid mounting the sensors in areas where people will stand and block the sensors.
Banner recommends using accessory mounting stands if a rigid mounting surface is
not available.
Sliding Doors
For occupancy monitoring in areas with sliding doors, Banner recommends
mounting the devices on the inside of the door as close as possible to the door.
Avoid mounting the sensors in areas where people will stand and may block the
sensors.
A
B
A
B
A
B
A
B
I
II
A
B
A
B
I
II
Disclaimer: Do not place in an area where the sensor pairs may be blocked by people or objects.
