Banner R55FVQ User Manual

R55F Series Fiber-Optic Color Mark Sensors

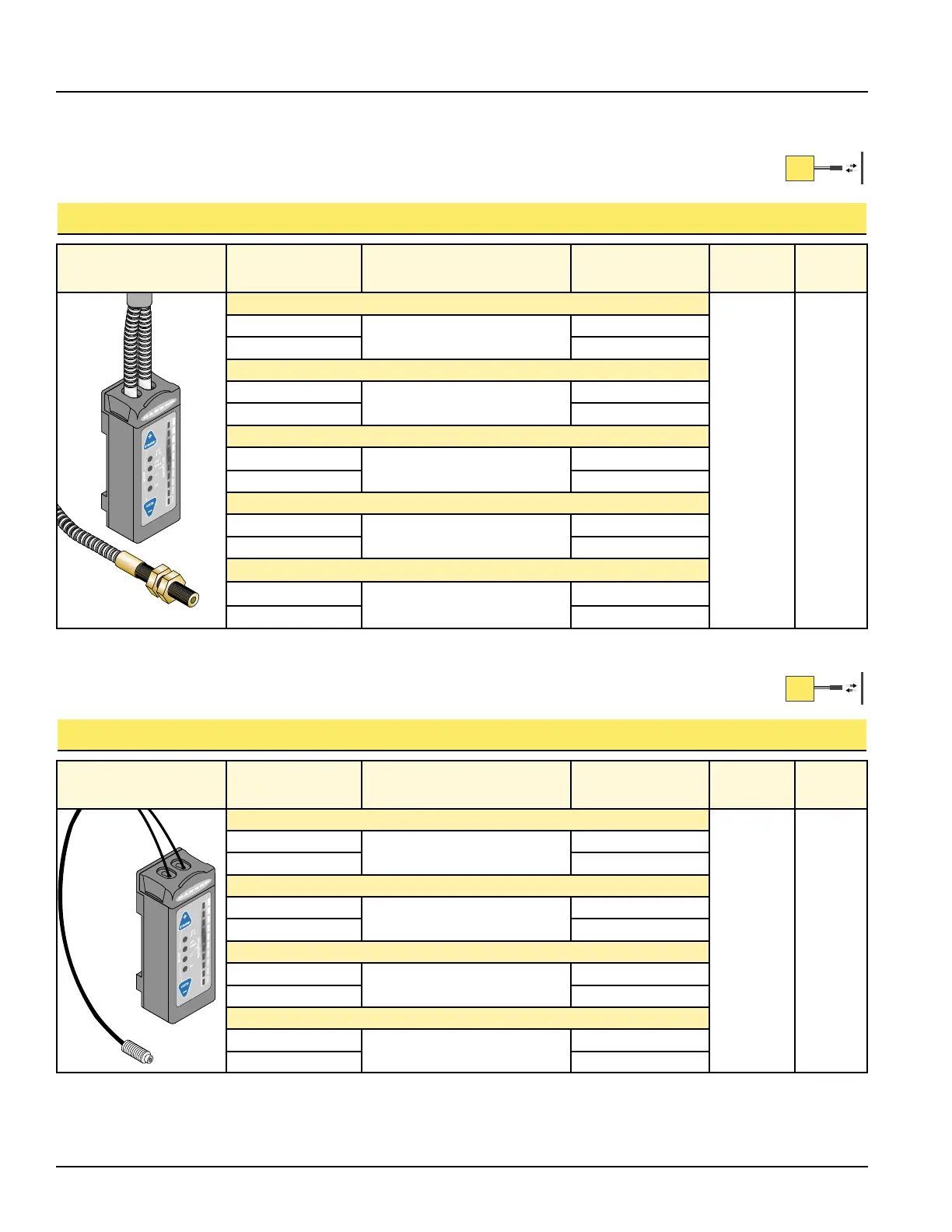

R55F Series Glass Fiber-Optic Sensor Models
R55F Series Plastic Fiber-Optic Sensor Models
* 9m (30') cables are available by adding suffix “W/30” to the model number of any cabled sensor (e.g., R55FV W/30). A model with a QD
connector requires a mating cable (see page 11).
Advantages of glass fiber optics for color mark sensing:
• Randomly mixed bifurcated fiber bundles produce the best optics for color mark sensing.
• Bundle of small fibers may be shaped at sensing end tip to match the color mark shape.
• Best chemical resistance.
Visible Red, 650 nm
Visible Green, 525 nm
Visible Blue, 475 nm
Visible White, 450-650 nm
Infrared, 880 nm
Visible Red, 650 nm
Visible Green, 525 nm
Visible Blue, 475 nm
Visible White, 450-650 nm
Advantages of plastic fiber optics for color mark sensing:
• Plastic fibers may be repeatedly flexed.
• Low cost.
• Most models may be cut to fit in the field.
Model
Number
Maximum Sensing Distance
For black-to-white contrast
Cable*
Supply
Voltage
Output
Type
Visible Red, 650 nm
10 to 30V dc
Bipolar
NPN/PNP
R55FP
0.040" dia. Fibers: 60 mm (2.4")
5-wire 2 m (6.5') cable
R55FPQ 5-pin Euro-style QD
Visible Green, 525 nm
R55FPG
0.040" dia. Fibers: 28 mm (1.1")
5-wire 2 m (6.5') cable
R55FPGQ 5-pin Euro-style QD
Visible Blue, 475 nm
R55FPB
0.040" dia. Fibers: 28 mm (1.1")
5-wire 2 m (6.5') cable
R55FPBQ 5-pin Euro-style QD
Visible White, 450 - 650 nm
R55FPW
0.040" dia. Fibers: 28 mm (1.1")
5-wire 2 m (6.5') cable
R55FPWQ 5-pin Euro-style QD
Model
Number
Maximum Sensing Distance
For black-to-white contrast
Cable*
Supply
Voltage
Output
Type
Visible Red, 650 nm
10 to 30V dc
Bipolar
NPN/PNP
R55FV
0.060" dia. Bundle: 28 mm (1.1")
0.125" dia. Bundle: 110 mm (4.3")
5-wire 2 m (6.5') cable
R55FVQ 5-pin Euro-style QD
Visible Green, 525 nm
R55FVG
0.060" dia. Bundle: 12 mm (0.5")
0.125" dia. Bundle: 50 mm (2.0")
5-wire 2 m (6.5') cable
R55FVGQ 5-pin Euro-style QD
Visible Blue, 475 nm
R55FVB
0.060" dia. Bundle: 12 mm (0.5")
0.125" dia. Bundle: 50 mm (2.0")
5-wire 2 m (6.5') cable
R55FVBQ 5-pin Euro-style QD
Visible White, 450 - 650 nm
R55FVW
0.060" dia. Bundle: 12 mm (0.5")
0.125" dia. Bundle: 50 mm (2.0")
5-wire 2 m (6.5') cable
R55FVWQ 5-pin Euro-style QD
Infrared, 880 nm
R55F
0.060" dia. Bundle: 40 mm (1.6")
0.125" dia. Bundle: 140 mm (5.5")
5-wire 2 m (6.5') cable
R55FQ 5-pin Euro-style QD
