Bante900P Portable Multiparameter Water Quality Meter
4

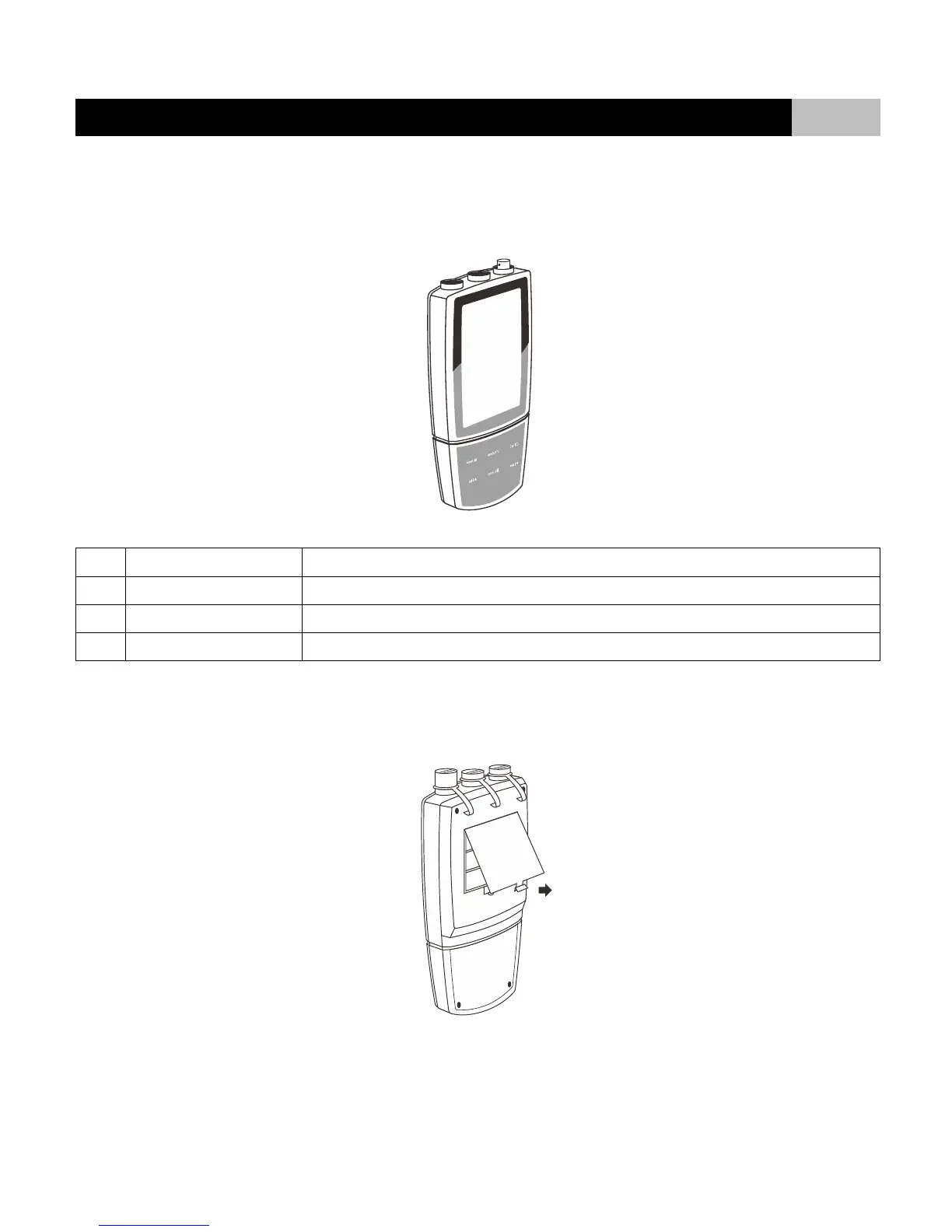

Connectors
Bante900P portable meter provides 3 connectors for connecting the various types of sensors. Listed in the below table are the details of these connectors.
INDEX:
NO.
CONNECTOR
FUNCTION
1
BNC Connector
For connecting the pH, ORP or Ion Selective Electrodes
2
Phone Jack
For connecting the temperature probe
3
6-pin Connector
For connecting the conductivity electrode or dissolved oxygen probe
Inserting the Batteries
Before using the meter, insert three 1.5V “AA” alkaline batteries into battery compartment, follow the procedure outlined below.
1. Remove the battery cover from meter’s backside.
2. Insert the batteries into the battery compartment, note polarity.
3. Replace the battery cover into its original position. Installation is completed.
 When batteries are depleted, the meter allows you to use the USB cable connected to computer as a temporarily power supply.
2
1
3
