4.2 LCD Display of the radio

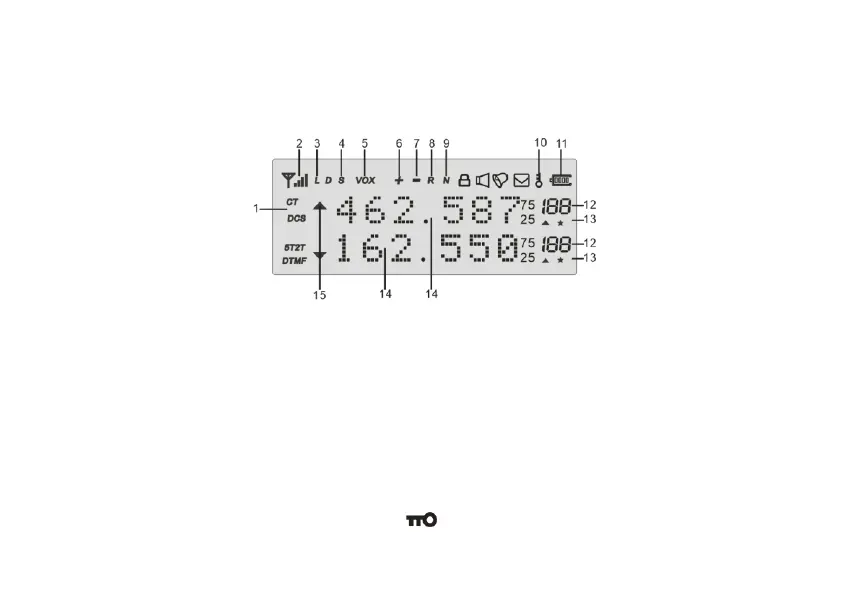

LCD Display
1. These symbols show that you set a DCS or CTCSS code in tx or rx. In tx mode it appears while you are transmitting, while in
rx mode it is shown also in stand-by condition.
2. Received signal strength.
3. Low power selection
4. This letter is displayed when the Dual Watch function is active.
5. VOX function enabled.
6. Appears when a positive shift is activated.
7. Appears when a negative shift is enabled.
8. Reverse frequency
9. Narrow bandwidth: N = narrow. When the wide (W) bandwidth is activated, no icon is displayed.
10. This icon indicates the keypad lock. To unlock it press [# ] .
