USER'S MANUAL
UNPACKING AND CHECKING EQUIPMENTS:
Carefully unpack the transceiver. We recommend that you identify the items listed in
the following before discarding the packing material. If any items are missing or have
been damaged during shipment, please contact your dealers immediately.
g/ =
Batery Pack Anterma Adapter Dropein Gharging Tray
BolCip Handstrap
Note:
Items included in the package, may differ from those listed in the table above depending on the
country of purchase. For more information, consult your dealer or vendor.
OPTIONAL ACCESSORIES:
&~ B &
Power Cord Lapel Spoater Microphone Program Cable Earbud Microphone.
Note:
Consult the dealer or retailer for information about options available:
01
USER'S MANUAL

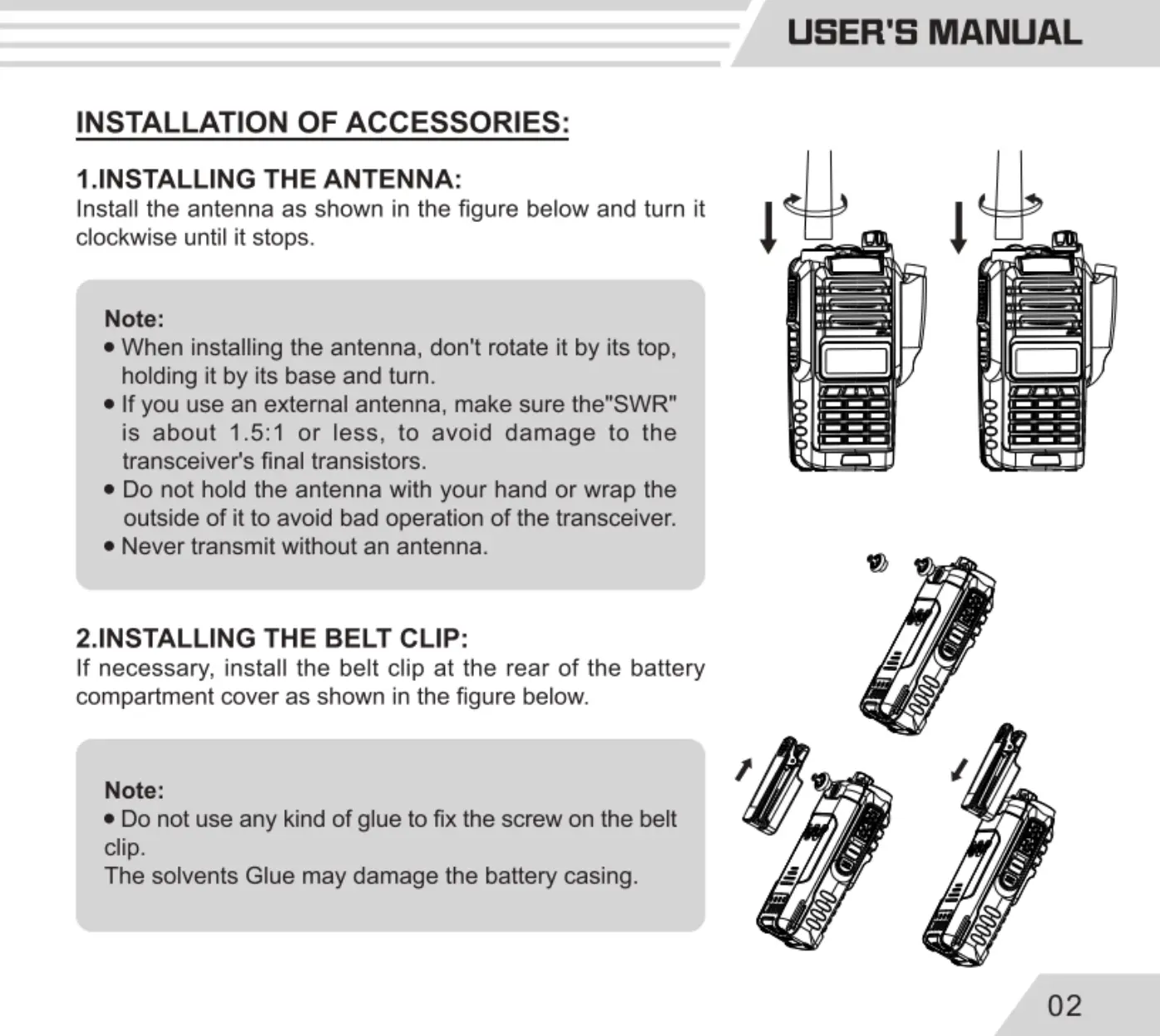

INSTALLATION OF ACCESSORIES:
1.INSTALLING THE ANTENNA:
Install the antenna as shown in the figure below and turn it
clockwise until it stops 1 1
Note:
When installing the antenna, don't rotate it by its top, - C
holding it by its base and turn.
o If you use an external antenna, make sure the"SWR"
is about 1.5:1 or less, to avoid damage to the
transceiver's final transistors. NE—ul
Do not hold the antenna with your hand or wrap the
outside of it to avoid bad operation of the transceiver.
© Never transmit without an antenna.
2.INSTALLING THE BELT CLIP:
If necessary, install the belt clip at the rear of the battery
compartment cover as shown in the figure below.
Note:
« Do not use any kind of glue to fix the screw on the belt
clip.
The solvents Glue may damage the battery casing.
