When assembling the motor, for avoiding the happening of the noise in the
future, don’t make the gear of motor hit the driving gear in the transmission case.
1.3.2 Mounting the transmission case on the frame (Fig.1-6)
Check the surface of frame joint plate for damage
and irregularities, and the regularity of transmission
case surface is required not bigger than 0.1mm.
Fasten the transmission case to the frame with 7 M14
hexagon bolts with torque 135 Nm. See it as Fig1-6.
There are one inlet and one outlet separately below
the transmission case frame.

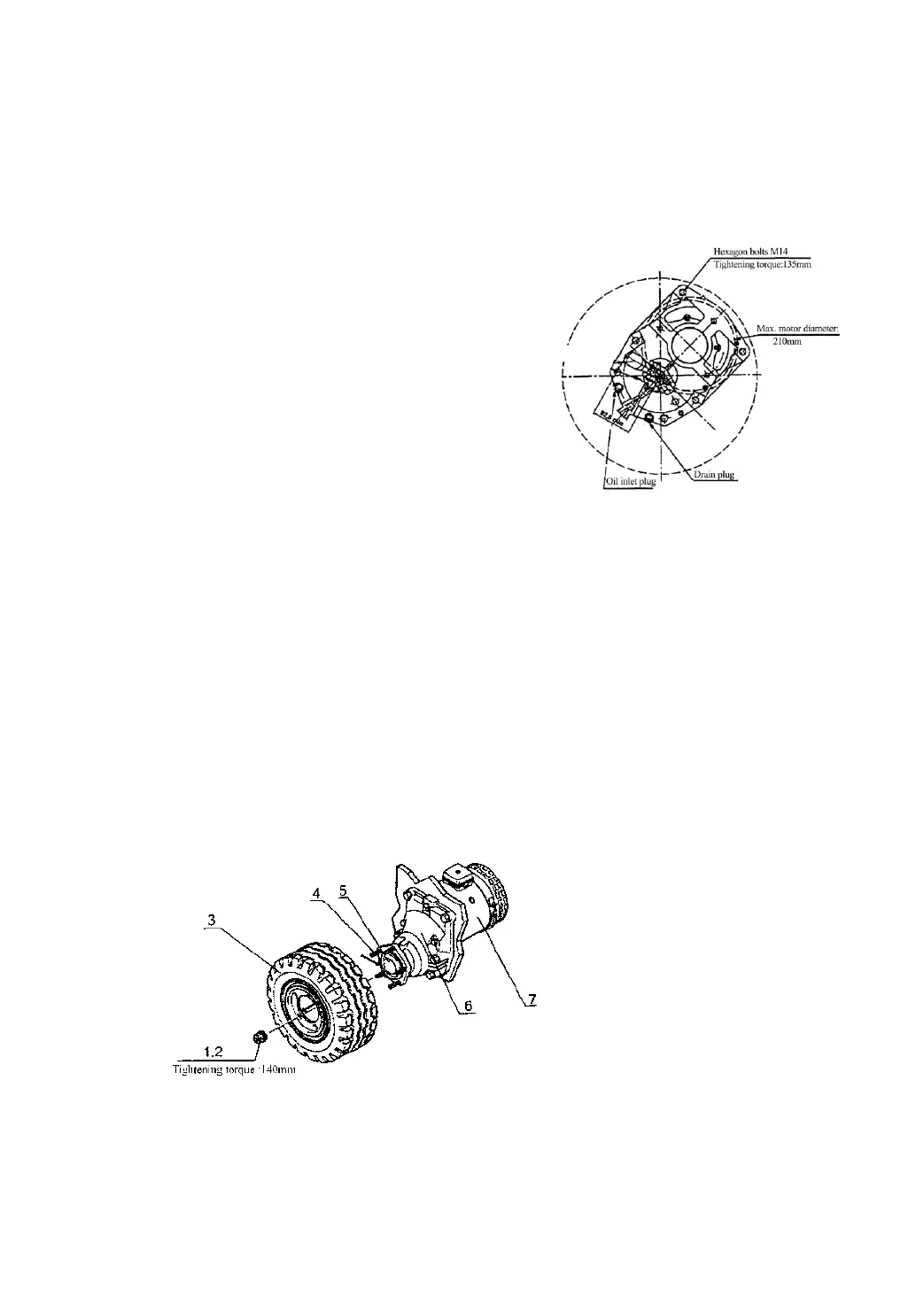

Fig.1-6
1.3.3 Assembly of wheels (Fig.1-7)
The wheel axle of transmission case is fit for assembly of plastic solid tyres and
cushion solid tyres.
a) Make the assembly surface on wheel axle and wheel clean, and check it for
damage.
b) The bore in the rim should be in line with the bolts of the wheel axle, then push the
wheel on, confirming the rim surface and the wheel axle interface coincidently.
c) Tighten the spring gasket, flat gasket and nut with the torque 140Nm.
Fig. 1-7
