Baoli CPDS15 - AC Microtron

44
b) Connect PC machine with controller connector.
c) Enter LIFT CALIBRICATION menu.
d) Select MINIMUM parameter, the minimum value will be indicated in “lift calibration
value” frame, save it.
e) Enter MAXIMUM menu.
f) Operate lift lever, until the maximum potentiometer output value indicates and save
it.
g) Enter MIDDLE menu.
h) Operate lift lever, until indicating middle value between minimum value and
maximum value, save it.
i) Quit the menu.

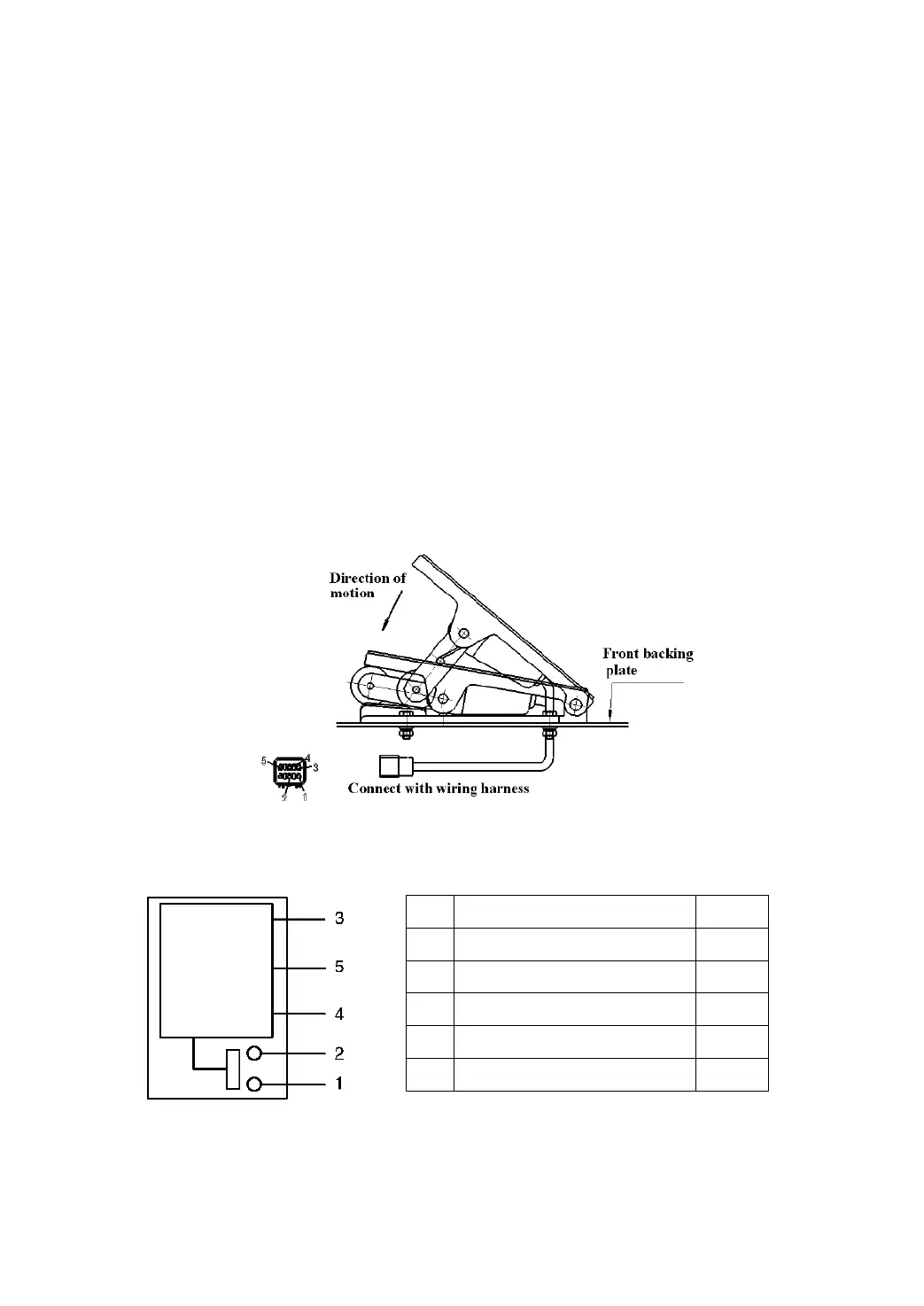

4.5 AC microtron
4.5.1 Outline and port function
4.5.2 Sketch for connector and port
Accelerator signal: linear ranged from 0.38V～0.42V to 3.9V～4.1V
Switch signal: Non-polarity opening contact. Capacity: 2A/100V
No.
Definition
Color
1
Switch output1
Yellow
2
Switch output2
Blue
3
Power positive input
(12V+)
Red
4
Power negative input
(12V-)
Black
5
Accelerator signal output
Green
