2. Brake system
2.1 General description
The brake system consists of brake pedal, master cylinder and oil-lubricant brake. The
oil-immersed multi-frictional plate brake is assembled in reduction box, eliminating the
pollution, extending the life of brake unit and descending the maintenance cost.
2.1.1 Brake pedal
The brake pedal assembly is of sling structure (see the construction as Fig.2-1),
mounting on the meter bracket with bracket. The lever of master cylinder transfers the
pedal force to brake oil pressure.

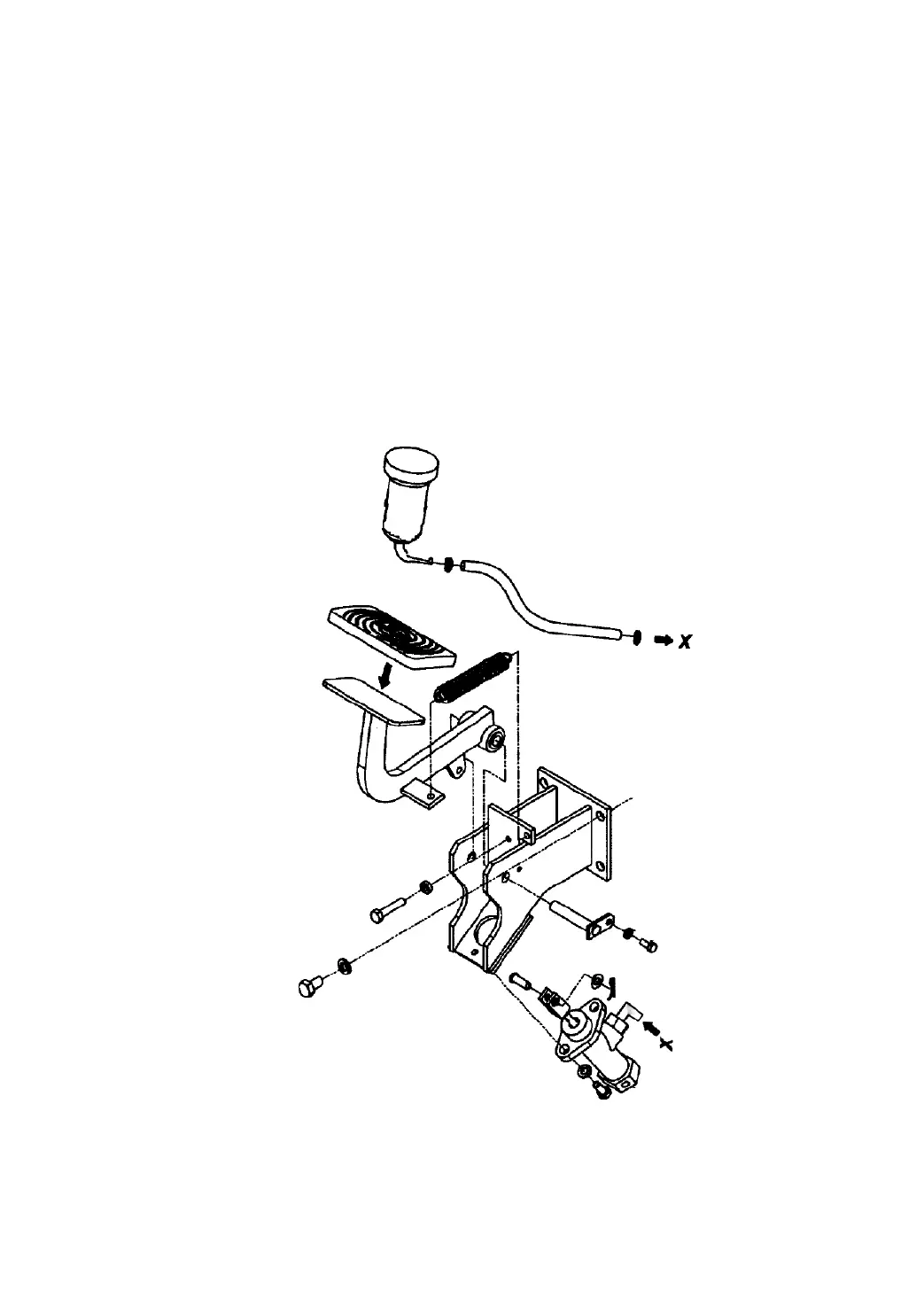

Fig.2-1 Brake pedal
