4.5.3 Setting for accelerator
a) Install potentiometer on front backing plate, make sure the accelerator pedal on
initial state.
b) Connect PC machine with controller connector.
c) If accelerator connects correctly, the output voltage will change with the stroke of
the pedal.

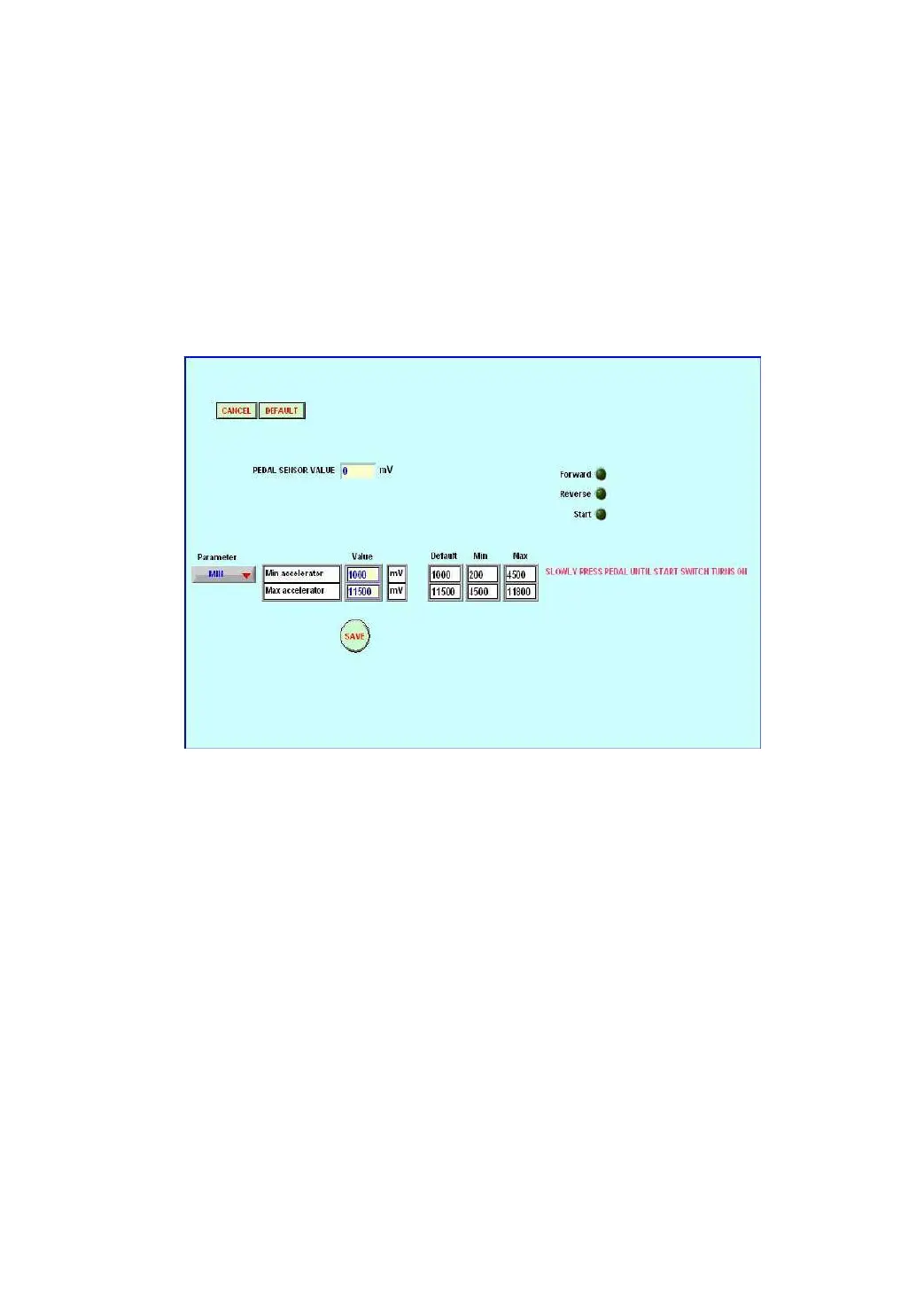

d) Enter ACCELERATION PEDAL CALIBRATION menu.
e) Press the pedal slowly until START lamp lights, save it.
f) Select MINIMUM menu, press the pedal slowly until output value is larger than start
value, save it.
g) Select MAXIMUM menu, press the pedal slowly until the max output value occurs,
save it.
h) Quit the menu.
