c) If electric potentiometer installs correctly, the output voltage value will be changed
with hand wheel’s turning.
d) Enter STEERING SENSOR CALIBRATION menu.
e) Select ANTICLOCK parameter, turn hand wheel left until minimum steering value
displays, save it.
f) Enter CLOCK menu.
g) Turn hand wheel right, until maximum steering value displays, save it.
h) Enter MIDDLE menu.
i) Turn the steering wheel left and right until zero value displays (straight traveling
direction), save it.
j) Quit the menu.
Do trial operation, check if the position of steering wheel and displaying angle of meter
is consistent (range over 0°, 90°, -90°).

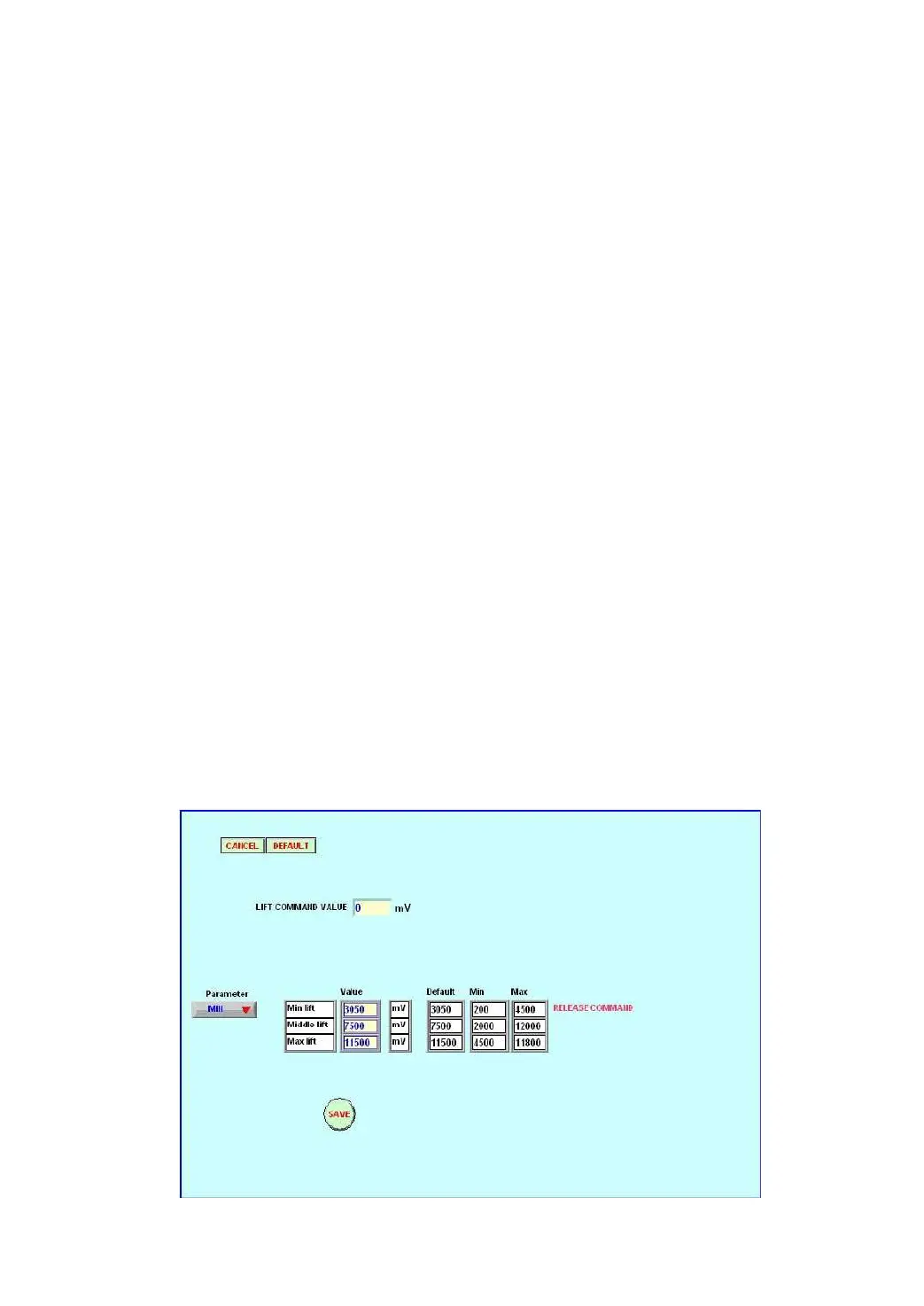

4.4.3 Lift potentiometer
1. Specification
Resistance limitation: 0KΩ-5KΩ
Effective straight travel: 9±0.5mm
Voltage: 12V
2. Adjustment
a) Install potentiometer on the first level lift of multi-way valve, make sure that the top
lever of potentiometer runs freely.
