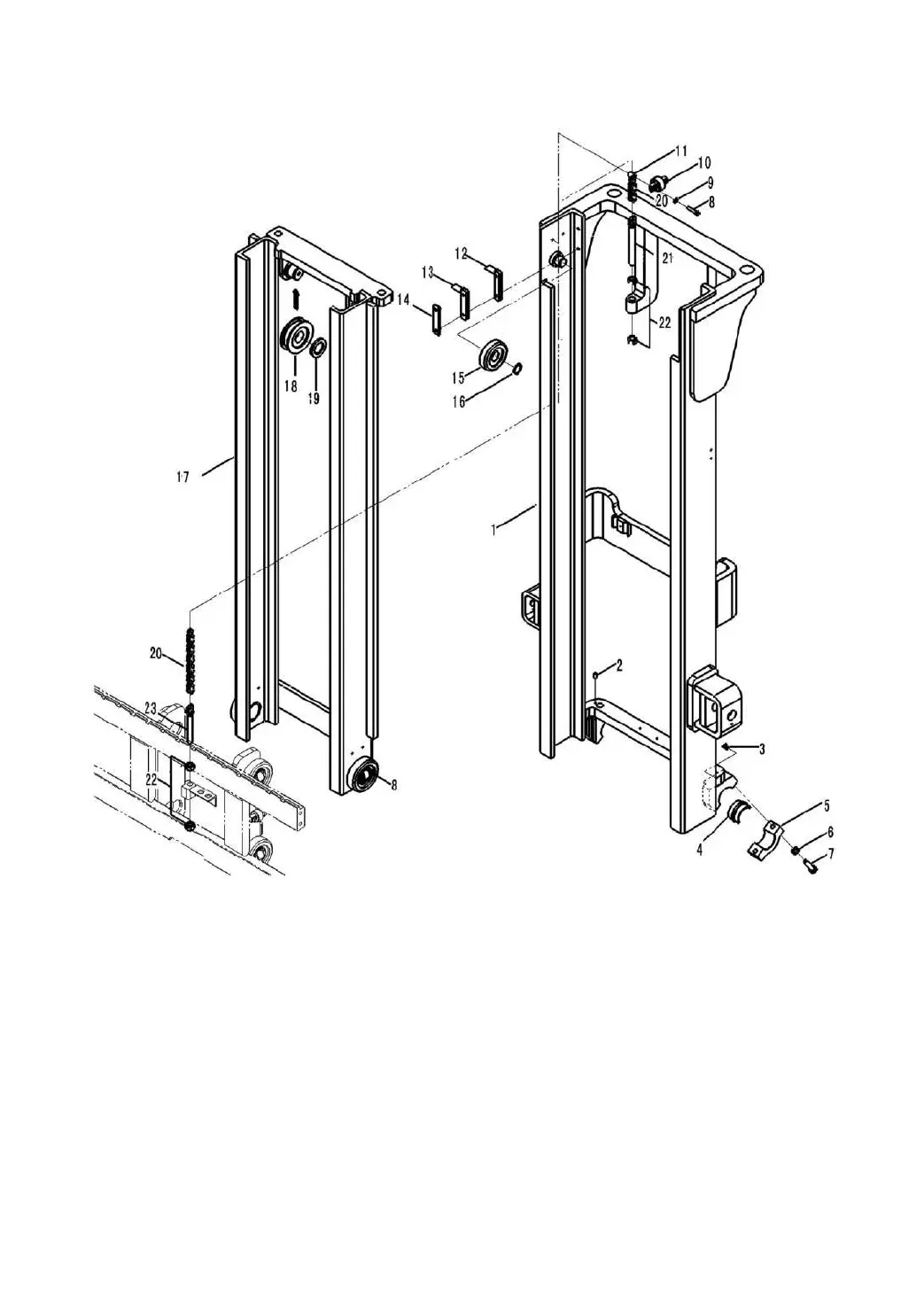

Fig.8-1 Inner and outer mast
1.
Outer mast
7.
Bolt
13.
Adjust gasket
19.
Snap ring
2.
Pin
8.
Bolt
14.
Guide plate
20.
Chain assy
3.
Grease
9.
Washer
15.
Roller bearing
21.
Short bolt
4.
Mast bearing
10.
Side roller bearing
16.
Snap ring
22.
Nut
5.
Support cover
11.
Side roller washer
17.
Inner mast
23.
Long bolt
6.
Washer
12.
Adjust gasket
18.
Bearing, chain wheel
