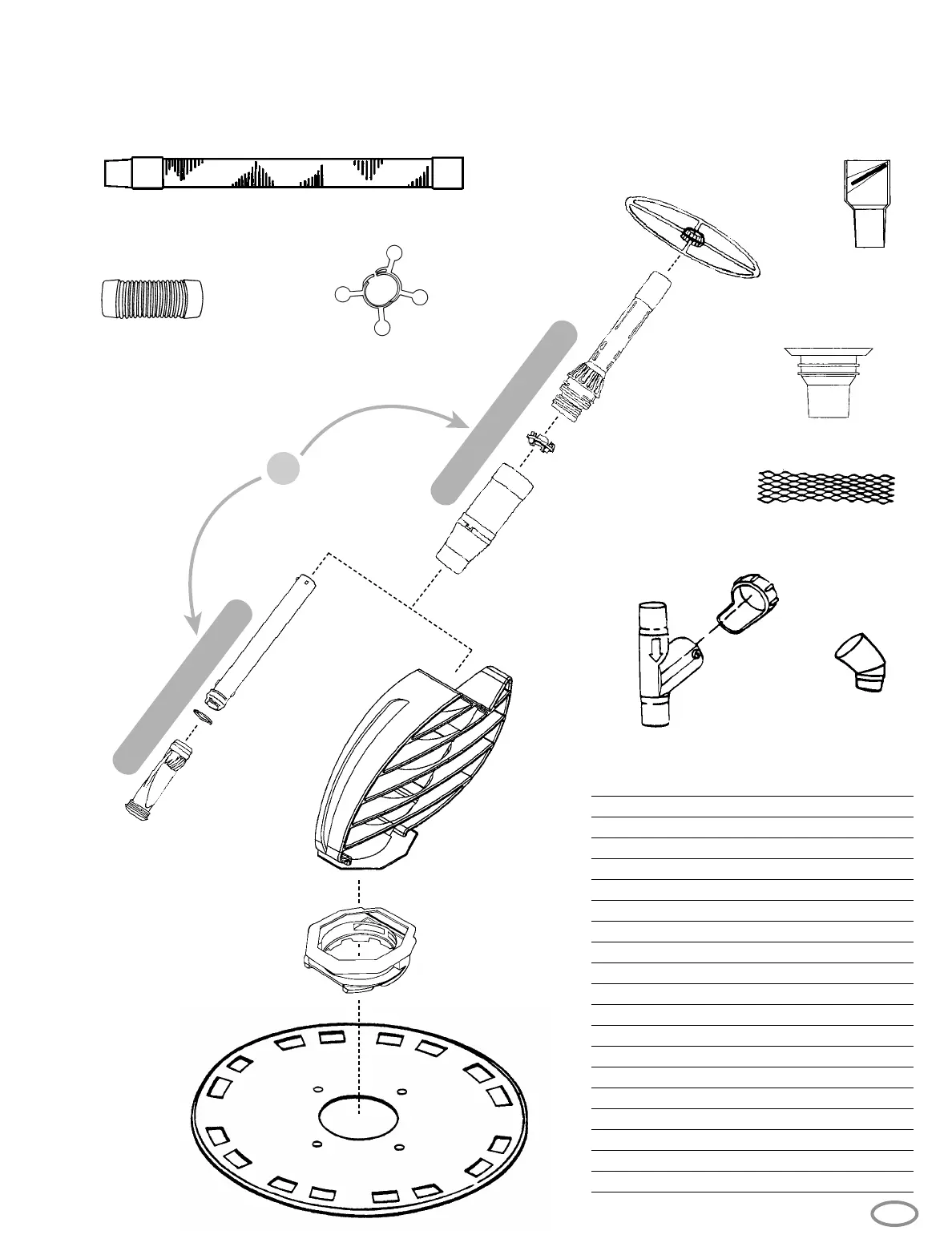

baracuda Ranger - Parts Diagram

RANGER
™
PARTS DIAGRAM
7
11
15
12
6
5
PART NO. DESCRIPTION
1. 46055 Wheel Deflector - Medium
2. 72062 Cassette Pipe w/Handnut
3. 74000 Compression Ring
4. 81741 Diaphragm Chamber
5. 44310 Frame Assembly
6. 72855 Footpad
7. 48131 Disc
8. 73406 Threaded Inner Extension
9. 81600 Diaphragm Retaining Ring
10. 81710 Diaphragm
11. 72098 Cassette Complete
12. 58505 Regulator Valve - Complete
13. 44805 Pool Pulse
TM
14. 22410 45˚ Elbow (2)
15. 33800 Hose Protector
16. 64700 Above-ground ValveCuff
17. 33205 4 1/2” Connector
18. 24209 Hose Deflector (3 Pack)
19. 38205 White Hose Section
15
13
14
16
8
9
10
17
18
19
1
2
3
4
