INSTALLATION
Step 1: Turn the filter system off. (Be sure you have turned off the main drain,
if your pool has one.)

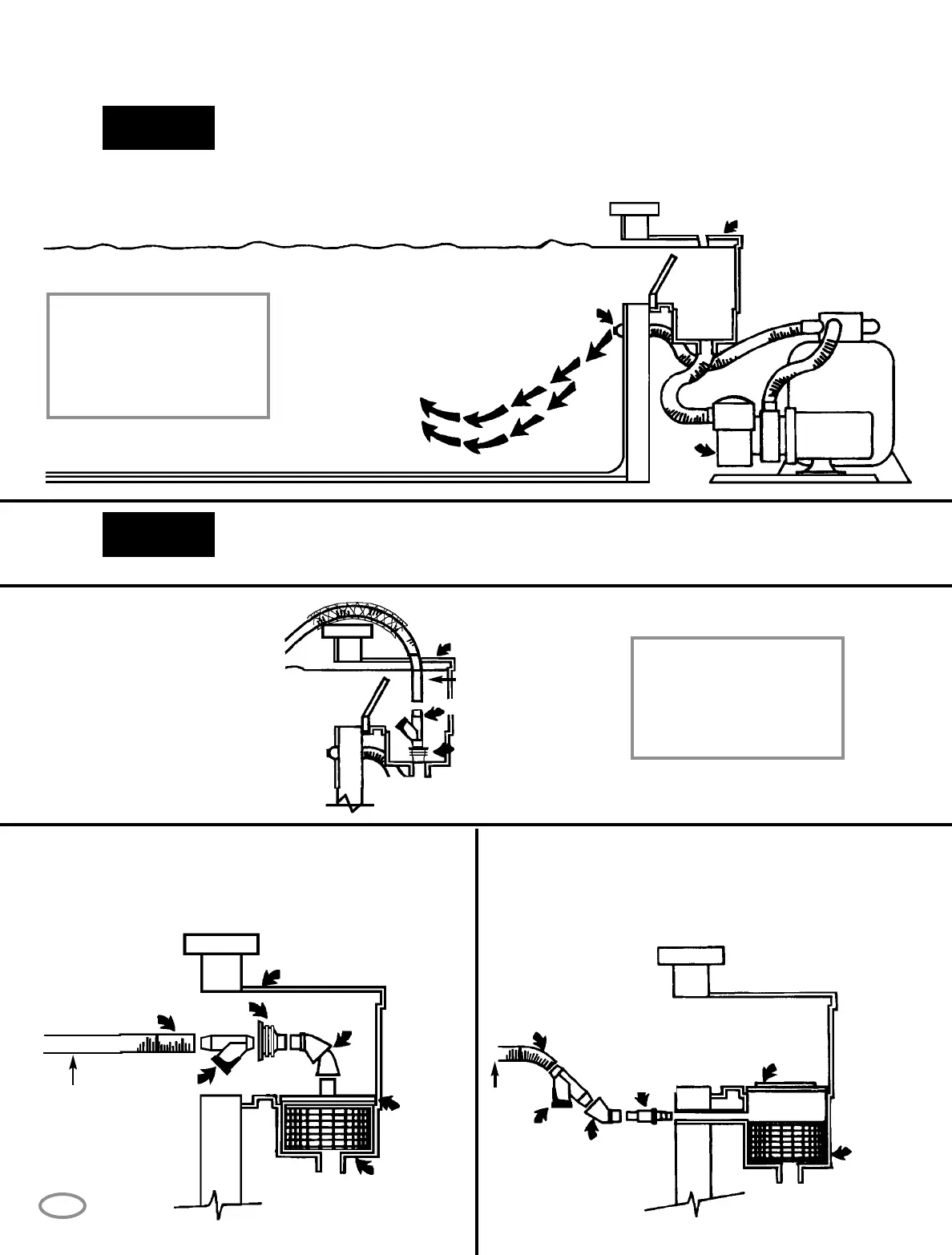

GENERAL POOL SCHEMATIC
Step 2: Select the fitting combination best suited to your skimmer from
figures A, B, C.
POOL
SKIMMER
RETURN
FLOW
INLET
PUMP
FILTER
FIGURE A
Direct Method
Remove Skimmer
Basket
CAUTION:
The regulator valve
MUST be used on
all installations
IMPORTANT!
Return flow must be
directed toward pool
bottom as shown.
HOSE CONNECTOR
VA LV E
SKIMMER
SKIMMER
BASKET
2-45°
FITTINGS
ABOVE GROUND SKIMMER CUFF
SKIMMER
VACUUM
PLATE
FIGURE C
Vacuum Line Installation
HOSE
VA LV E
45°
FITTING
FIGURE B
With Skimmer Basket and Skim Vac Plate
(supplied with pool)
COVER
PLATE
SKIMMER
BASKET
VACUUM
FITTING
SUPPLIED
WITH POOL
SKIMMER
6
SKIMMER
VA LV E
ABOVE GROUND
SKIMMER CUFF
HOSE CONNECTOR
HOSE
HOSE CONNECTOR
