Baratza SETTE 270W - Part Identification for Sette 270 W

v1 October 21, 2016
4
SETTE™ 270W MANUAL
®
135
FineCoarse
791113151719212325272931
FineCoarse
A B C D E F G H I

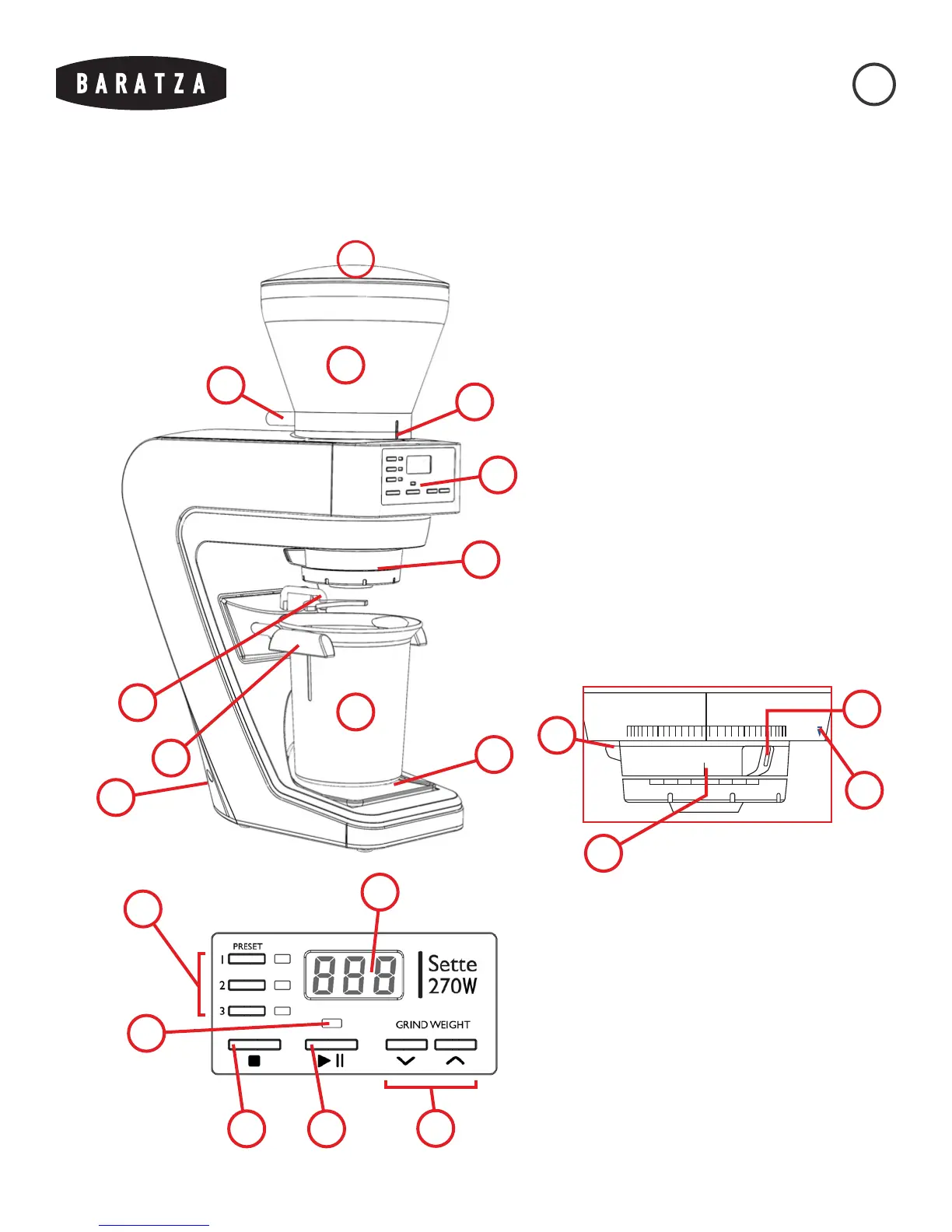

PART IDENTIFICATION
1. Hopper Lid
2. Bean Hopper
3. Bean Shutoff Knob
4. Hopper Alignment Indicator
5. Control Panel
6. Grind Adjustment Assembly
7. Adjustable Portalter Hook
8. Convertible Device Arms
9. Grounds Bin
10. Removable Grounds Tray
11. Power Cord
12. Macro Adjust
13. Stepless Micro Adjust
14. Installation/Removal Indicator
15. Installation/Removal Tab
16. Memory Preset Buttons
& Indicators
17. Grinding Indicators
18. LCD Display
19. Stop
20. Start/Pause
21. Grind Time Adjustment Buttons
1
2
3
4
5
6
9
10
7
8
16
17
19 20
21
18
12
11
15
13
14
