Page 11
Assembly instructions (continued)
(These next two steps assume that you have already assembled the
cart using the instructions included with the cart)
STEP 3 CART MODELS ONLY: Fix the cart / cabinet separator panel
into place.
WHAT YOU NEED
9 x M6*12mm Flat Head Screws (4B)
8 x M6*12mm Flat Head Screws (2B)

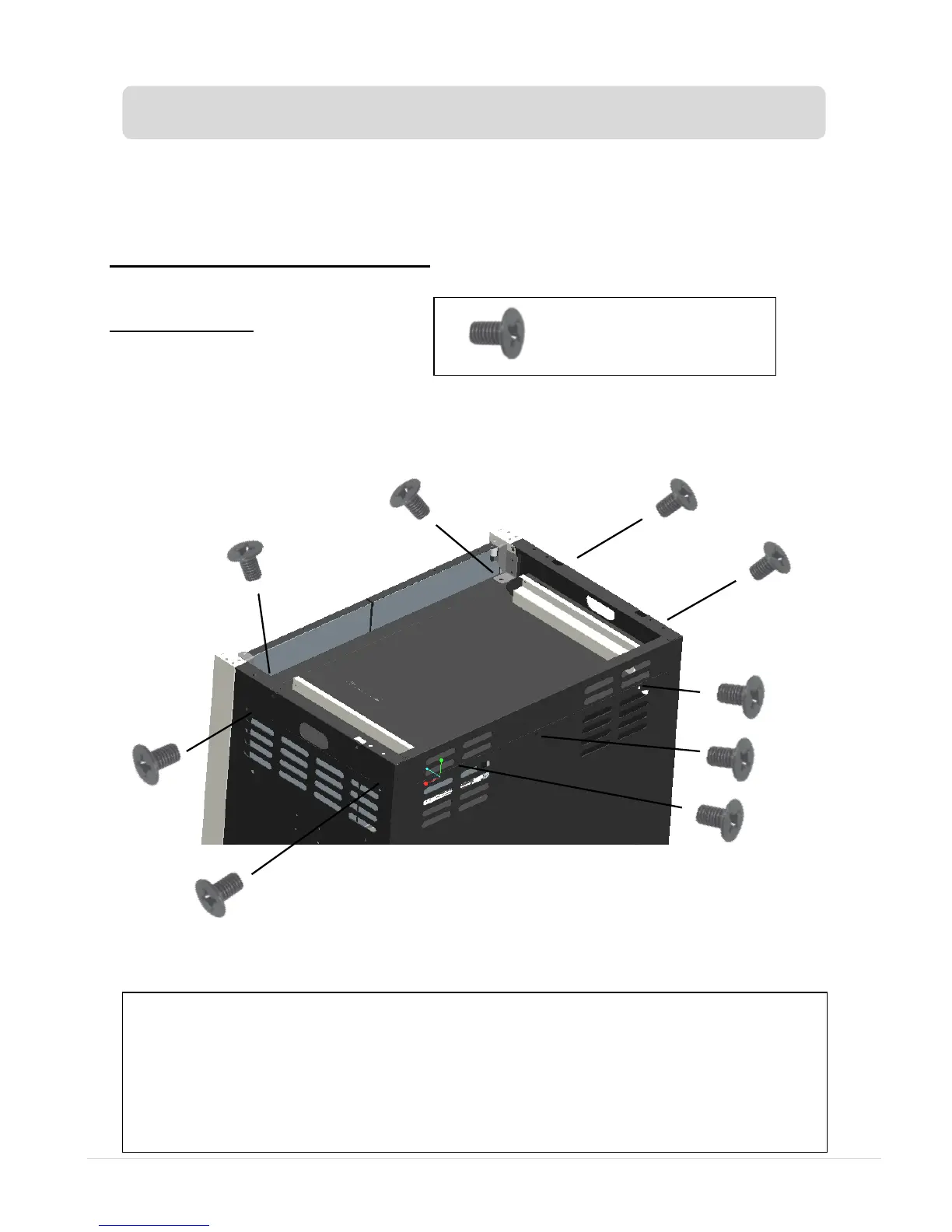

Locate the separator panel in place and start the screws (two each side, three on the back, 4B has
two in the top front corners, 2B has 1 only in front corner). Get all the screws started, and only then
tighten all screws firmly.
BEFORE ATTACHING THE BBQ IN THE NEXT STEP, ADJUST
THE DOORS AND CASTORS IF REQUIRED SO THAT THE
CART AND DOORS ARE LEVEL AND THE DOORS OPEN AND
CLOSE EASILY. REFER TO THE CART ASSEMBLY
INSTRUCTIONS FOR MORE DETAILS.
