Page 12
Assembly instructions (continued)

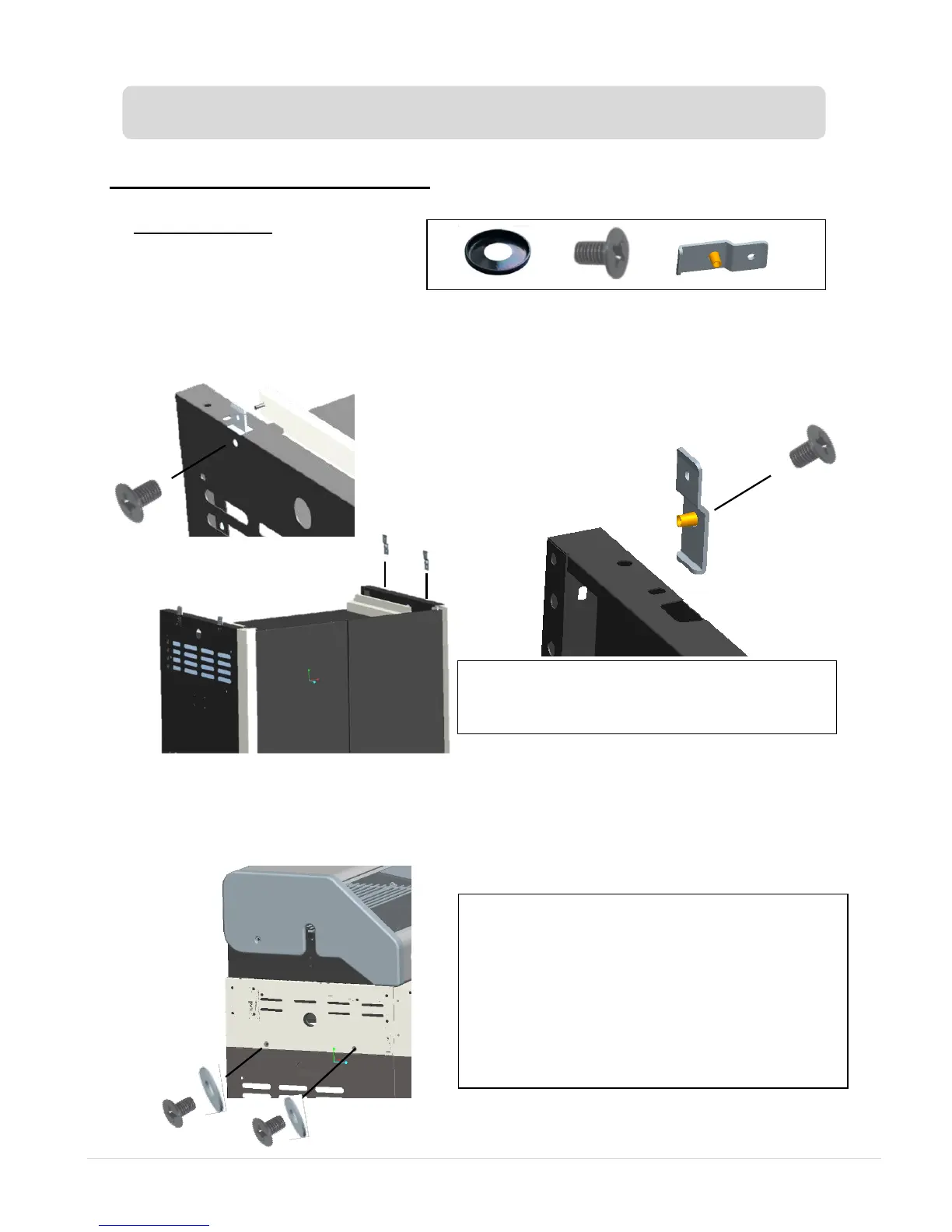

STEP 4 CART MODELS ONLY: Fix the firebox and hood assembly onto
the cart.
WHAT YOU NEED
4 x "S" shaped brackets
8 x M6*12mm Flat Head Screws
4 x Metal Washers
(a) Insert four “S” shaped brackets into the cart slots, oriented as shown, and fix with 4 x
M6*12mm Flat Head Screws to lock the bracket to the cart side panel.
(b) With help, carefully lower the head unit onto the cart, fix 4 x M6*12mm Flat Head Screws
and 4 x Metal Washers through the hole on “S” shaped bracket and lock it to the head.
Tighten all screws firmly.
Take care when fitting the barbeque in
place to also thread the hose and
regulator through the access hole in the
left side of the separator panel.
For deluxe models only: the three
electric cables need also to thread
through the right side of the access
hole in the separator panel.
