1. Fan replacement kit
Necessary parts
Tw o 4–40 x 1/4” pan-head Ph illips sc rews
How to install the top cover?
1. P lace the top cover correctly on the top o f the processor.
Note: There is a lip that slides under the front panel assembly in front and a back lip that slides over the top lip of the rear panel
assemb ly.

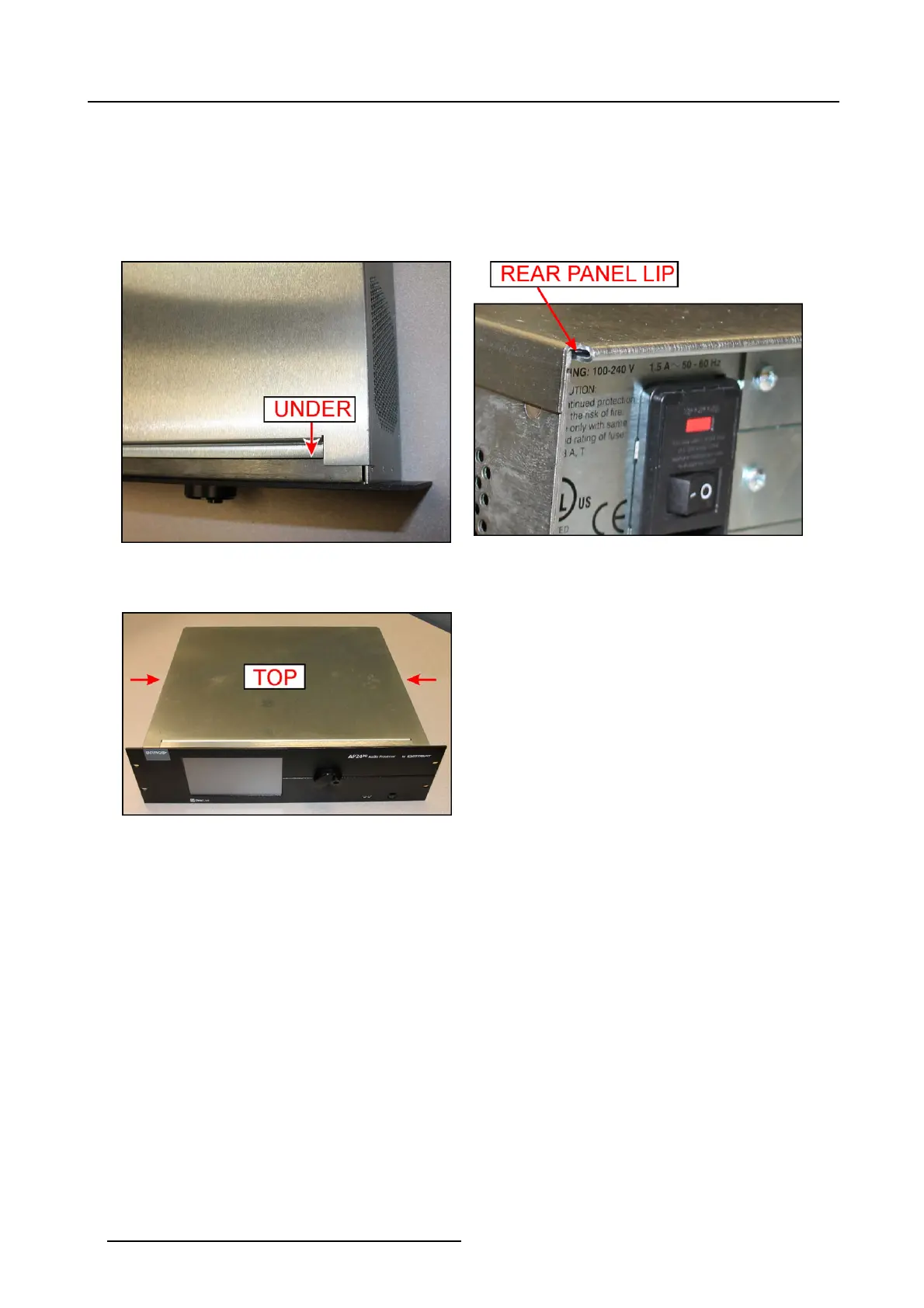

Image 1-16
Image 1-17
2. O nc e the top cover is properly seated, install two 4–40 x 1/4” pan -head Ph illips screws.
Note: If the screw holes are not lined up correctly, the cover is not seated correctly. Adjust the top cover if ne cessary.
Image 1-18
8 R59770891 AP20 & AP24 FAN REPLACEMENT KIT 28/09/2015
