Coronis Fusion 10MP 19

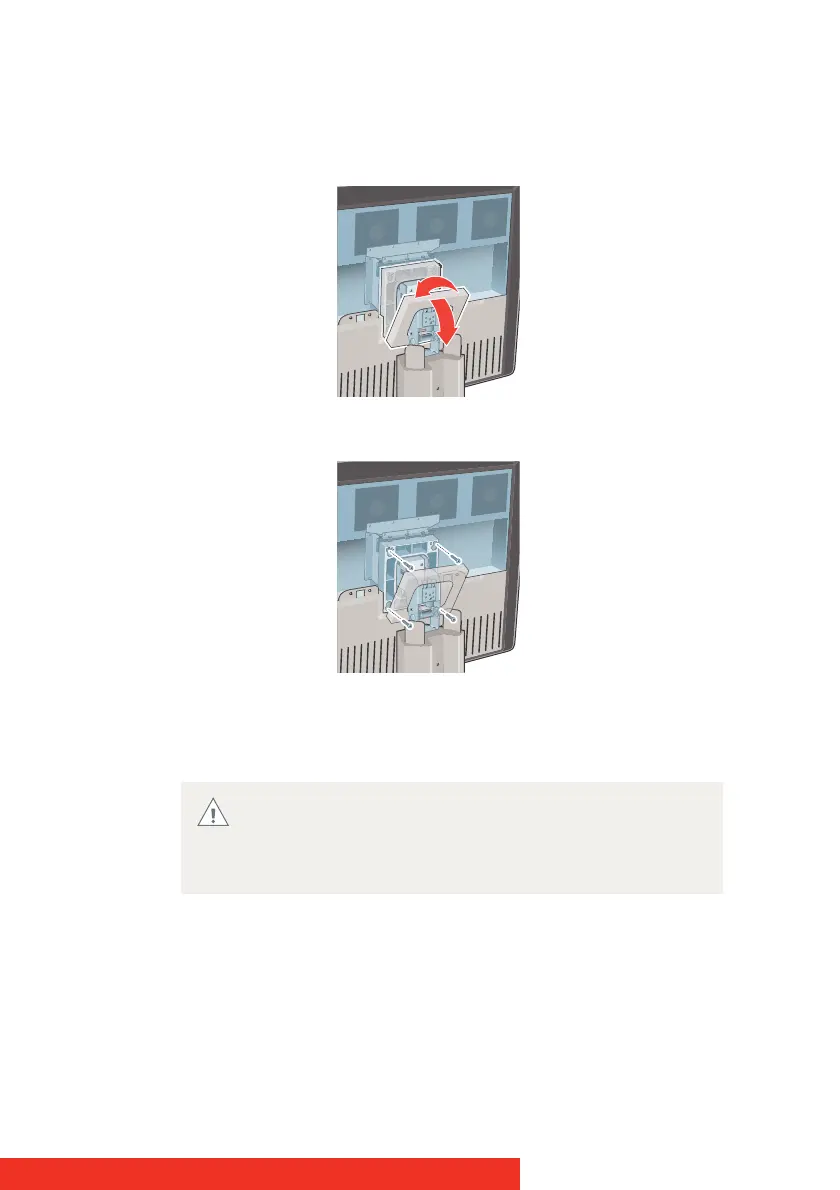

3 Lift the plastic frame that covers the fixation of the panel to the
stand. Turn it for 45 degrees to uncover the fixation screws.
4 Unscrew the four fixation screws fixing the panel to the stand.
5 Attach the panel firmly to the arm using 4 screws M4 x 10 mm.
You should mount the panel in landscape position. Portrait position
is not supported.
Use an arm that can support a weight of at least 18 kg
(39.68 lbs). Failure to do so could make the panel fall,
causing serious injury to a child or adult, and serious
damage to the equipment.
