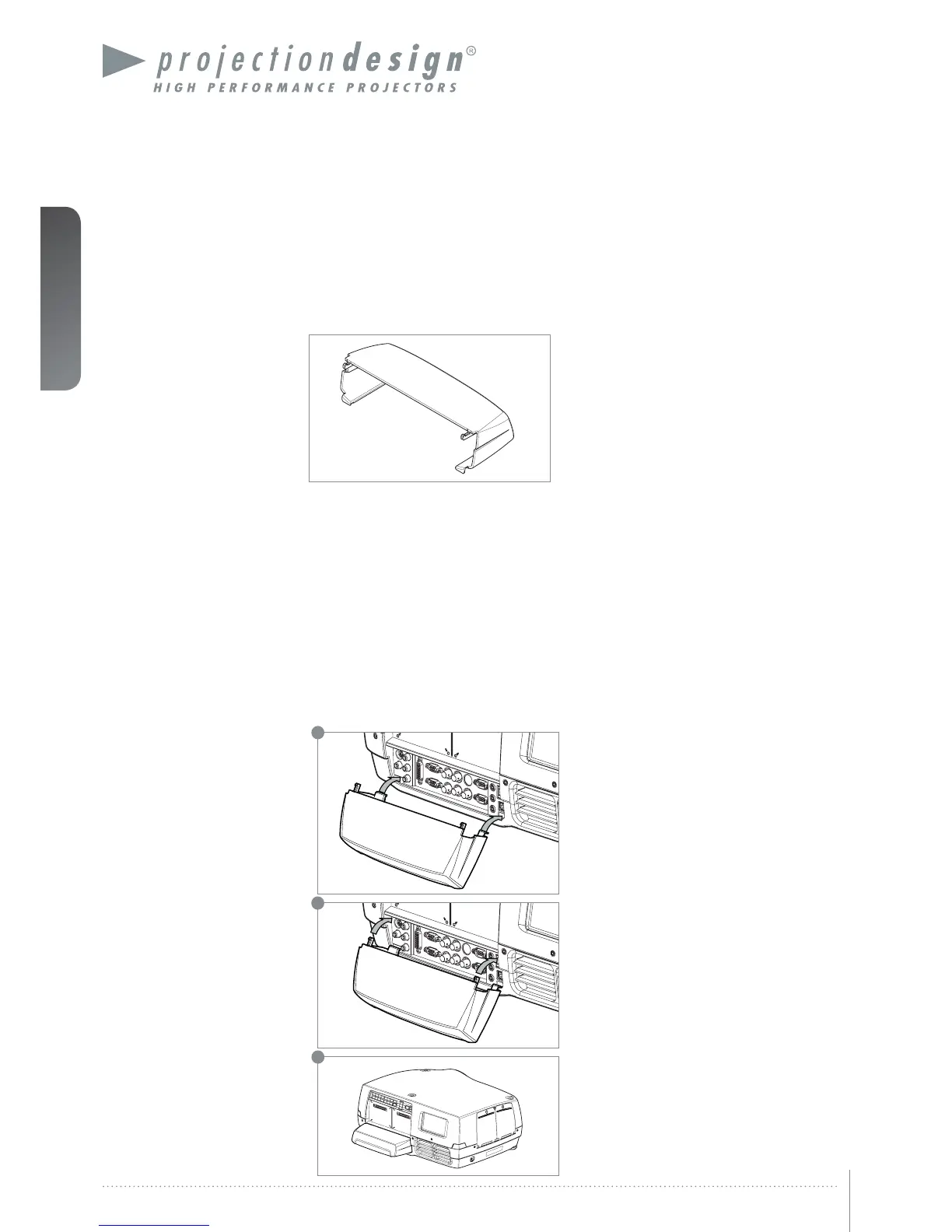

5.5.1 Ceiling mount cover (optional)
The optional auxiliary cable cover can be mounted on the projector to conceal the interface
cables and power cord when the unit is ceiling mounted. Connect all cables and fix them in
place before the cable cover is attached to the projector. Figure 5-3 shows the ceiling mount
cover.
Figure 5-3. The ceiling mount cover
5.5.2 Attaching the ceiling cover
To attach the ceiling mount cover, please follow this procedure:
A Attach the cable cover to the projector by inserting the horizontal hooks on the cover in
the horizontal slots on the rear of the projector.
B Turn the cover until the vertical hooks on the cover are inserted into the vertical slots on
the rear of the projector.
C The cover will snap in place, to release pull the vertical hooks on the cover out of the
slots, letting the cover hinge on the horizontal hooks.
