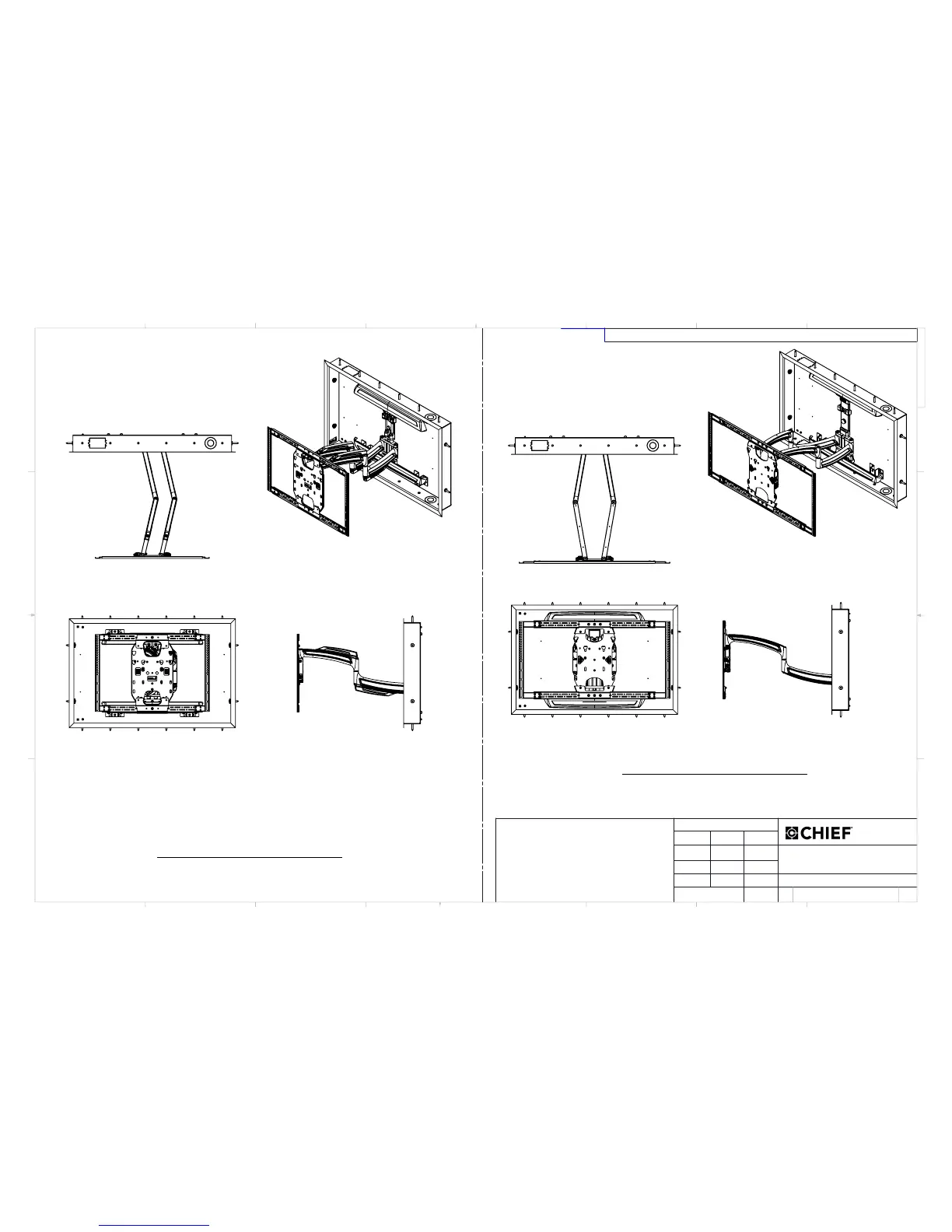

SWING ARM LARGE BOX WITH TS325
FULLY RETRACTED MONITOR WILL BE FLUSH WITH WALL
FULLY EXTENDED MONITOR WILL BE 22.67 FROM WALL
MAX TILT IS 15 DEGREES
TS325 WILL BE CENTERED BOTH HORIZONTALLY AND VERITCALLY
TOP
FRONT
RIGHT
TOP
FRONT
RIGHT
SWING ARM LARGE BOX WITH TS525
FULLY RETRACTED MONITOR WILL BE FLUSH WITH WALL
FULLY EXTENDED MONITOR WILL BE 23.34 FROM WALL
MAX TILT IS 15 DEGREES
TS525 WILL BE CENTERED BOTH HORIZONTALLY AND VERTICALLY
D
C
B
A
A
B
C
D
SIZE
B
8 7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
TECH-000104
THINSTALL IN-WALL BOX - LARGE
6436 CITY WEST PKWY
EDEN PRAIRIE MN, 55344
PHONE: 866-977-3901
FAX: 877-894-6918
SHEET 2 OF 2
THE INFORMATION AND DESIGNS CONTAINED IN
THIS DRAWING ARE CONFIDENTIAL AND THE
PROPRIETARY PROPERTY OF MILESTONE AV
TECHNOLOGIES NEITHER THIS DESIGN NOR ANY
INFORMATION CONTAINED IN THIS DRAWING
MAY BE REPRODUCED OR DISCLOSED TO OTHERS
WITHOUT THE EXPRESS WRITTEN CONSENT OF
MILESTONE AV TECHNOLOGIES.
DRAWN BY
CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE.
LRP
LRP
8/20/2012
8/20/2012
ENG APPROVAL
MFG APPROVAL
QA APPROVAL
SCALE
1:12
TECH-000104
STATUS:
JS 10/21/2015 - RELEASED ON ECO: 500012677
03
DESCRIPTION
REV.
DWG. NO.
MODEL NO.
TA500
