1. Filter Assembly
Filter frame
Projector side cover

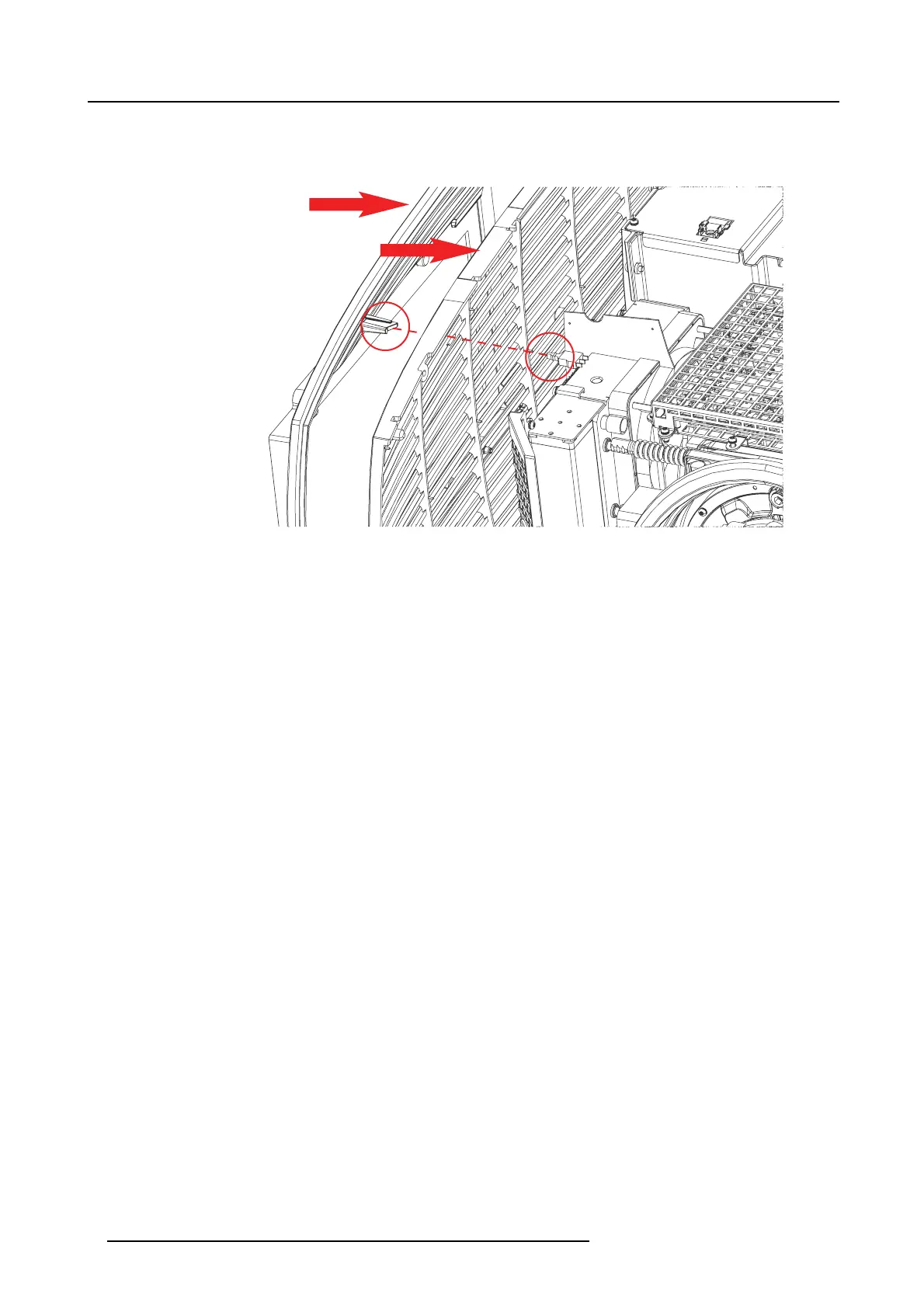

Image 1-3
Microswitch engagement
4. Hold the filter frame in po sition, and enter the screws in each c orner in the corresponding threads in the side cover. Tighten the
screws in a cross pattern. Enter and tighten the two last screws
2
601–0456 F90 DUST FILTER 14/08/2017
