R5911227 /02 Coronis Fusion 4MP / 6MP 13

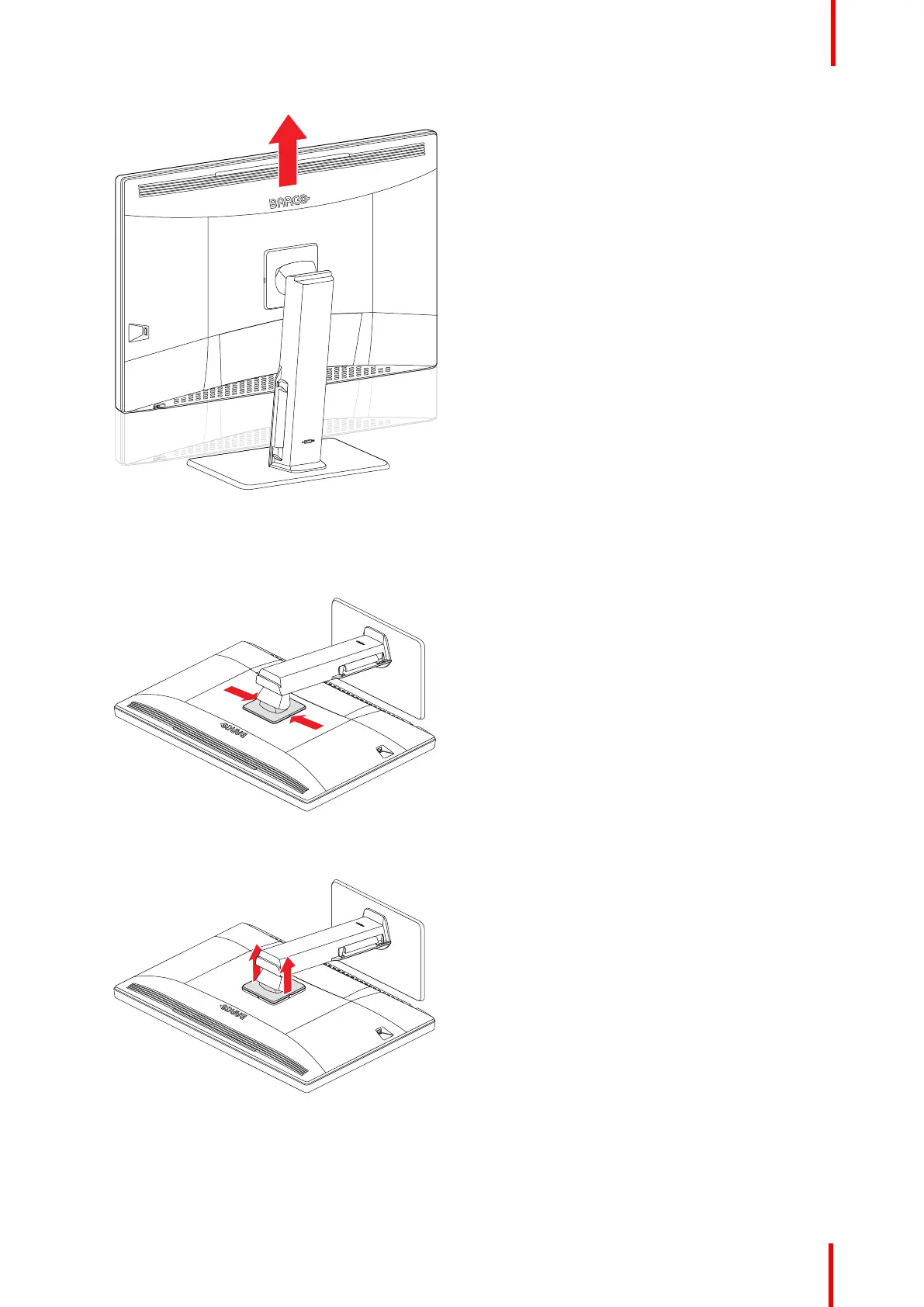

Image 2-6
2. Put the display face down on a clean and soft horizontal surface. Be careful not to damage the panel
screen.
3. Release the VESA mount cover with a flathead screw driver.
Image 2-7
4. Lift the VESA mount cover.
Image 2-8
5. Rotate the VESA mount cover to uncover the screws fixing the panel to the stand.
Installation
