Switch on the projector
Switch off the projector. Press for 2 sec
Source selection hot key. Define Hot Keys in the
control menu
Navigation keys and confirmation key
Aspect ratio switch
Activate menu or return key
Settings
Pauze: picture mute
Text: deactivate or activate the On Screen Text
Auto image: activate the auto image adjustment
Contrast: high lights adjust
Brightness: low lights adjust
Sharpness: increase edge detail
Phase: adjust phase (analog signals only)
Color: color saturation
Tint: tint adjust (NTSC only)
PIP: activate selected Picture-in-Picture
SWAP: swap PiP and main image
Address: change the remote control address to 1 or 2.
Press address and enter for 5 sec.
1
2
3
4
5
6
7
1
3
2
4
1
5
INPUT
ASPECT
RATIO
AUTO IMAGE
PAUSE TEXT
MENU
SHARPN
PHASE COLOR TINT
ADDRESSSWAPPIP
1
3
4
6
7
2
5
Menu structure
Using the remote control
Input Selection
Input Locking
Input Corfiguration
Auto Power off
Auto Power on
No Signal
Video Standard
Contrast
Brightness
Saturation
Tint
Sharpness
Noise Reduction
Color Temperature
Input Balance
Aspect Ratio
Timings
Auto Image
Zoom
Main Select
PIP Select
PIP Position
PIP
Mode
Lamps
High Altitude Mode
Power
Lamp1 Status
Lamp2 Status
Lamp1 Run Time
Lamp2 Run Time
Rear Projection
Ceiling Mode
Lens Control
Dynamic Contrast
Gamma
Internal Patterns
Color Space
Lens To Midposition
Warp
Blanking
IR Address
Eco Network Power
Network
Menu Position
Start Up Logo
Start Up Chime
Button 1
Button 2
Button 3
Button 4
Button 5
Trigger 1
Trigger 2
Auto Source
Language

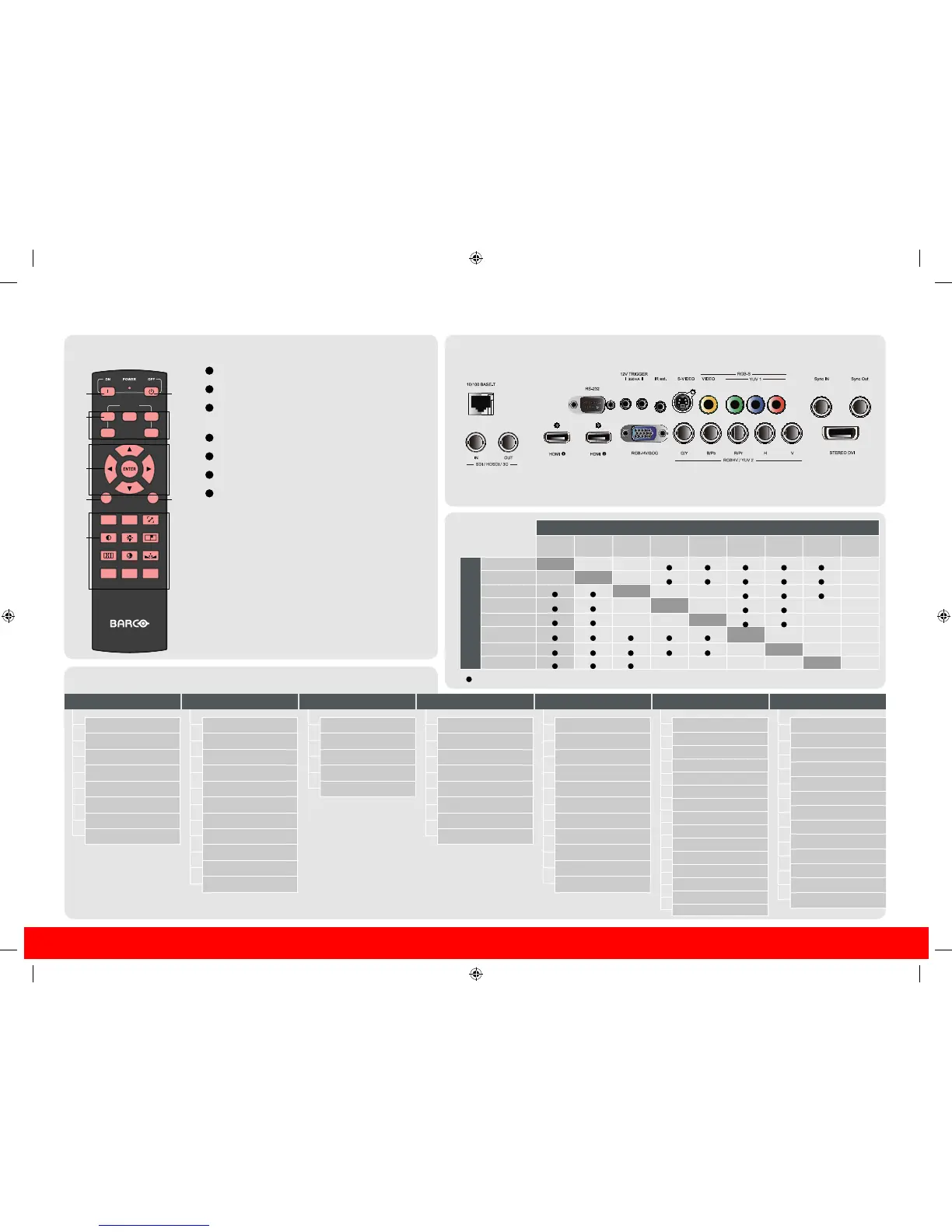

RLM-W12 Quick start guide
Main select
PiP select
HDMI1
-
HDMI2
-
RGB (D15)
- -
YUV1
- - -
RGBHV/YUV2
-- -
Composite video
- -
S-Video
- -
-
-
-
-
-
-
-
-
RGB-S
- - - -
INPUT IMAGE LAYOUT LAMPS ALIGNMENT CONTROL SERVICE
RLM-W12 Quickstart guide
External control over IP
for e.g. Projector Toolset
or web browser
Use HDMI for e.g. PC
or Blu-ray player
Use D15 input for PC Use BNC inputs for RGBHV and
component signals
External RS232 comm.
incl. Projector Toolset
Trigger voltage can control
e.g. a screen or curtains
Use RCA inputs for
component signals
Serial digital interface, use
BNCconnects input or output
the image.
Dual DVI input
for 3D source
Input/Output connection
for 3D Sync singal
Pip/main source
availability
Source availabe - source not availabe
* that will refer in text at the bottom of the page.
HDMI1 HDMI2 RGB (D15) YUV1
RGBHV/
YUV2
Composite
video
S-Video RGB-S
*
Stereo
DVI
ScenergiX
* When using stereo DVI the OSD cannot be displayed. To go back to 2D inputs mode, select a input between 1 to 4.
Adjustments on the 3D source can be done through the web browser or projector toolset. See manual for more details.
Model
Serial Number
Software Version
Active/ PIP Source
Pixel Clock
Signal Format
Lamp1 Run Time
H/V Refresh Rate
Lamp2 Run Time
Lamp Hour Reset
Projector Run Time
Blue Only
Factory Reset
Auto Image Adjust
To Previous Page
