Barco RLM W6 Service Manual

- 7 -
The interval is depending on the smoke density.
Dust clogs at the filter will prevent the projector from drawing cool air to lower the internal
temperature. This could lead to overheating and cause the projector to malfunction or
become damaged.
Use a vacuum cleaner to clean the ventilation slots.

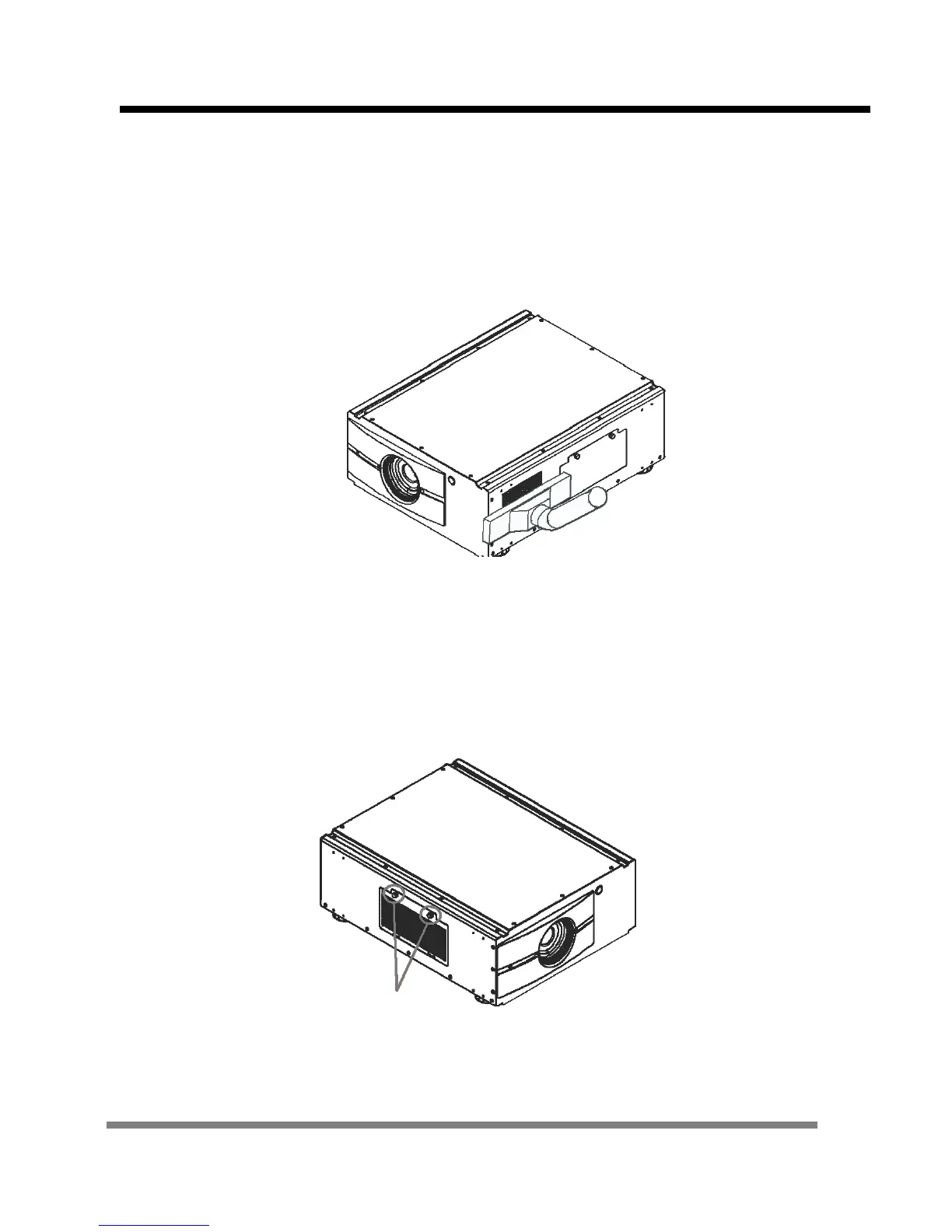

To clean the filter at the ventilation slots, refer to the following illustration:
Step1: Loosen the two screws on the cover of the ventilation slot.
:
Loosen the 2 screws

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
