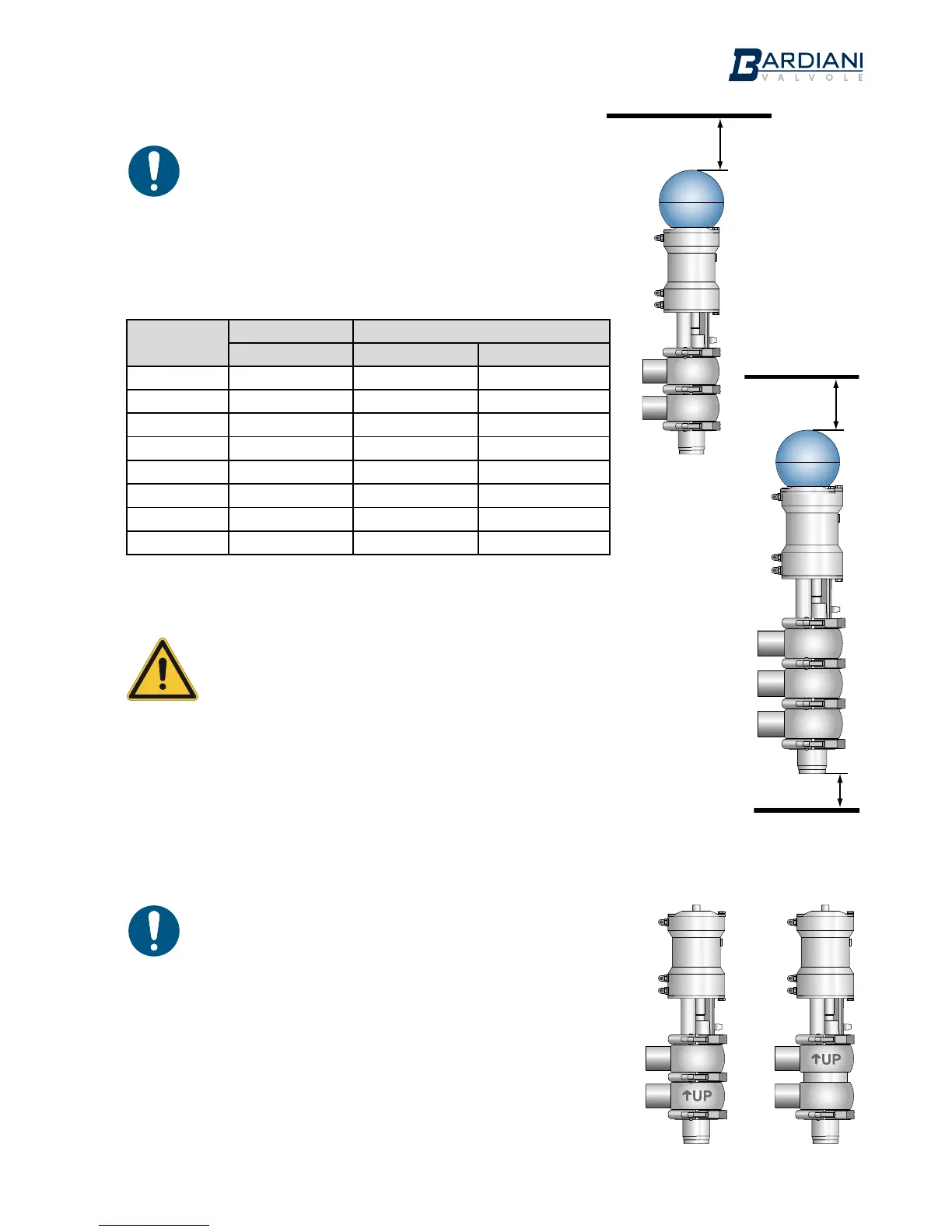

6. MINIMUM MAINTENANCE CLEARANCES:
Make sure there is enough room around the valve for it to be
disassembled (with the control unit installed).
DN
15÷40
B925 B925 DIVERTER
A (mm) B (mm) C (mm)
15÷32 350 150 330
40 370 130 350
50 400 165 380
65 420 180 420
80 450 195 450
100 570 235 570
125 670 280 680
150 670 280 680
7. ORIENTATION OF THE DOUBLE BODY:
Pay attention to body orientation. On the double body and the bottom
body (for valves with separate bodies) the UP arrow indicates the
position of the valve actuator.
CAUTION!
Bardiani Valvole S.p.A. declines all liability for any damage to things
and/or injuries to persons caused by any failure to correctly follow the
installation procedures.
13
A
B
C
