Barko Hydraulics 595ML - Lubrication Points

page 22
595 ML CRL (S)
800-00177
GREASE
HYDRAULIC
OIL
GEAR FLUID
OR ENGINE
OIL
1 Grapple Arms
2 Grapple Rotator
3 Grapple Cylinders
4 Grapple Hanger (2 fittings)
5 Turntable Bearing & Pinion
6 Stick Boom Pivot
Pump Drive (except direct drive models): EP 80-90 gear fluid.
Track Drive Gearbox - EP 80-90 gear fluid.
Crawler Front Idlers - SAE 30 CD/TO-2 engine oil.
Crawler Track Rollers and Carrier Rollers - SAE 30 CD/TO-2 engine
oil.
Swing Motor Gearboxes: EP 80-90 gear fluid (fill until oil is as high as
top of cluster bearings - see service manual for more information) (if
lube reservoir is used, maintain at half full).

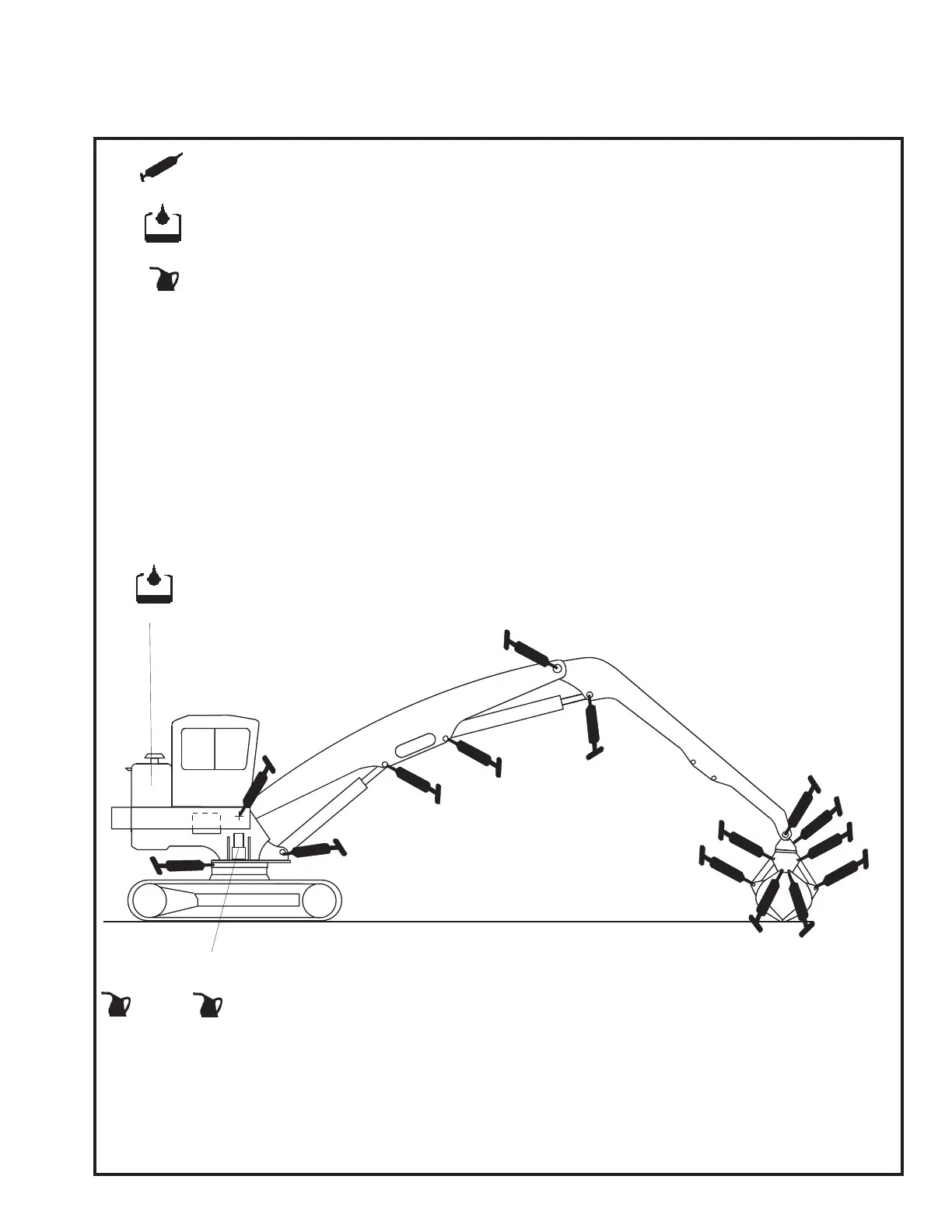

LUBRICATION POINTS
(PERFORM DAILY)
7 Main Boom Pivot
8 Main Boom Cylinder
9 Stick Boom Cylinder
10 Hydraulic Oil Reservoir
11 Swing Motor Gearboxes
12 Crawler Final Drive
9
6
10
7
4
3
2
1
5
8
12
11
8
9
3
3
3
1
