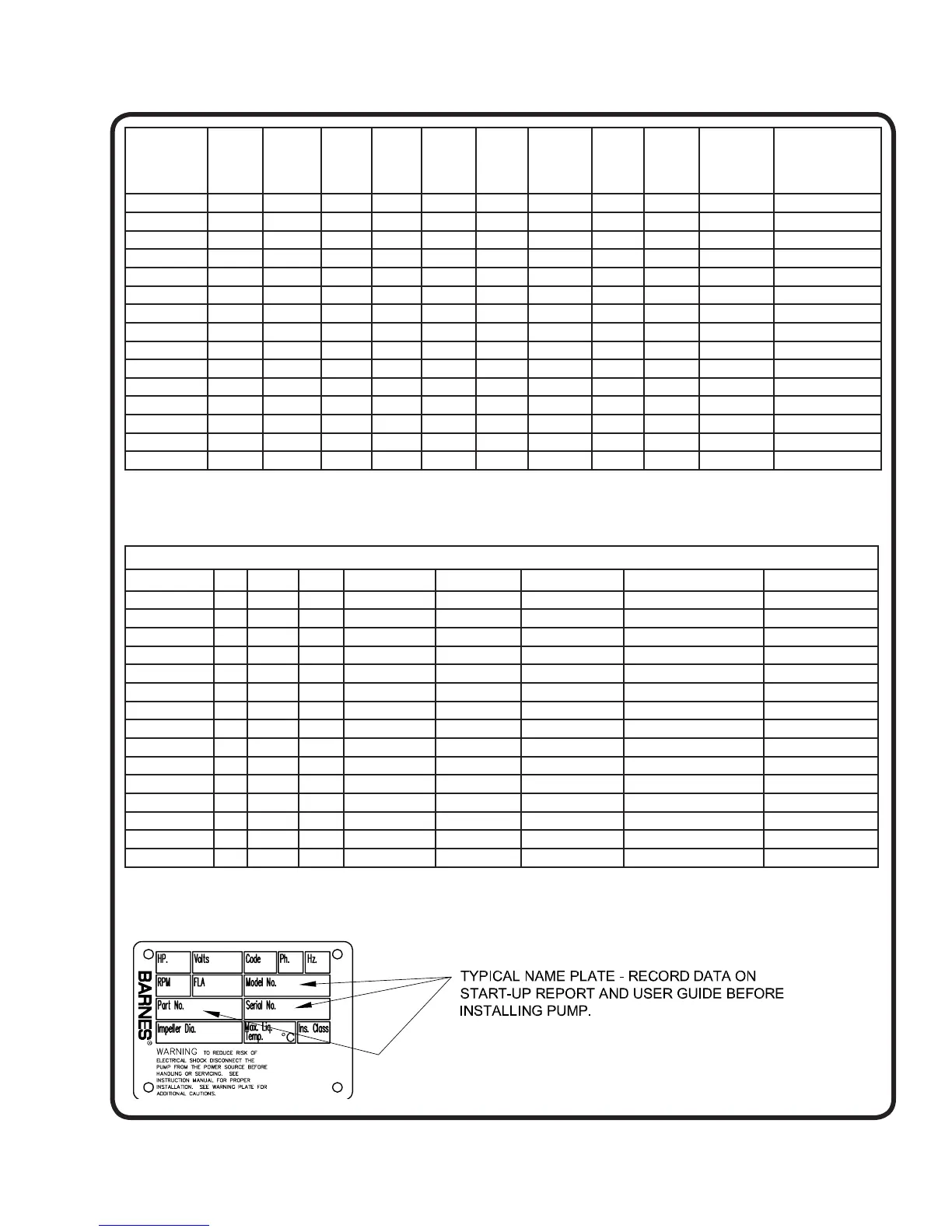

5
MODEL
NO
HP VOLT PH/Hz RPM
(Nom)
NEMA
START
CODE
FULL
LOAD
AMPS
LOCKED
ROTOR
AMPS
CORD
SIZE
CODE
TYPE
CORD
O.D.
± .02 (.5)
in (mm)
WINDING
RESISTANCE
MAIN -- START
SGV3002L 3 200 1 / 60 3450 G 27.0 86.0 10/4 SOW 0.75 (19) 0.8 -- 3.3
SGV3022L 3 240 1 / 60 3450 G 23.0 75.0 10/4 SOW 0.75 (19) 0.8 -- 3.3
SGV3062L 3 200 3 / 60 3450 J 15.0 65.0 10/4 SOW 0.75 (19) 1.4
SGV3032L 3 240 3 / 60 3450 J 13.0 56.6 10/4 SOW 0.75 (19) 1.9
SGV3042L 3 480 3 / 60 3450 J 6.5 28.3 10/4 SOW 0.75 (19) 7.3
SGV3052L 3 600 3 / 60 3450 J 5.2 22.6 10/4 SOW 0.75 (19) 11.6
SGV5002L 5 200 1 / 60 3450 F 42.0 134.0 6/4 SOW 1.03 (26) 0.5 -- 3.2
SGV5022L 5 240 1 / 60 3450 H 39.0 136.0 8/4 SOW 0.93 (24) 0.49 -- 2.18
SGV5062L 5 200 3 / 60 3450 H 25.0 94.0 10/4 SOW 0.75 (19) 0.7
SGV5032L 5 240 3 / 60 3450 H 20.0 81.4 10/4 SOW 0.75 (19) 0.9
SGV5042L 5 480 3 / 60 3450 H 10.0 40.7 10/4 SOW 0.75 (19) 3.8
SGV5052L 5 600 3 / 60 3450 H 8.0 32.5 10/4 SOW 0.75 (19) 5.1
SGV7532L 7.5 240 3 / 60 3450 F 24.0 102.0 10/4 SOW 0.75 (19) 0.9
SGV7542L 7.5 480 3 / 60 3450 F 12.0 51.0 10/4 SOW 0.75 (19) 3.5
SGV7552L 7.5 600 3 / 60 3450 F 9.6 40.8 10/4 SOW 0.75 (19) 0.8
Winding Resistance ± 5%, measured from terminal block. Pump rated for operation at ± 10% voltage at motor.
Optional - Temperature sensor Only, cord for all models is 14/2 SOW, 0.55 (14mm) ± .02 (.5mm) O.D.
Optional - Moisture and Temperature sensor cord for all models is 18/5 SOW, 0.47 (12mm) ± .02 (.5mm) O.D., replaces Temp. sensor cord.
Recommended Breaker & Heater Sizes
Pump Model HP Phase Volts Breaker Size Heater Size Voltage Relay Start Capacitor Run Capacitor
SGV3002L 3 1 200 60 AMP K-64 MARS 66 257 mfd - 220 volts 20 mfd - 370 volts
SGV3022L 3 1 240 50 AMP K-63 MARS 64 257 mfd - 220 volts 20 mfd - 370 volts
SGV3062L 3 3 200 30 AMP K-56 N/R N/R N/R
SGV3032L 3 3 240 30 AMP K-54 N/R N/R N/R
SGV3042L 3 3 480 15 AMP K-41 N/R N/R N/R
SGV3052L 3 3 600 15 AMP K-37 N/R N/R N/R
SGV5002L 5 1 200 100 AMP K-73 MARS 71 189-227 mfd - 220 volts 40 mfd - 370 volts
SGV5022L 5 1 240 80 AMP K-70 MARS 64 189-227 mfd - 220 volts 40 mfd - 370 volts
SGV5062L 5 3 200 50 AMP K-63 N/R N/R N/R
SGV5032L 5 3 240 40 AMP K-62 N/R N/R N/R
SGV5042L 5 3 480 20 AMP K-50 N/R N/R N/R
SGV5052L 5 3 600 15 AMP K-49 N/R N/R N/R
SGV7532L 7.5 3 240 50 AMP K-67 N/R N/R N/R
SGV7542L 7.5 3 480 30 AMP K-54 N/R N/R N/R
SGV7552L 7.5 3 600 20 AMP K-50 N/R N/R N/R
NOTE: Factory recommended heater sizes may vary depending on pump station requirements.
N/R = Not Required.
