6

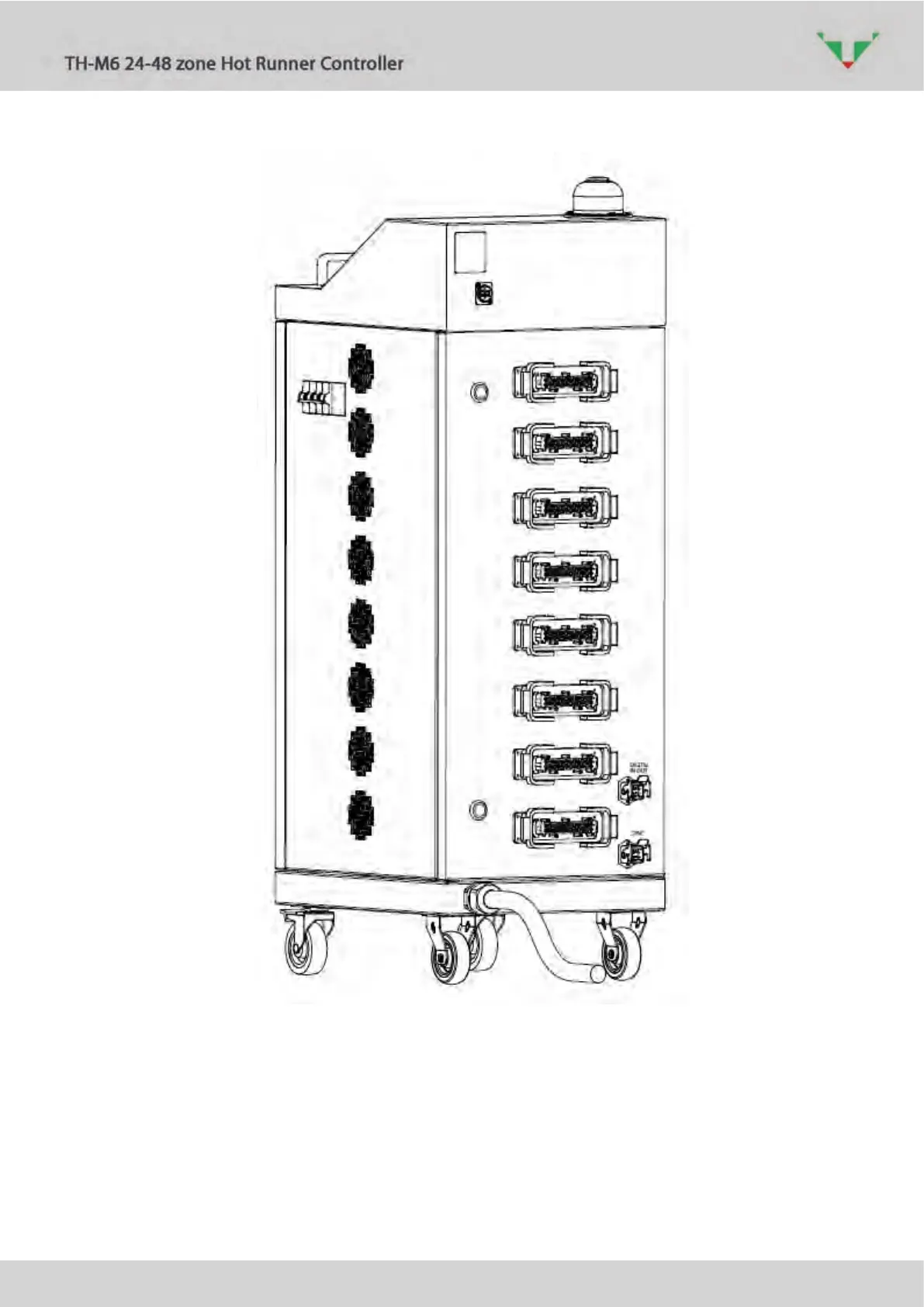

Figure 2
The structure of the temperature controller is visible in figure 1. In function of the number of
zones, 4 - 8 power boards are present. All the boards are connected to the HMI.
This interface allows all the operator procedure as well as the temperature and alarms
supervision of all the loops. The miniature circuit breaker is on the right side of the cabinet.
