4 Product description
ex
22 / 106
Subject to technical modifications
Revision A / 04/2019
4.2.3 Corded hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS with universal supply
module
1
Connection cable BCS 3608
ex
-NI / BCS 3608
ex
-IS
Hand-held scanner BCS 3608
ex
ex
Data cable HMI – universal supply module (RS 232, RS 422, RS 485 or USB)
cable has to be provided by the customer
Universal supply module for hand-held scanners
HMI (approved for a potentially explosive atmosphere)
Table 16 Description of the needed components to build the connection between corded hand-held scanner
BCS 3608
ex
-NI / BCS 3678
ex
-IS with universal supply module
The hand-held-scanner can be connected with 3 different cables to the universal supply module
(see Tab.15).
Universal supply module and connecting cable are not included into the scope of delivery.
The universal supply module for US and Canada can only be used with DC 24 V.

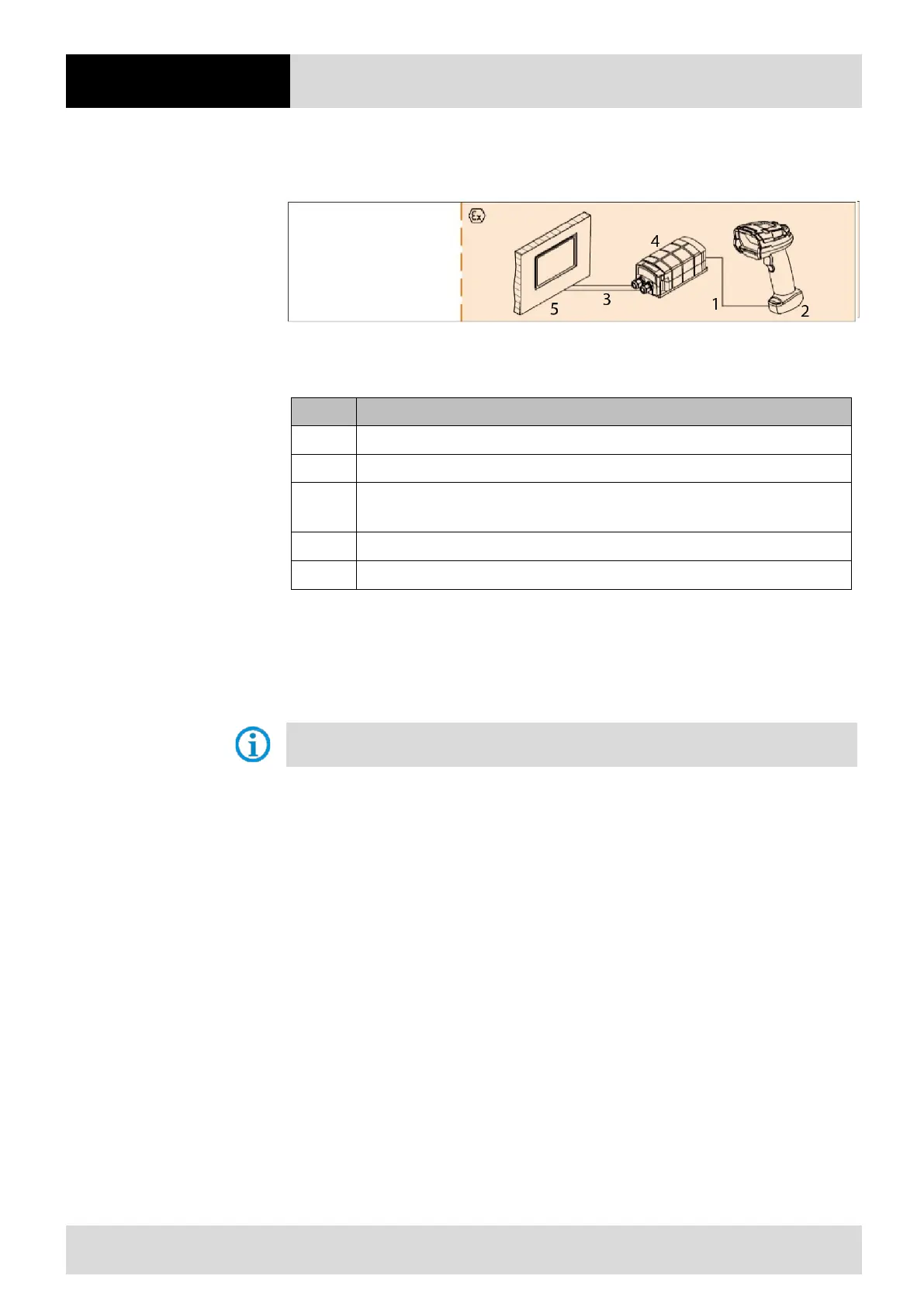

Figure 1 BCS 3608ex-NI / BCS 3608ex-IS hand-held scanner with universal supply module in a potentially
explosive atmosphere and HMI
Figure 4 Hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS with universal supply module in a potentially
explosive atmosphere and HMI
