Bartec BCS36 8ex Series User Manual

7 Connection /
commissioning (qualified
personnel)
Handscanner
BCS 3600
ex
series
76 / 106
Subject to technical modifications
Revision A / 04/2019

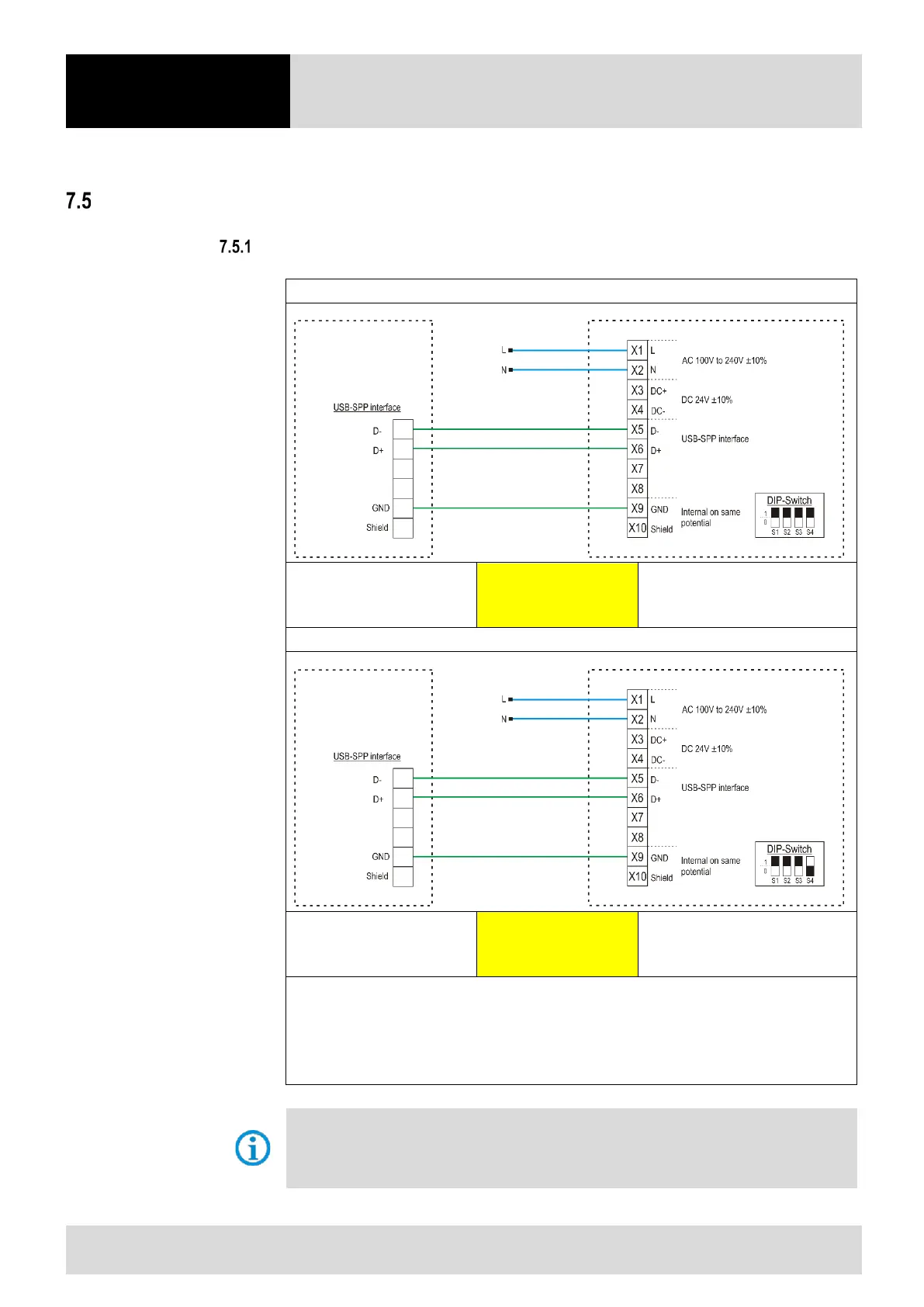

Wiring diagram for Universal Supply Module (USM)
USM with USB-SPP Interface
USM-Bluetooth with USB-SPP
PC/Host with USB Interface
USB-SPP = Serial Port Profile
USB = virtual serial COM port
Max. cable length is 5 m USM-Bluetooth
USM-corded with USB-SPP
PC/Host with USB Interface
USB-SPP = Serial Port Profile
USB = virtual serial COM port
Max. cable length is 5 m USM-corded
Wiring:
Blue wire  necessary (example connection to AC)
Green line  necessary
For data cables, we strongly recommend to use shielded (e.g. CAT5, similar or higher quality)
cables.
Dip-Switch:
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
S4 = 1 = Bluetooth Version
