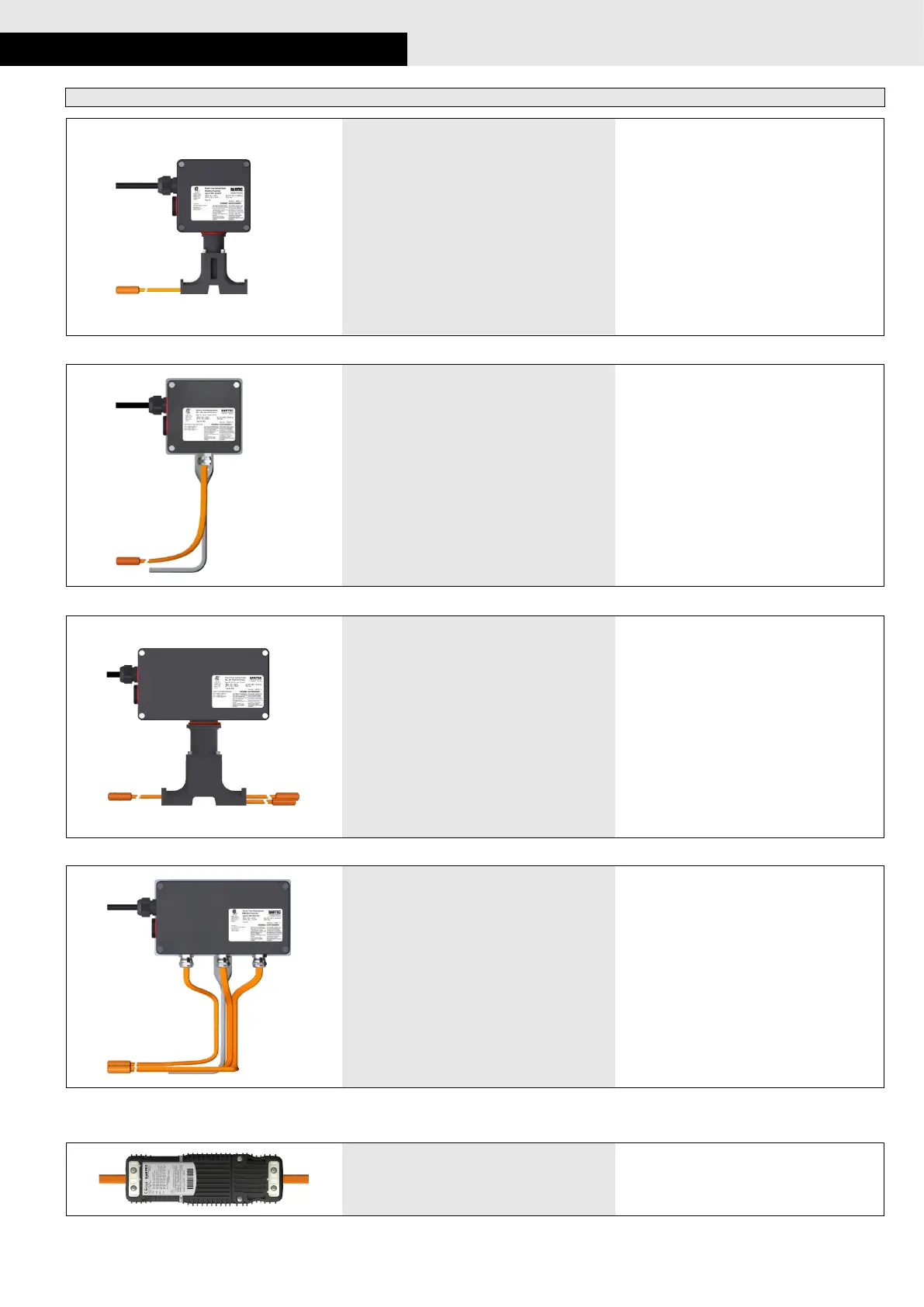

Power connection, splice and junction components

PBS-200-E/E10 Single power entry con-

nection kit "on pipe"

For connection of a trace heater inside a junction

box. Includes a mounting stand for on-pipe instal-

lation and a silicone end seal.

Maximum power conductor size:

PBS-200-E 6 mm²

PBS-200-E10 10 mm²

2 pipe straps per stand required.

For a complete list of kit contents and approvals see

data sheet.

PBS-200-E:

Catalog No.: PBS-200-E

Part No.: 27-54P2-42221B10

PBS-200-E10:

Catalog No.: PBS-200-E10

Part No.: 27-54P2-43223B10

PBS-300-E/E10 Single power entry con-

nection kit "off pipe"

For connection of a trace heater inside a

junction box. Includes a mounting stand for

off-pipe installation and a silicone end seal.

Maximum power conductor size:

PBS-300-E 6 mm²

PBS-300-E10 10 mm²

2 pipe straps per stand required.

For a complete list of kit contents and approvals see

data sheet.

PBS-300-E:

Catalog No.: PBS-300-E

Part No.: 27-54P2-42111B10

PBS-300-E10:

Catalog No.: PBS-300-E10

Part No.: 27-54P2-43113B10

PBM-200-E/E10 Multiple power entry con-

nection kit "on pipe"

For connection of up to 3 trace heaters inside

a junction box. Includes a mounting stand for

on-pipe installation and 2 silicone end seals.

Maximum power conductor size:

PBM-200-E 6 mm²

PBM-200-E10 10 mm²

2 pipe straps per stand required.

For a complete list of kit contents and approvals see

data sheet.

PBM-200-E:

Catalog No.: PBM-200-E

Part No.: 27-54P2-44331B10

PBM-200-E10:

Catalog No.: PBM-200-E10

Part No.: 27-54P2-45333B10

PBM-300-E/E10 Multiple power entry con-

nection kit "off pipe"

For connection of up to 3 trace heaters inside

a junction box. Includes a mounting stand for

off-pipe installation and 2 silicone end seals.

Maximum power conductor size:

PBM-300-E 6 mm²

PBM-300-E10 10 mm²

2 pipe straps per stand required.

For a complete list of kit contents and approvals see

data sheet.

PBM-300-E:

Catalog No.: PBM-300-E

Part No.: 27-54P2-44311B10

PBM-300-E10:

Catalog No.: PBM-300-E10

Part No.: 27-54P2-45313B10

PLEXO-TCS Low profile in-line splice

In-line splice kit for connections below the in-

sulation and cladding. The kit is re-enterable

Catalog No.: PLEXO-TCS

Part No.: 27-59P2-0110
