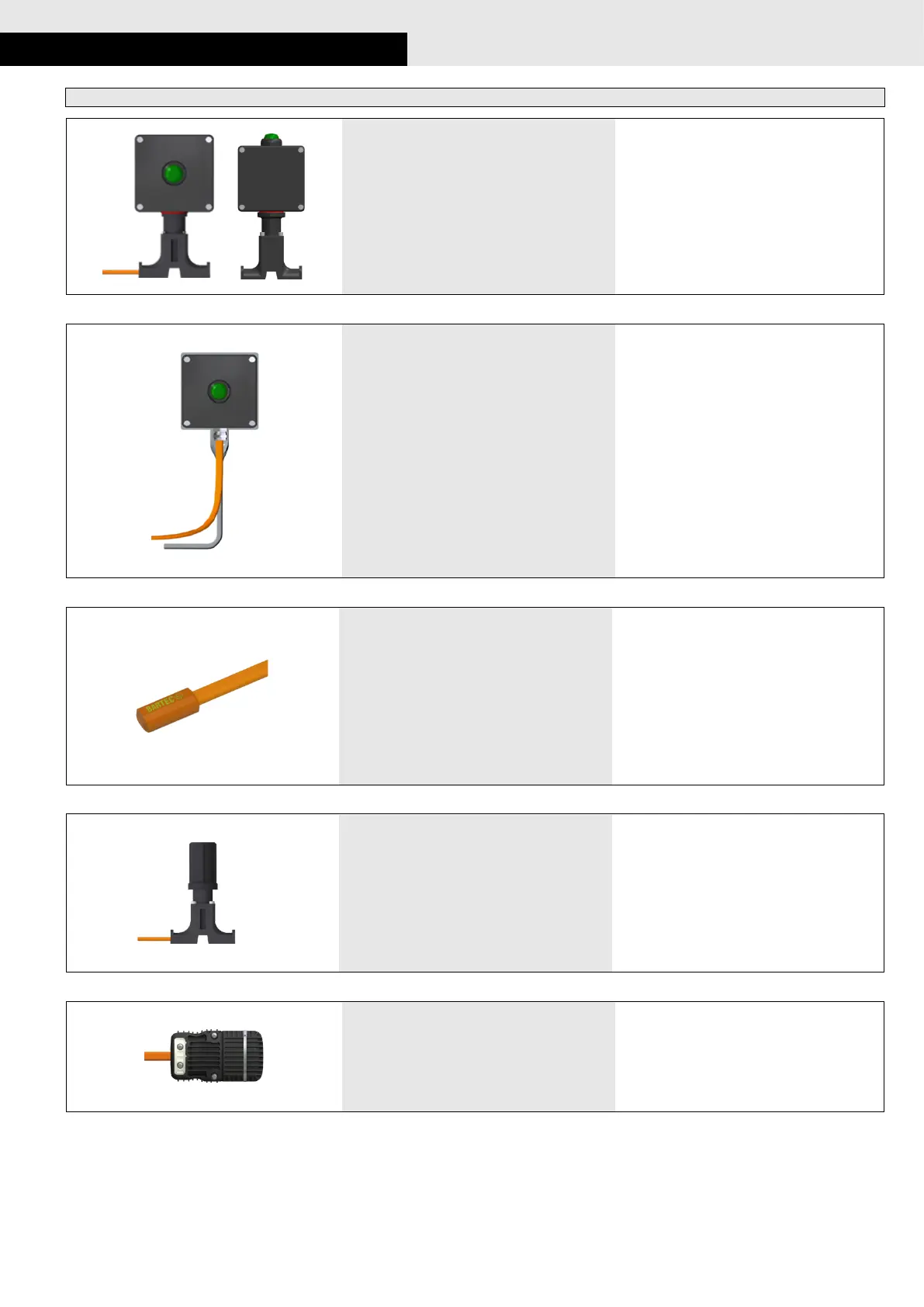

End termination
ELL-200 End of line lamp
End of line lamp for connection of a trace
heater. Includes a mounting stand for on-pipe
installation. The kit is approved for Zone 1
and Zone 2 areas.
2 pipe straps per stand required.
For a complete list of kit contents and approvals see
data sheet.
Catalog No.: ELL-200-E
Part No.: 27-54E2-4212/F210
Option top light available on request.
ELL-300 End of line lamp
End of line lamp for connection of a trace
heater. Includes a mounting stand for off-pipe
installation. The kit is approved for Zone 1
and Zone 2 areas.
2 pipe straps per stand required.
For a complete list of kit contents and approvals see
data sheet.
Catalog No.: ELL-300-E
Part No.: 27-54E2-4211/F210
CAK-E5/E10 Cold applied end seal
Silicone end seal for insulation of the end of
the trace heater. Suitable to all Bartec paral-
lel trace heating cable. Approved accordingly
IECEx, ATEX, CSA (ordinary and hazardous
locations)
CAK-E5 5 pcs.
CAK-E10 10 pcs.
CAK-E5:
Catalog No.: CAK-E5
Part No.: 27-59CZ-90000005
CAK-E10:
Catalog No.: CAK-E10
Part No.: 27-59CZ-90000010
ELS-200 high profile end seal
End seal for access above the insulation.
2 pipe straps per mounting stand required.
For a complete list of kit contents and approvals see
data sheet.
Catalog No.: ELS-200
Part No.: 27-54E2-AA12A000
Plexo TCS end seal
Plug-in end seal for easy connection of trace
heaters
Catalog No.: PLEXO-TCS
Part No.: 27-59P3-0010
