Design Guide for Hazardous / Industrial
Self-regulating trace heating systems
21-1S00-7D0001/-
05/2023-EHT-466853
Notice Technical data subject to change without notice.
No claims for damage arising from alternations, errors or misprints shall be allowed.
Page 32 / 42

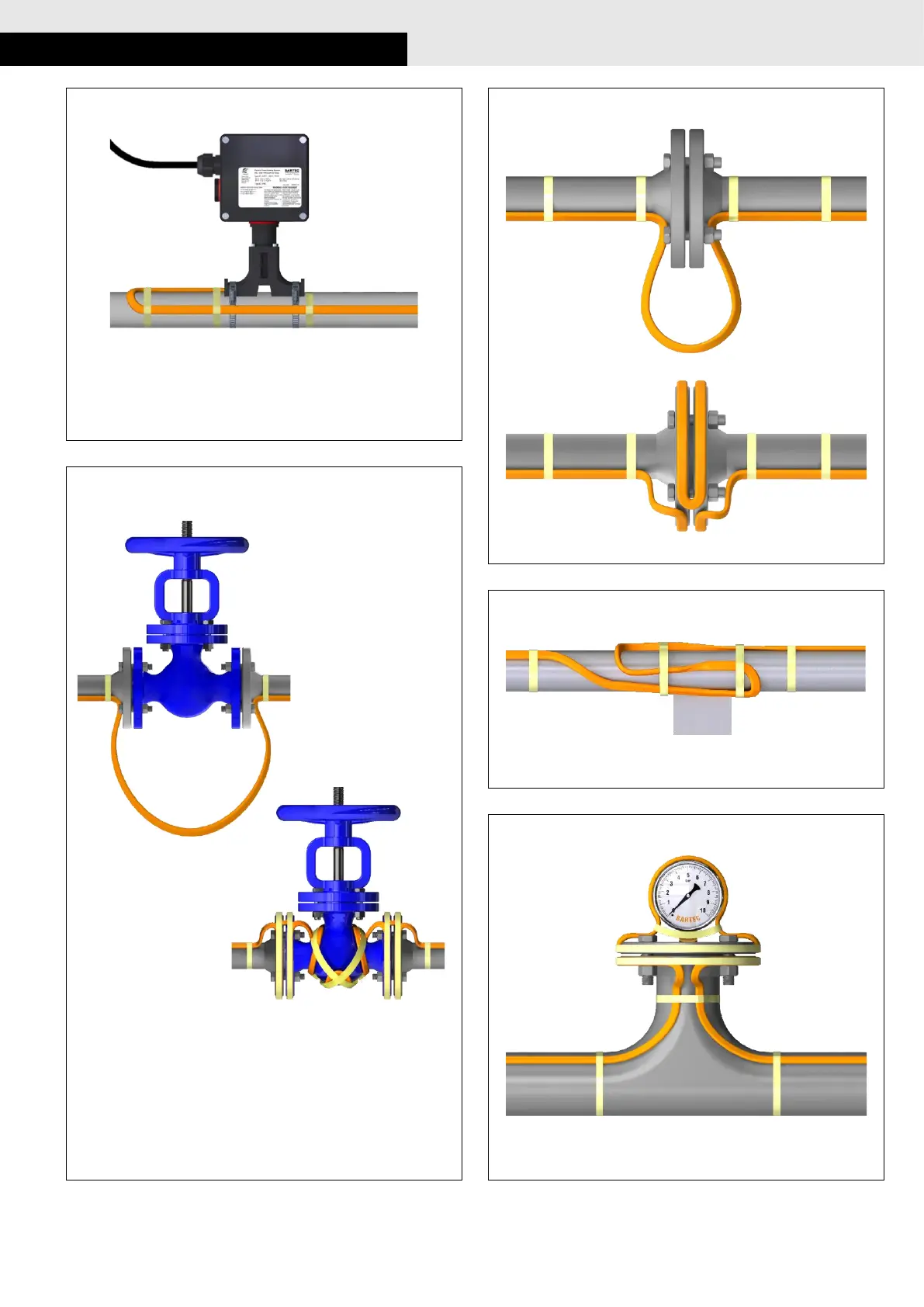

 Installation of service loops on components:
 Installation on valves:

 Installation on flanges:
 Installation on pipe supports:
 Installation on pressure gauges:
