Barton 95541 - ASSEMBLY; Tank Installation; Gas Hook-Up

ASSEMBLY
3 4

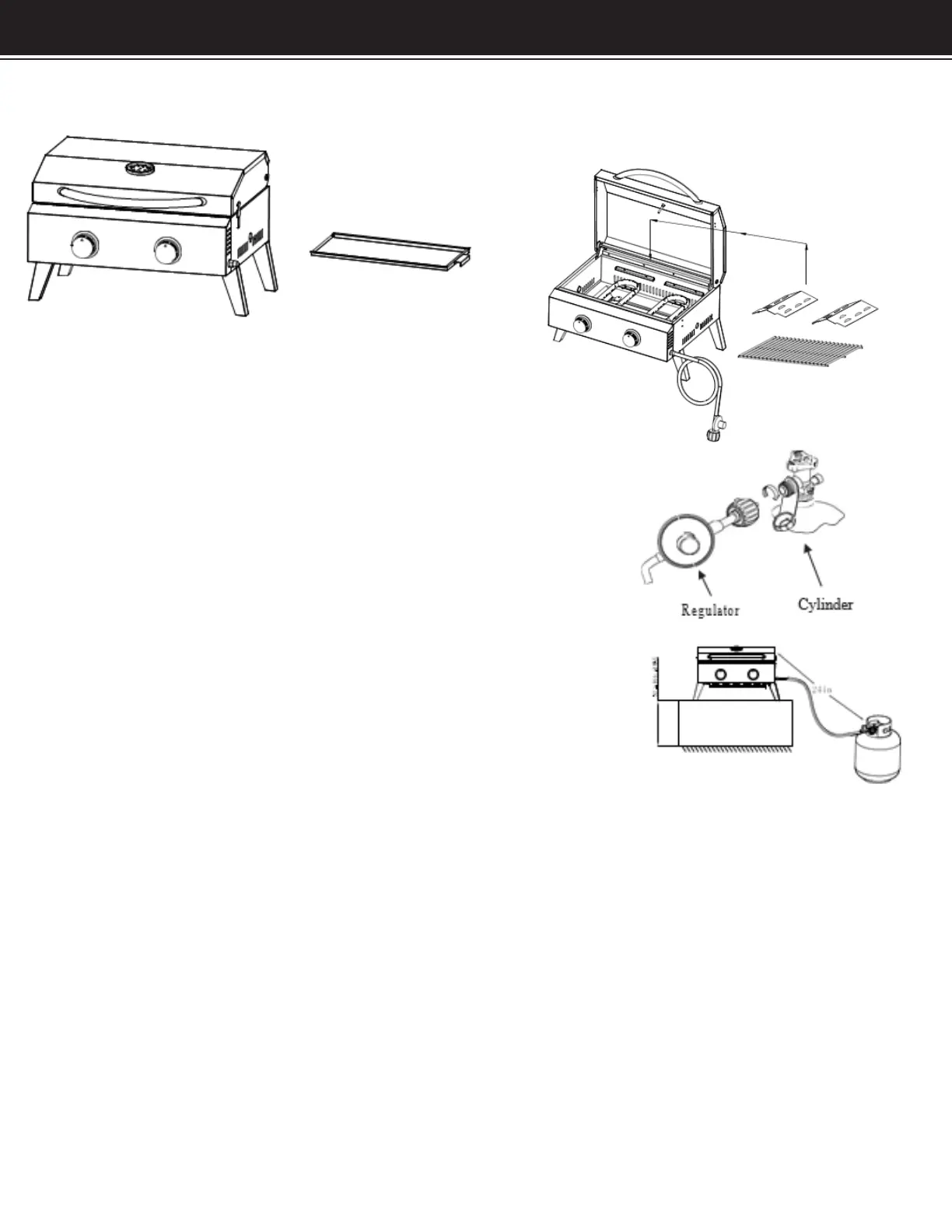

Fig 1: Install the grease tray under the rebox as
shown below.
Fig 2: Put the ame tamer on the burner then put
the grid on the rebox. Connect he gas hose to the
unit tightly as shown below.
TANK INSTALLATION
If the outdoor cooking appliance is not
in use, the gas must be turned “OFF” at the Liquid Propane Cylinder.
If the outdoor cooking gas appliance is not in use, the gas must be
turned o󰀨 at the supply cylinders. Storage of an outdoor cooking
gas appliance Indoor is permissible only if the cylinder(s) is/are
Disconnected and removed from the outdoor cooking gas appliance.
Cylinder(s) must be stored outdoors out of the reach of children and
must not be stored in a building, garage or any other enclosed area.
Cylinder(s) used must include a collar to protect the cylinder valve.
The specic size and capacity of 20lb. L.P. cylinder (18-1/4” (46.35cm)
high, 12-1/4” (31cm) diameter) Cylinder(s) to be used only.
Note: Always keep the cylinder at 90° (upright) orientation to provide vapor withdraw. Keep the fuel supply hose
away from any heated surface(s).
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap
on the cylinder valve outlet that is provided with the cylinder valve. Other types of cap or plugs may result in
leakage of propane.
GAS HOOK-UP
Only the pressure regulator and hose assembly suitable for the grill should be used. Any replacement pressure
regulator and hose assembly must be specied by the grill manufacturer.
This grill is congured for Propane, butane or LPG. Do not use a Natural Gas supply. Total gas consumption (per
hour) with all burners set on “HI”:
Main burners 20,000BTU(5.8kw).
Total 20,000BTU(5.8kw).
