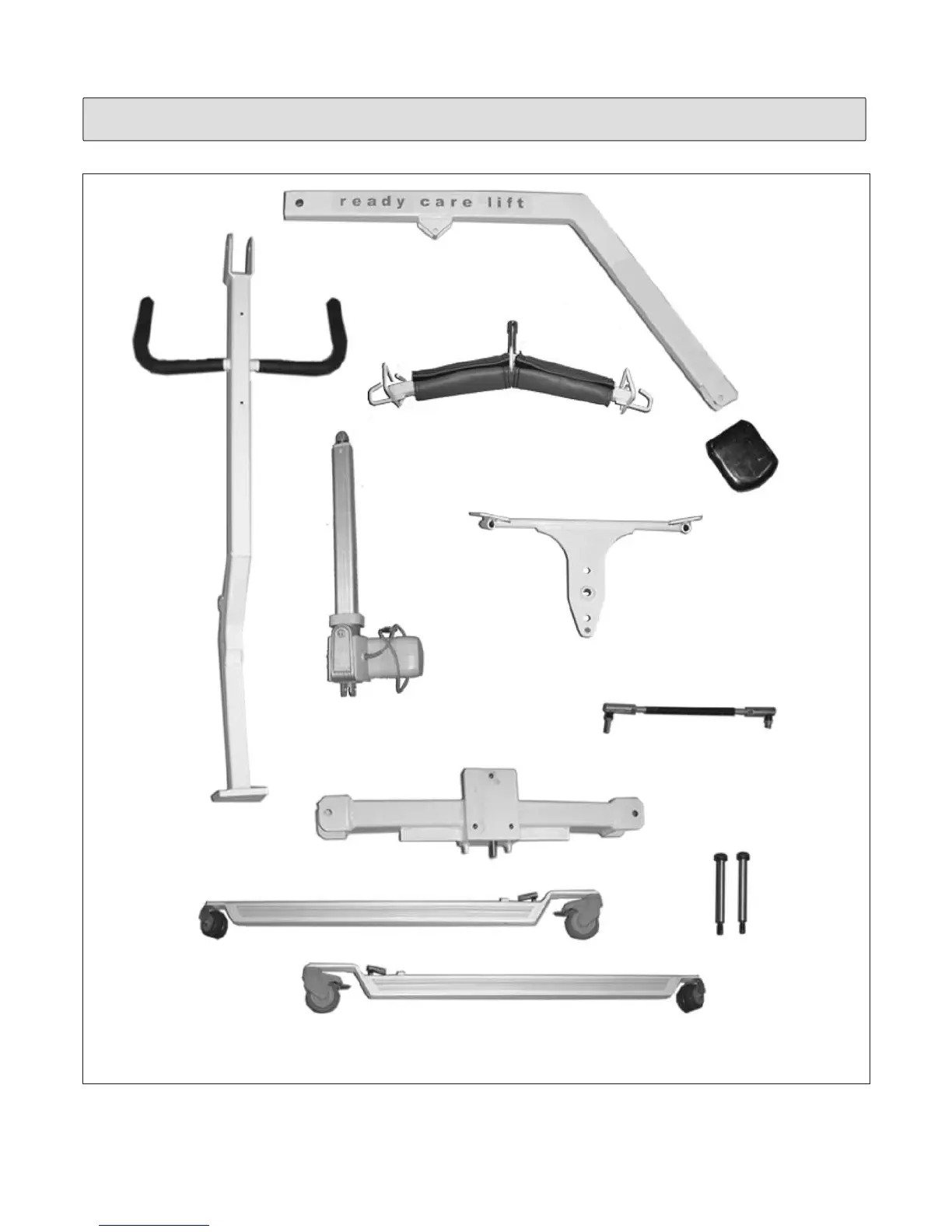

Barton RCL-6002 - Ready Care Lift - Major Components

Mast
101-901
(Bariatric 101-081B)
(Car Lift 102-669)
1/2” x 3 1/2”
Shoulder
Bolt For Leg
(100-021)
Hanger Assembly
(see detail view)
Foot Pedal (101-065)
(Bariatric 101-065B)
(Lift Arm 101-074)
(Bariatric Arm 101-074B)
(Ready Car Lift Arm 102-671)
Boom End Cover
(100-039)
350 mm Actuator
(400-131)
Tie Rod Assembly
(see detail view)
Main Frame (101-080)
(Bariatric 101-080B)
Leg (101-072)
(Bariatric 101-072B)
4” Locking Caster
(100-010)
3” Swivel Caster
(100-012)
READY CARE LIFT - MAJOR COMPONENTS
