Barton RCL-6002 - Hanger Assembly - Detail View

Hanger Cover (101-045)
Retaining Clip (100-049)
Hanger (101-173)
1.015 id x 1.5 od Nylon Washer (100-072)
Hanger Pin (100-070)
1/2" Tie Rod End (Long)
(100-007)
1/2" Tie Rod End (Long)
(100-007)
1/2" Threaded Rod with Cover
(100-008)

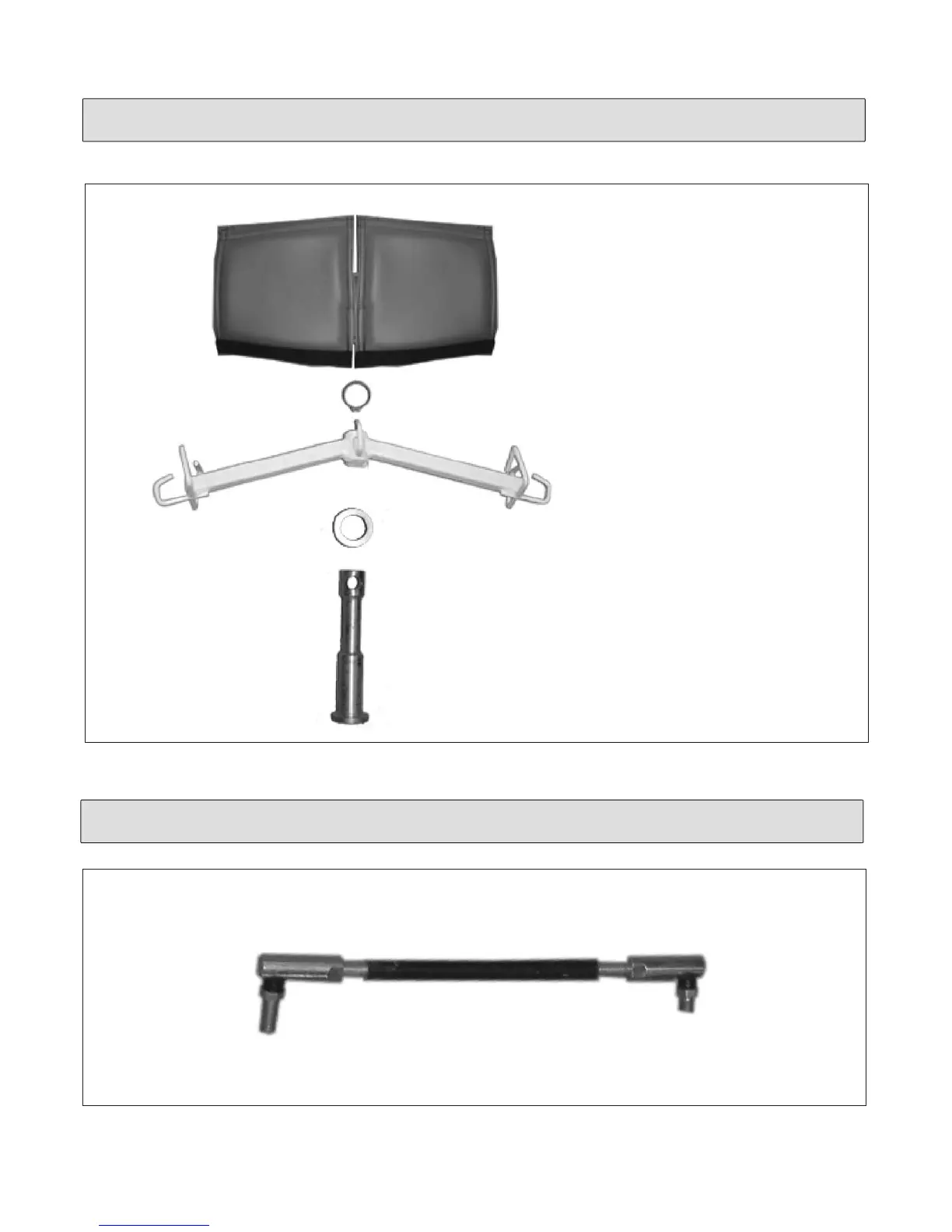

HANGER ASSEMBLY - DETAIL VIEW
TIE ROD ASSEMBLY - DETAIL VIEW
