Power supply
12V, 2A

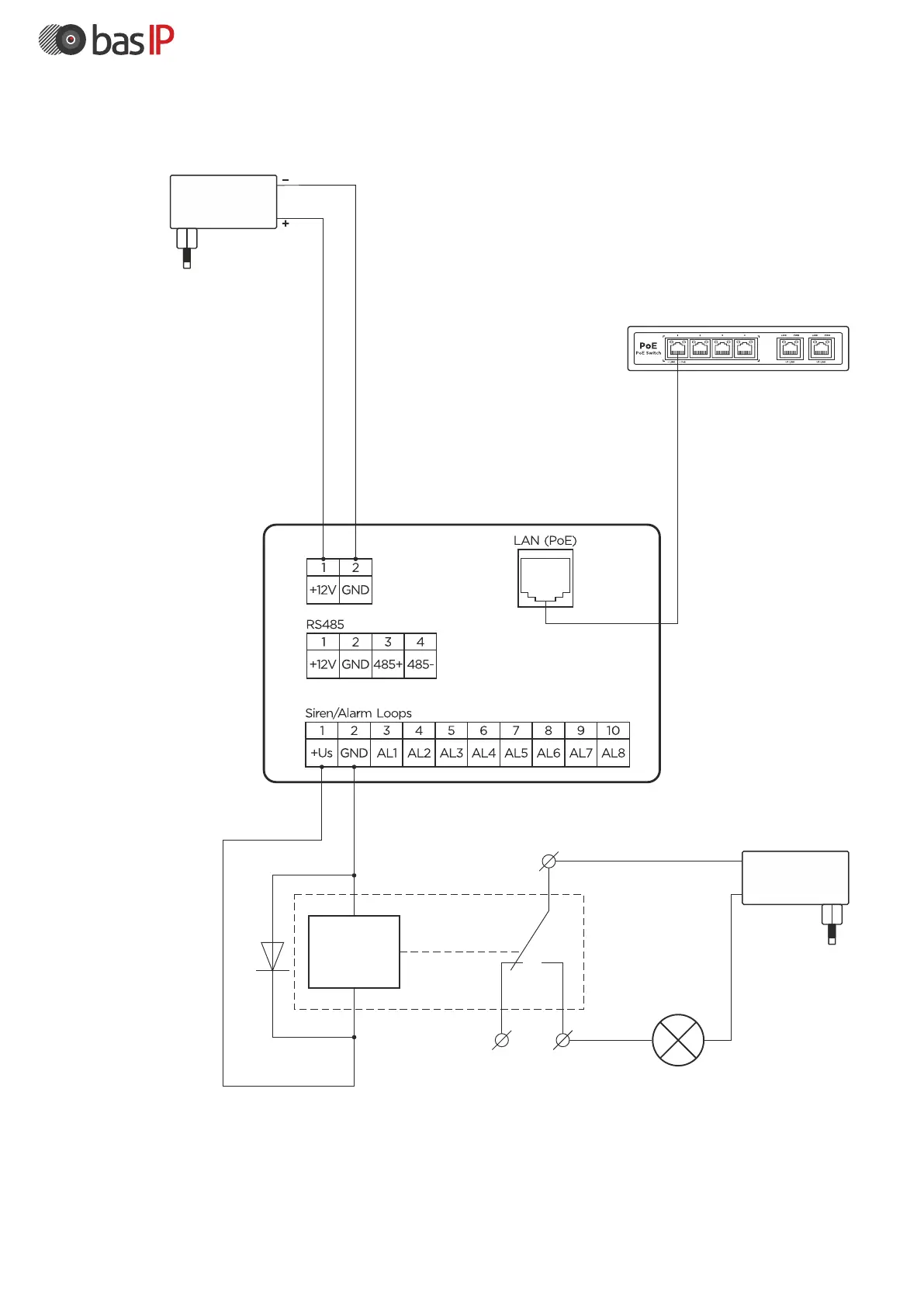

Using the siren output as a controlled output, to control devices
or any other external load with high current consumption
Supply
Power supply
for external load
Powerful external load with
a current consumption
of more than 0.35A
VD
K1
K1.1
External relay 12 Volt,
current consumption
less than 0.35A
Switch
