basIP AZ-07L - Page 5

Supply
Bell button
normal
+12V
Button SH-45
+12V
Button SH-45T
Lock
+12V
Bell button
SH-46T
Lock
+12V
Universal button
SH-47T
Lock
+12V
485+
485-
Expansion module
SH-16
Power supply
12V, 2A
Switch
EAN: 5060514915332 (WHITE)EAN: 5060514915301 (BLACK)

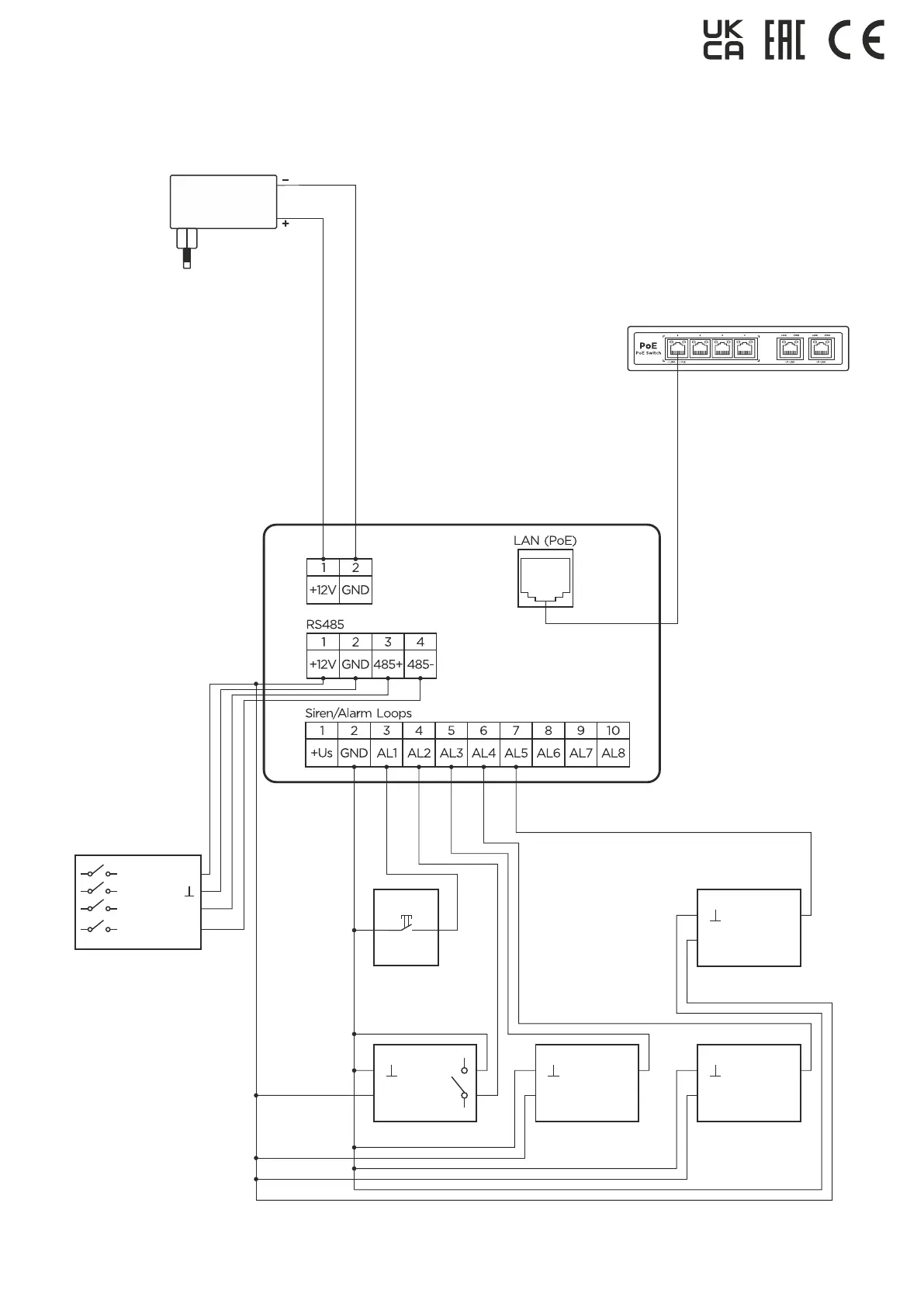

Wiring diagram using various types of buttons connected
to alarm loops, and using them as a «Call Button»
