1-6 BE1-50/51B-218/-228 General Information 9252000995 Rev G

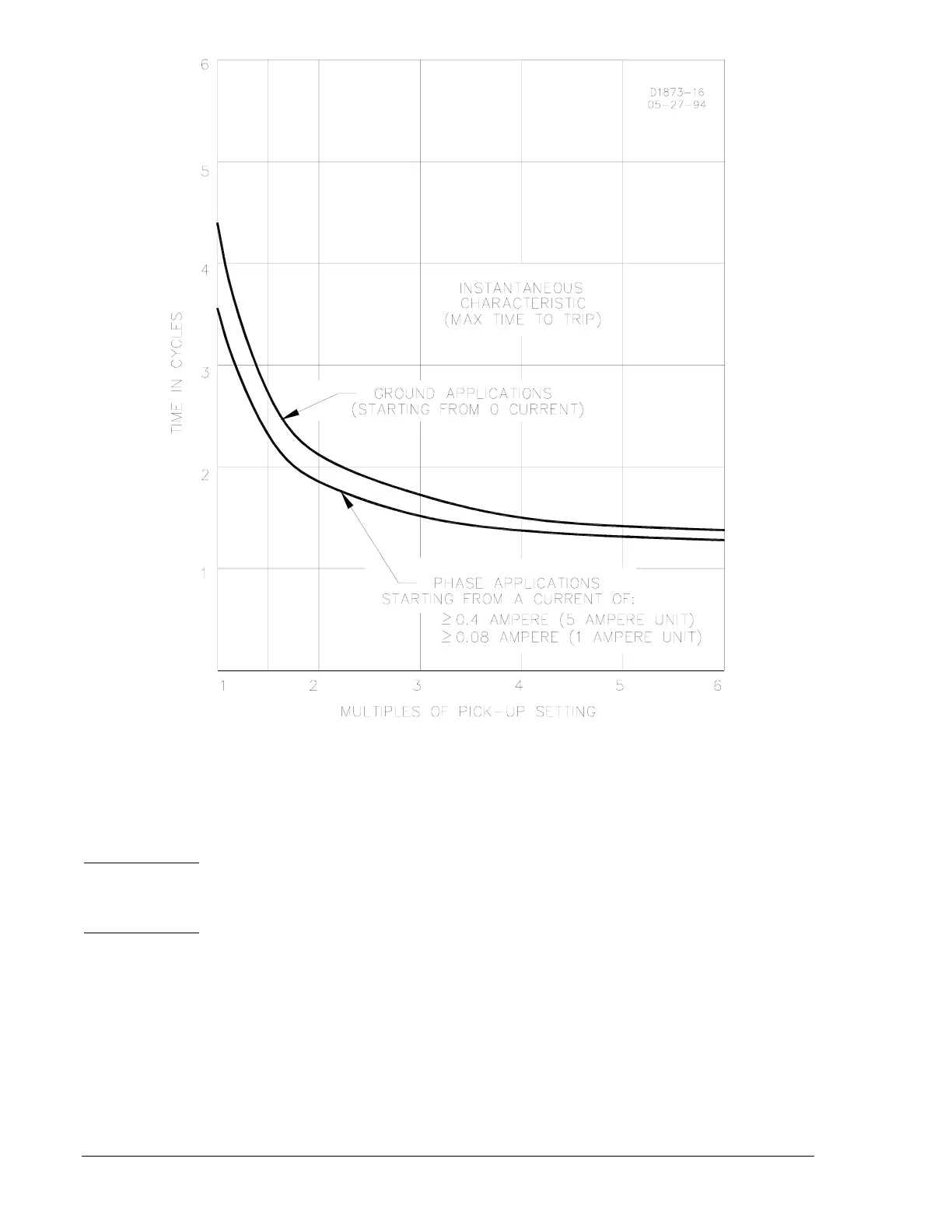

Figure 1-2. Instantaneous Characteristic Curves
Burden
Burden is non-linear. Figure 1-3 illustrates the device burden.
BE1-50/51B-218
At 0.5 amperes: 4.8 Ω
At 5.0 amperes: 0.2 Ω
BE1-50/51B-228
At 0.1 ampere: 120 Ω
At 1.0 ampere: 5 Ω
