4-2 BE1-50/51B-218/-228 Installation 9252000995 Rev G

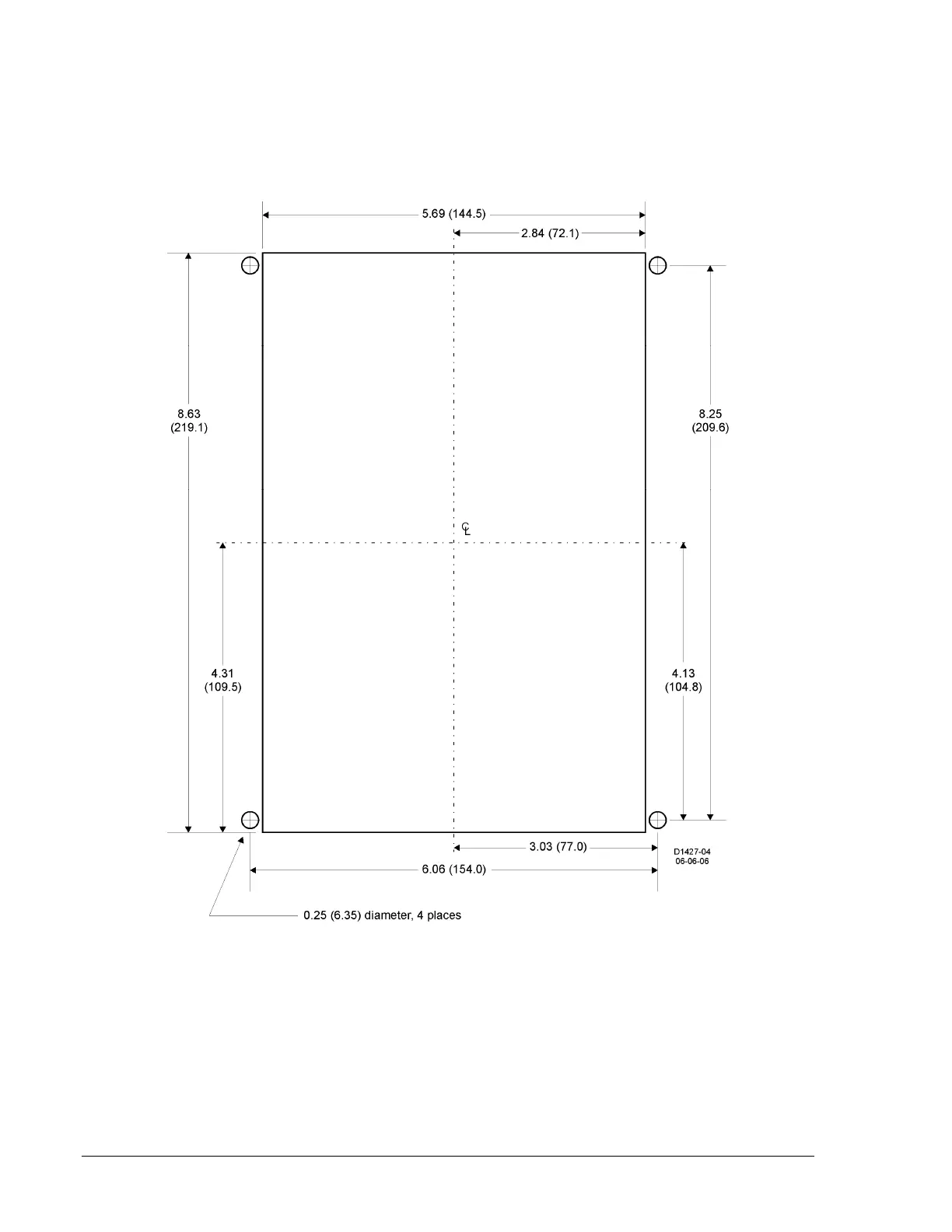

Figure 4-2. Panel Drilling Diagram for S1 Case, Semi-Flush Mounting
