9469300994 1-1
DGC-2020HD Mounting
1 • Mounting
DGC-2020HD controllers are delivered in sturdy cartons to prevent shipping damage. Upon receipt of a
unit, check the part number against the requisition and packing list for agreement. Inspect for damage,
and if there is evidence of such, immediately file a claim with the carrier and notify the Basler Electric
regional sales office or your sales representative.
If the device is not installed immediately, store it in the original shipping package in a moisture- and dust-
free environment.
DGC-2020HD controllers may be mounted in one of three configurations depending on style: Front Panel,
DIN Rail, or Rear Panel. These configurations are described in the following paragraphs.
Front Panel Configuration
Units with styles xNxxxxxxx and xTxxxxxxx are mounted through the panel. Four permanently attached
10-24 studs are provided for mounting. The front panel HMI is resistant to moisture, salt fog, humidity,
dust, dirt, and chemical contaminants and faces outward for easy access.
Hardware
The torque applied to the mounting hardware should not exceed 20 inch-pounds (2.2 newton meters).
Dimensions
For Front Panel mounting, panel cutting and drilling dimensions are shown in Figure 1-1. All dimensions
are shown in inches with millimeters in parenthesis.

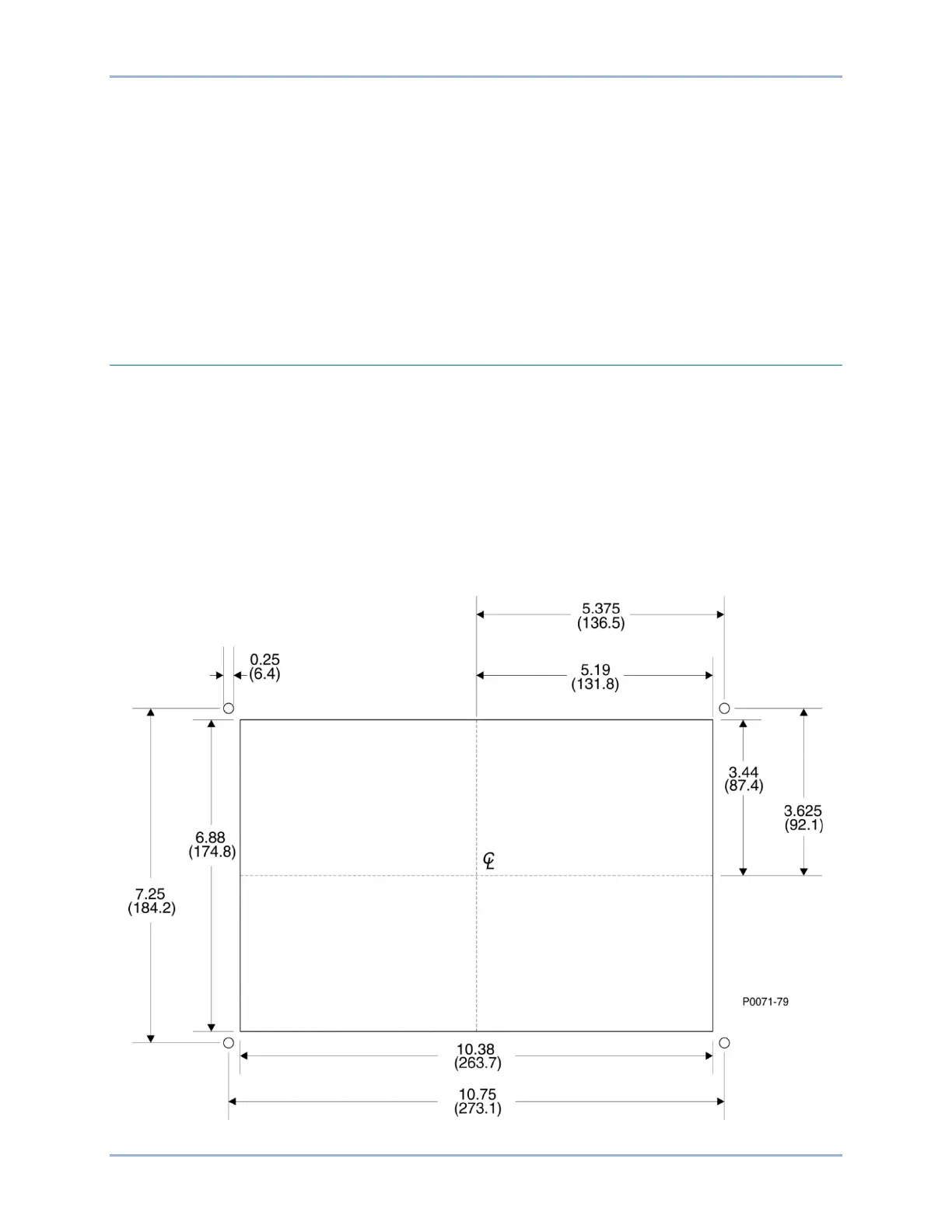

Figure 1-1. Panel Cutting and Drilling Dimensions
