1-4 9469300994
Mounting DGC-2020HD

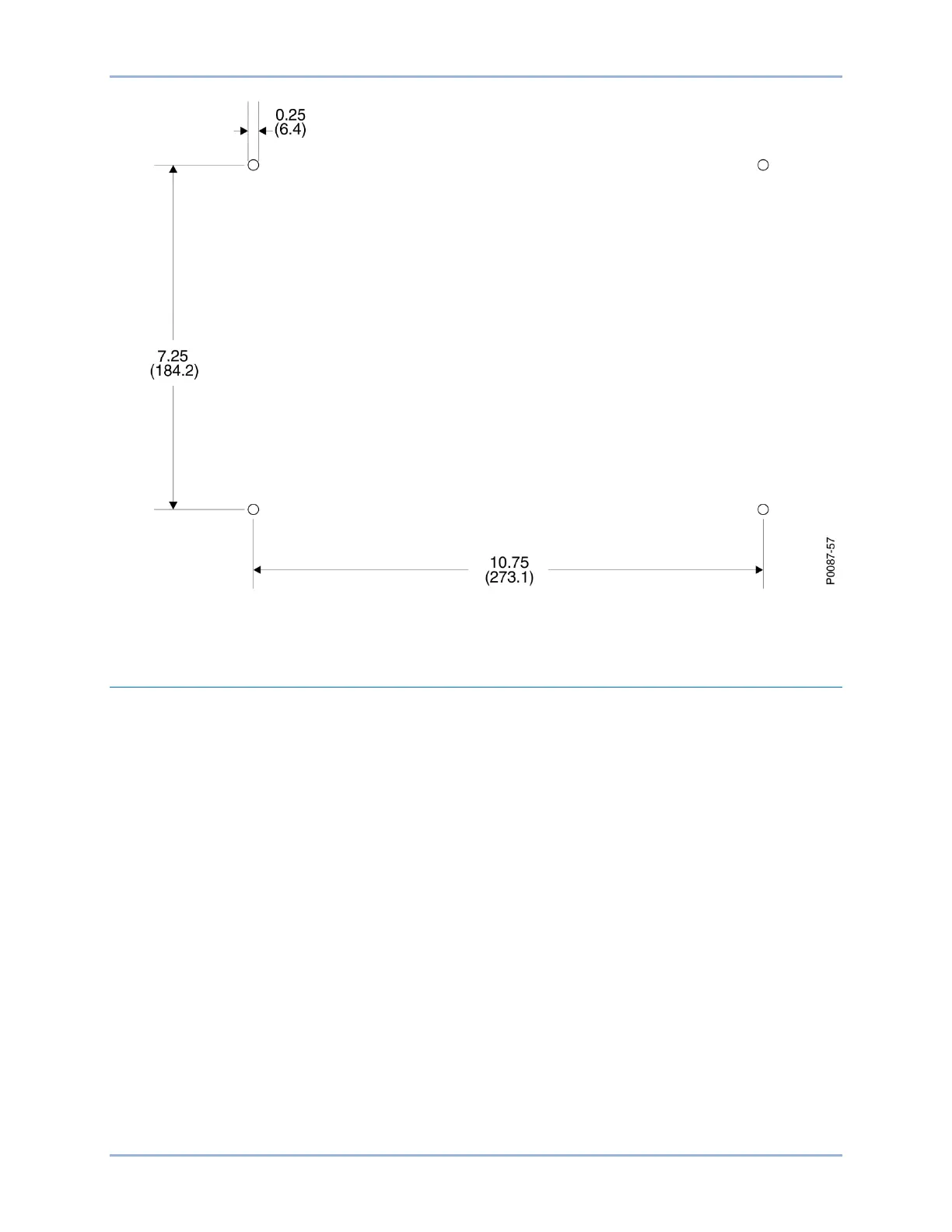

Figure 1-4. Rear Panel Drilling Dimensions for Style xPxxxxxxx
Overall Dimensions
Overall dimensions are shown in Figure 1-5. All dimensions are shown in inches with millimeters in
parenthesis.
