DGC-2020HD Mounting

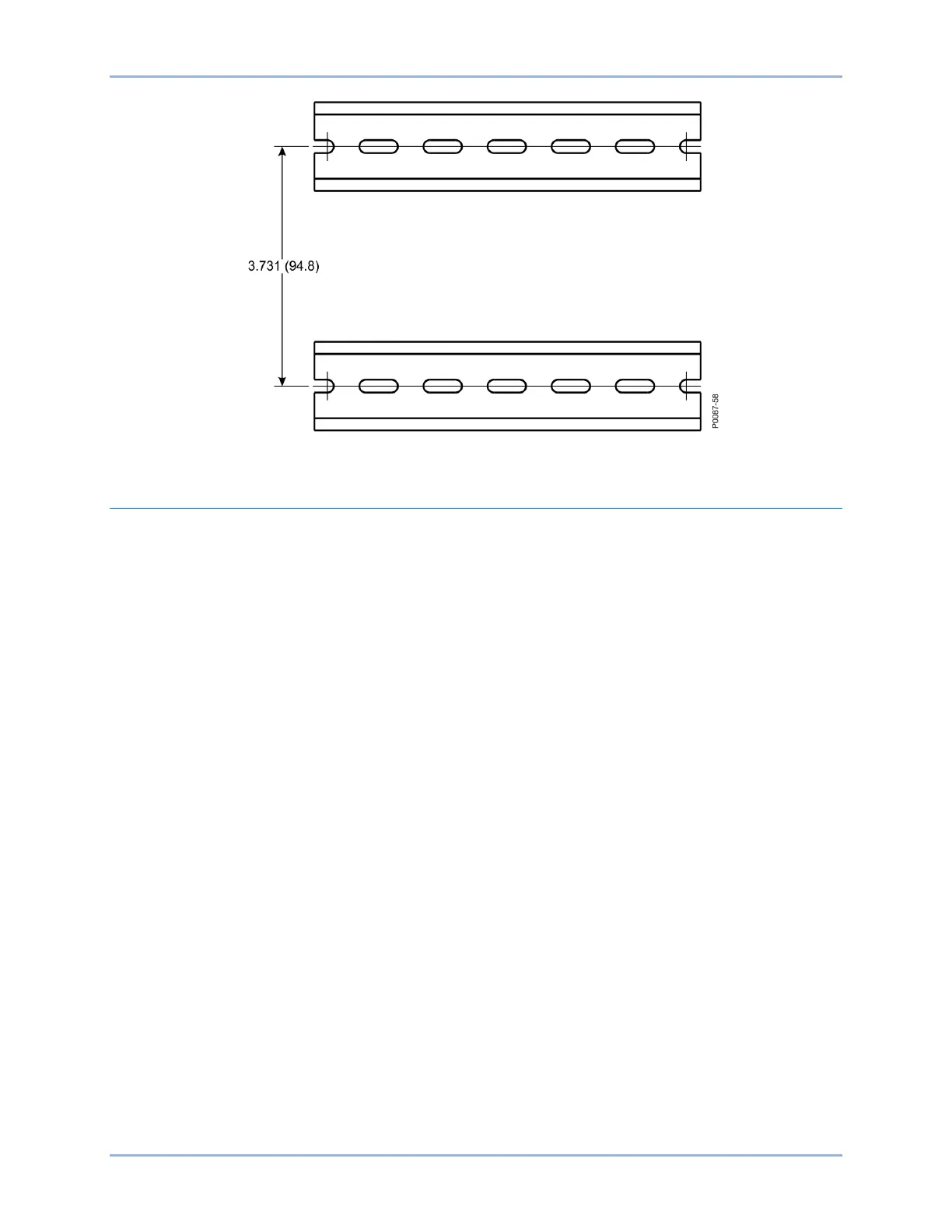

Figure 1-3. DIN Rail Mounting Dimensions for Style xRxxxxxxx
Rear Panel
Units with style xPxxxxxxx are mounted flush against a panel. In this configuration, the DGC-2020HD has
no HMI. Four clearance holes are provided for mounting. The rear of the DGC-2020HD faces outward for
convenient access to terminals and connections.
Hardware
Use four #10 screws with appropriate hardware. The torque applied to the mounting hardware should not
exceed 20 inch-pounds (2.2 newton meters).
Dimensions
For Rear Panel mounting, panel drilling dimensions are shown in Figure 1-4. All dimensions are shown in
inches with millimeters in parenthesis.
