Typical Applications DGC-2020HD

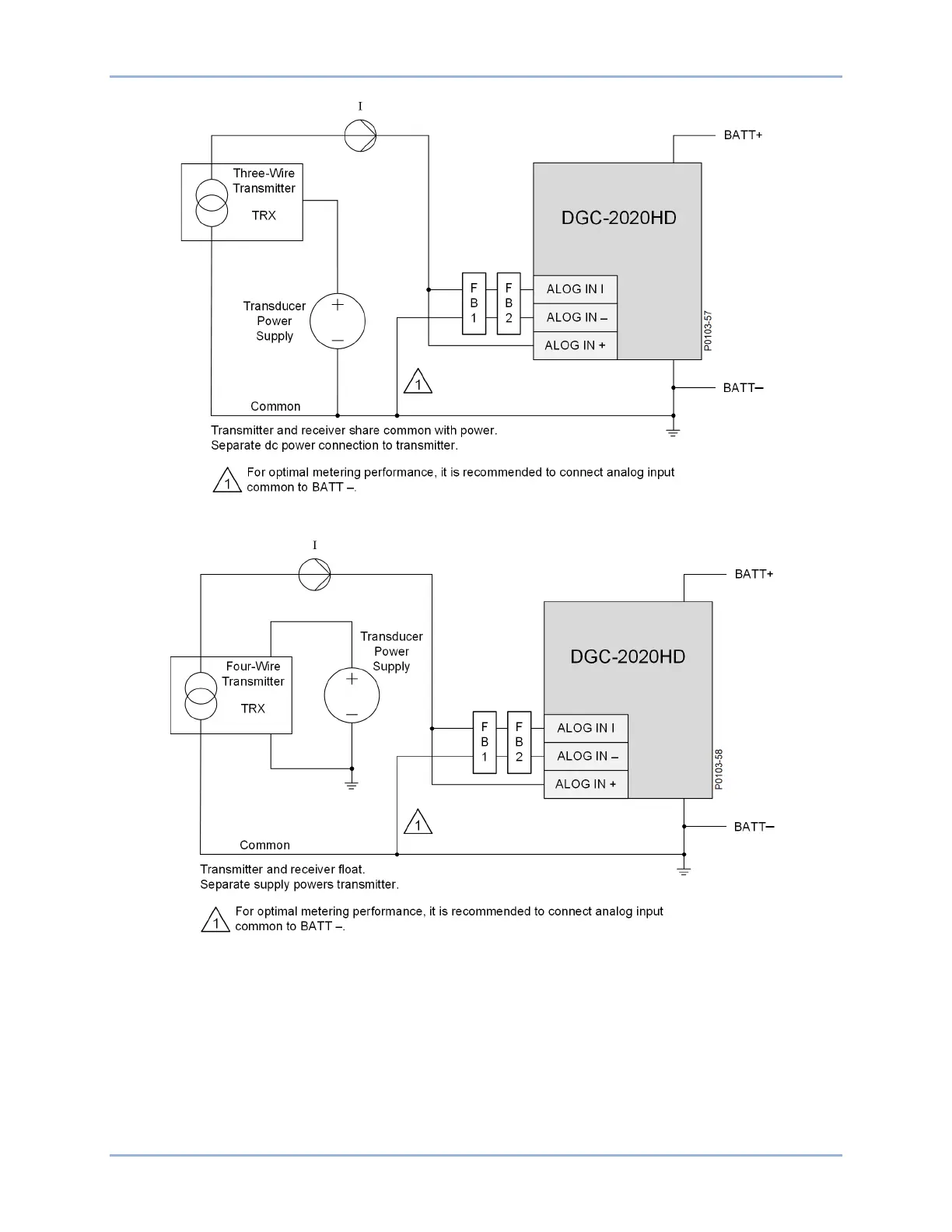

Figure 3-23. Analog Inputs, Current Input Connections, Type III 2-Wire Current Loop Circuit
Figure 3-24. Analog Inputs, Current Input Connections, Type IV 2-Wire Current Loop Circuit
