Basler V3E Z1P B2C1F - Page 81

9137200997 Rev D BE1-51 Time Overcurrent Characteristic Curves A-19
P0049-34

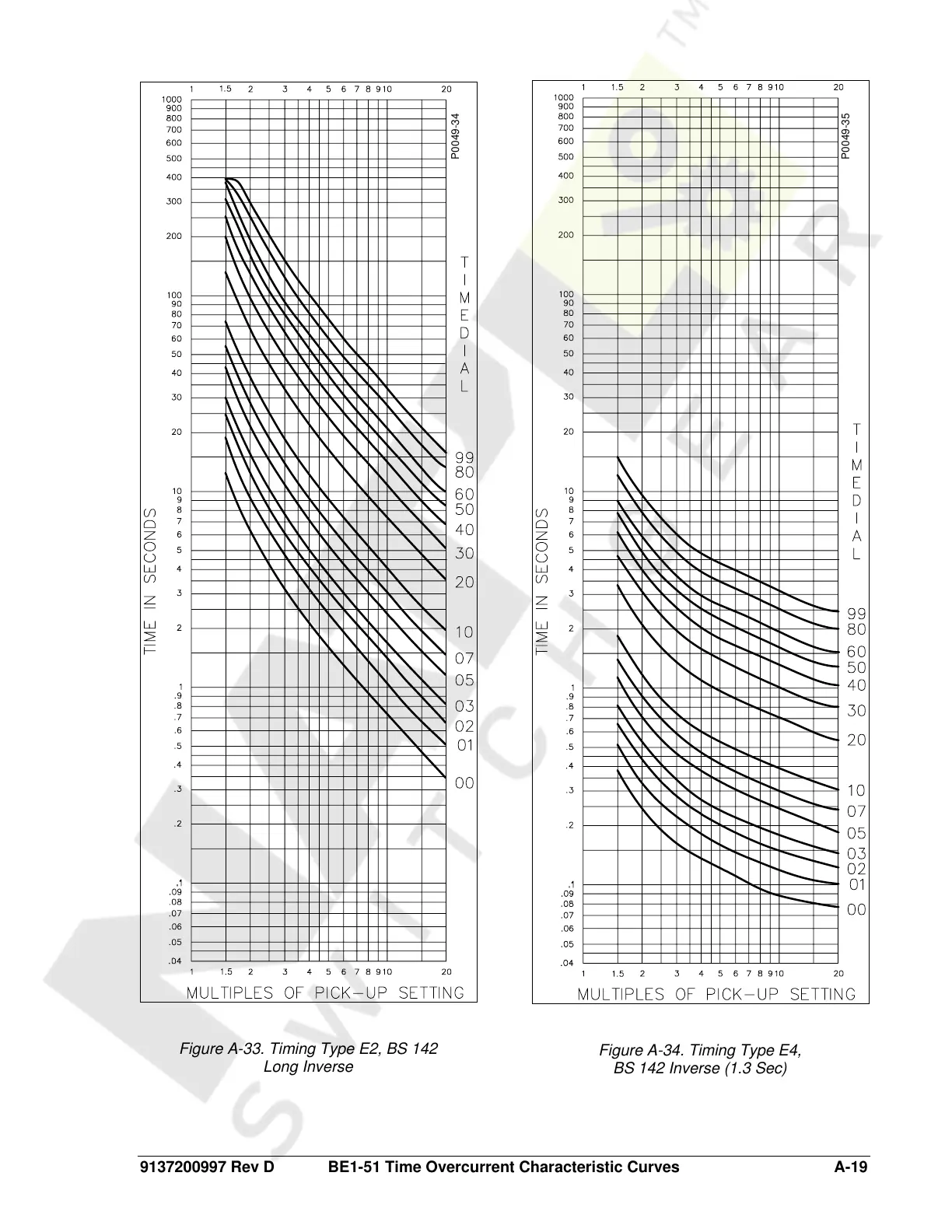

Figure A-33. Timing Type E2, BS 142
Long Inverse
P0049-35
Figure A-34. Timing Type E4,
BS 142 Inverse (1.3 Sec)
Courtesy of NationalSwitchgear.com
