A-20 BE1-51 Time Overcurrent Characteristic Curves 9137200997 Rev D
P0049-36

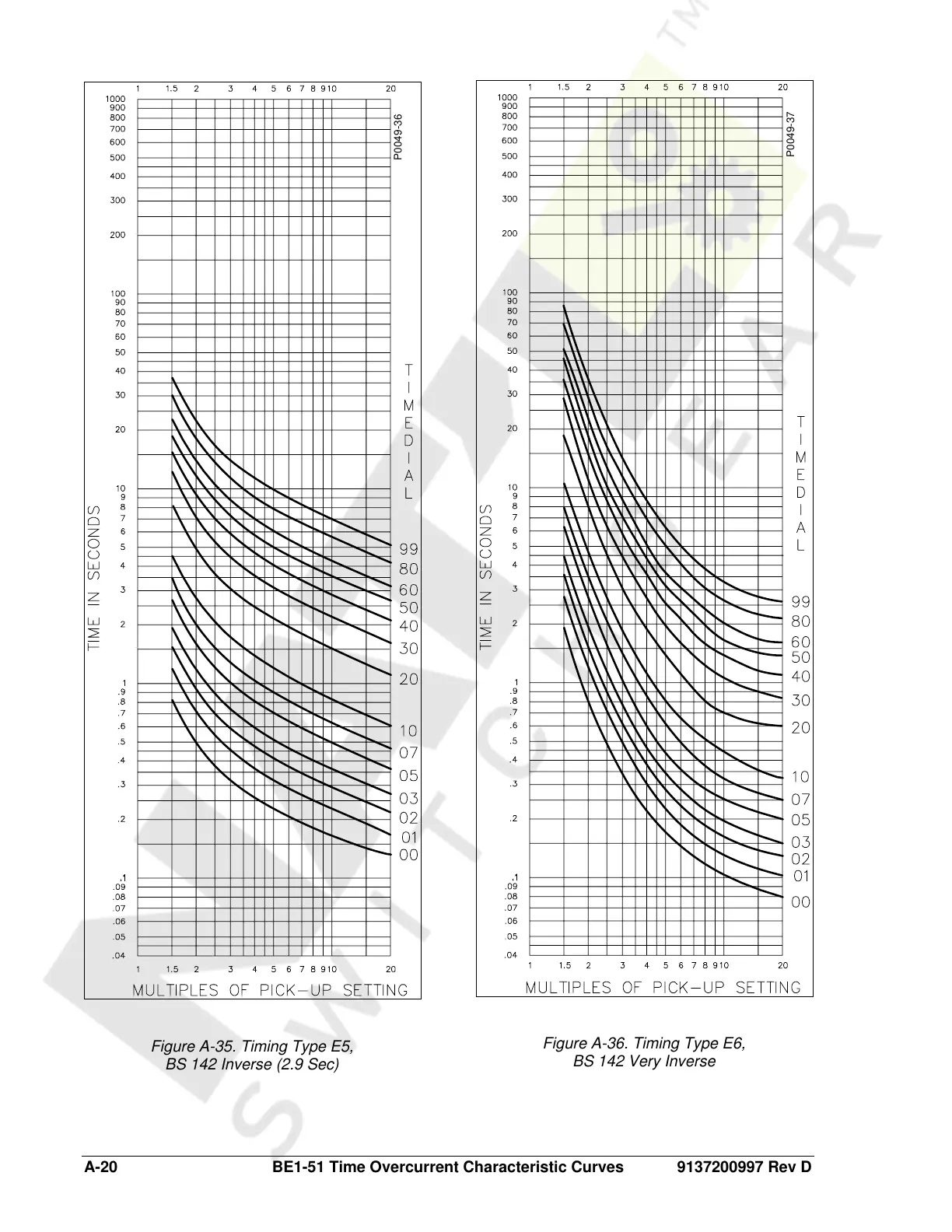

Figure A-35. Timing Type E5,
BS 142 Inverse (2.9 Sec)
P0049-37
Figure A-36. Timing Type E6,
BS 142 Very Inverse
